Power Steering Wiring Schematics: NJ1

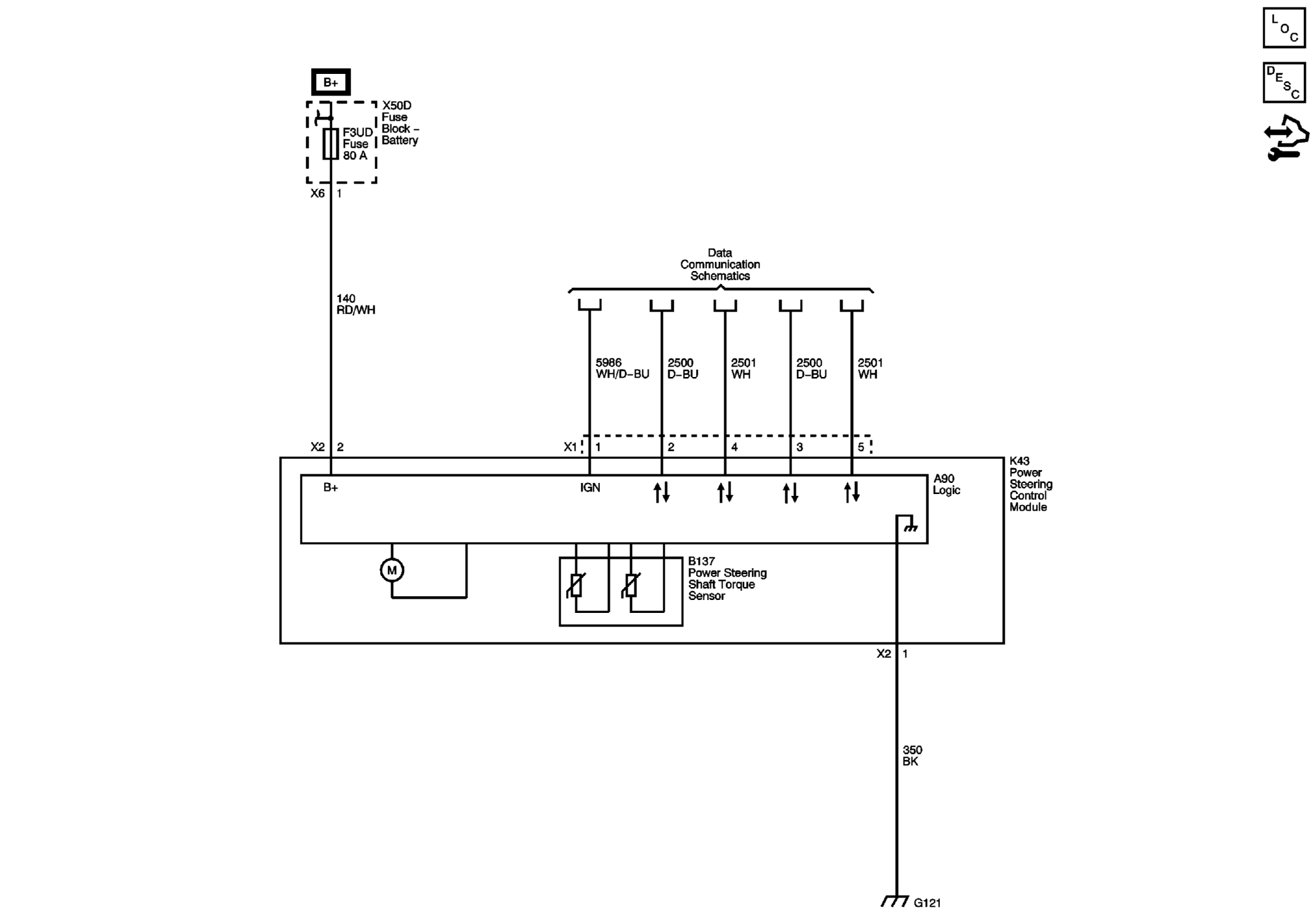

Fig 1: Power Steering (NJ1) Wiring Schematic

GM2587835

Courtesy of GENERAL MOTORS COMPANY
