Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 GMC Savana Special, 2010 GMC Savana Camper Special, 2010 GMC Savana, 2010 Chevrolet RV Cutaway, and 2010 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

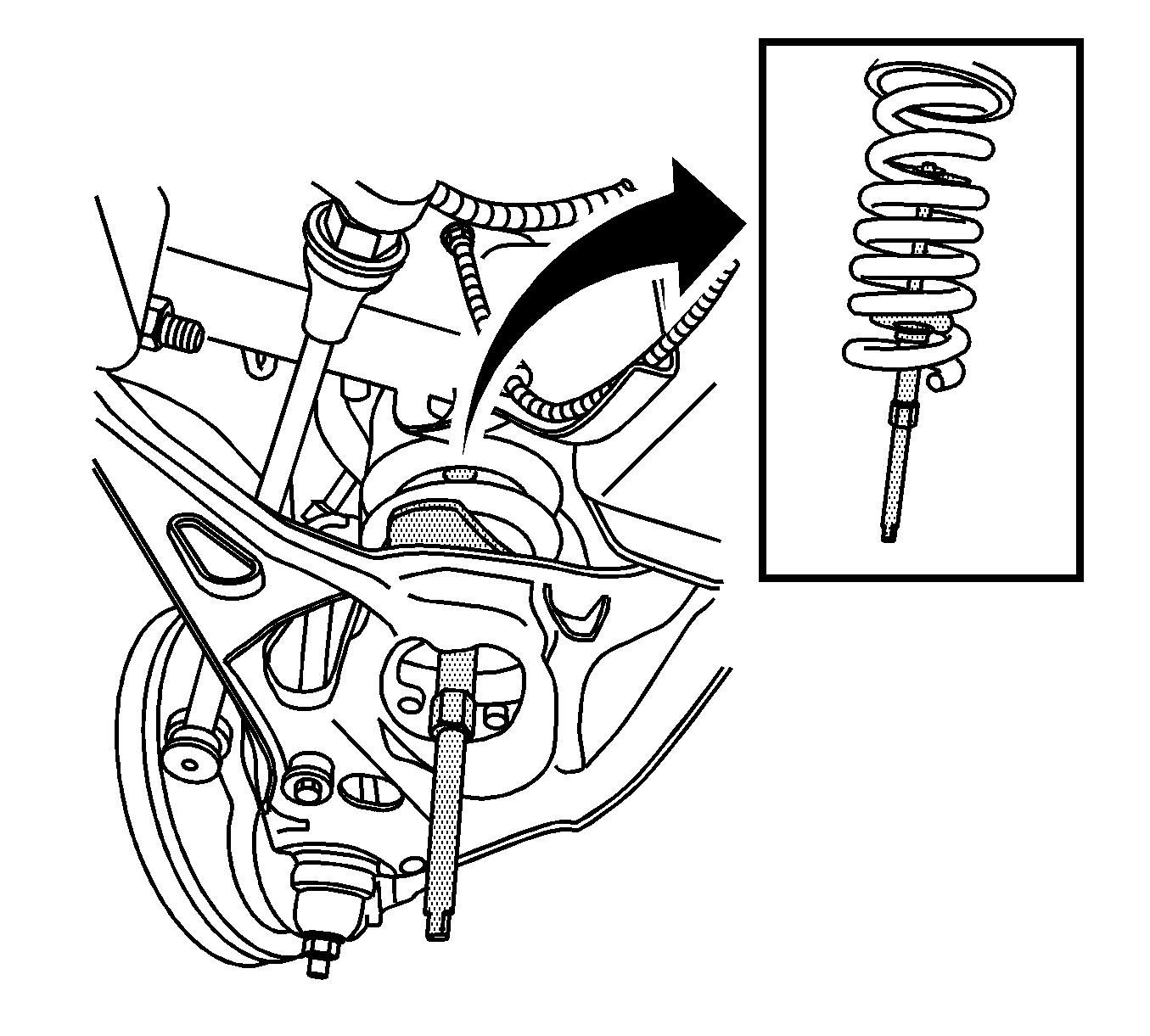

    Fig 1: Illustrating Compressing Front Coil Springs
    GM1237715Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Remove the shock absorber. Refer to Shock Absorber Replacement (4WD)  or Shock Absorber Replacement (RWD) .
  4. Remove the front stabilizer shaft link. Refer to Stabilizer Shaft Replacement .
  5. Support the lower control arm near the lower ball joint with a suitable safety jack.
  6. Using the appropriate tool, remove all tension from the lower control arm.

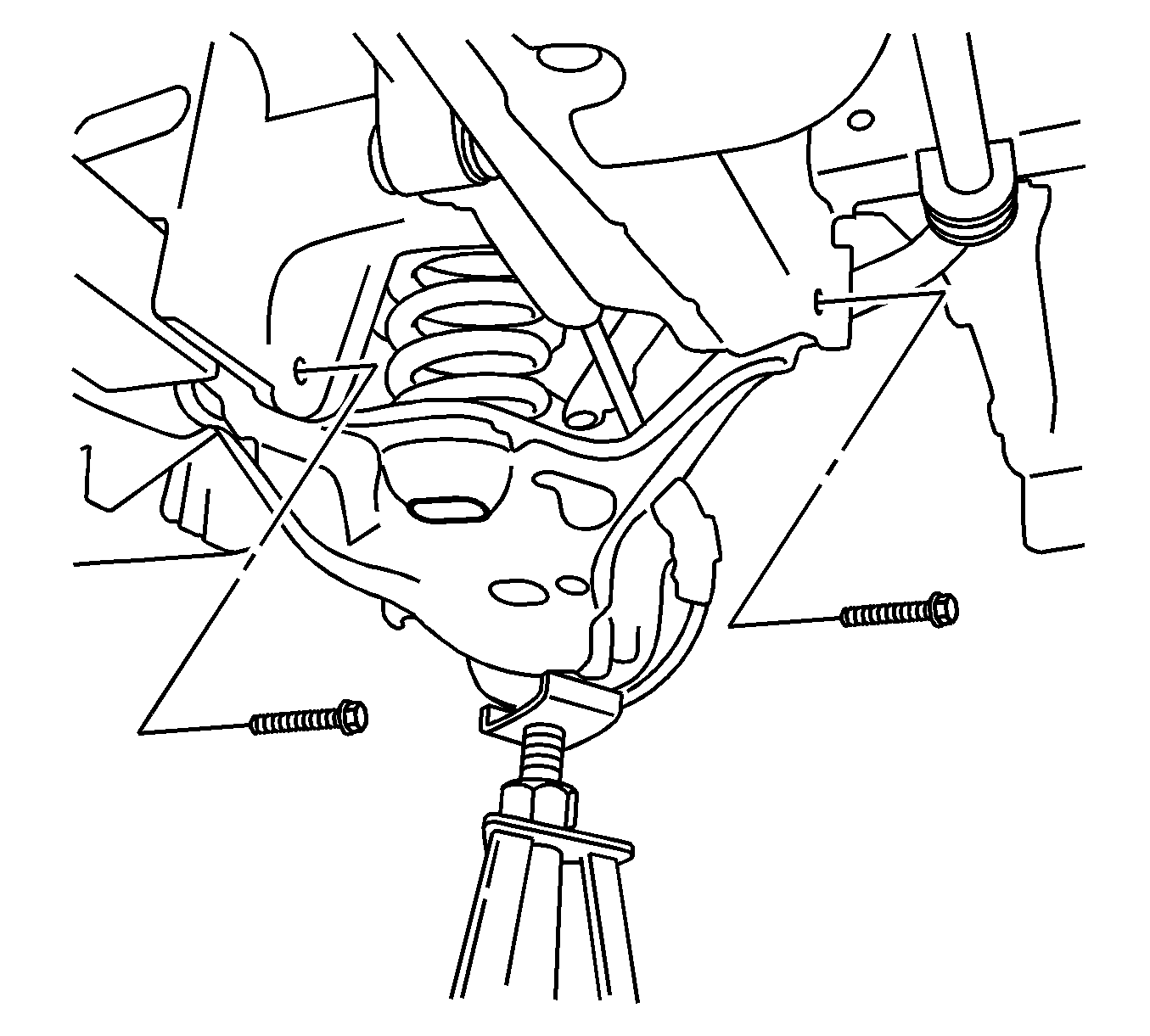

    7. Fig 2: View Of Lower Control Arm Pivot, Bolt, Retaining Nuts & Washers
    GM832343Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower control arm pivot bolt retaining nuts and washers.
  8. Remove the rear pivot bolt.
  9. Remove the front pivot bolt.

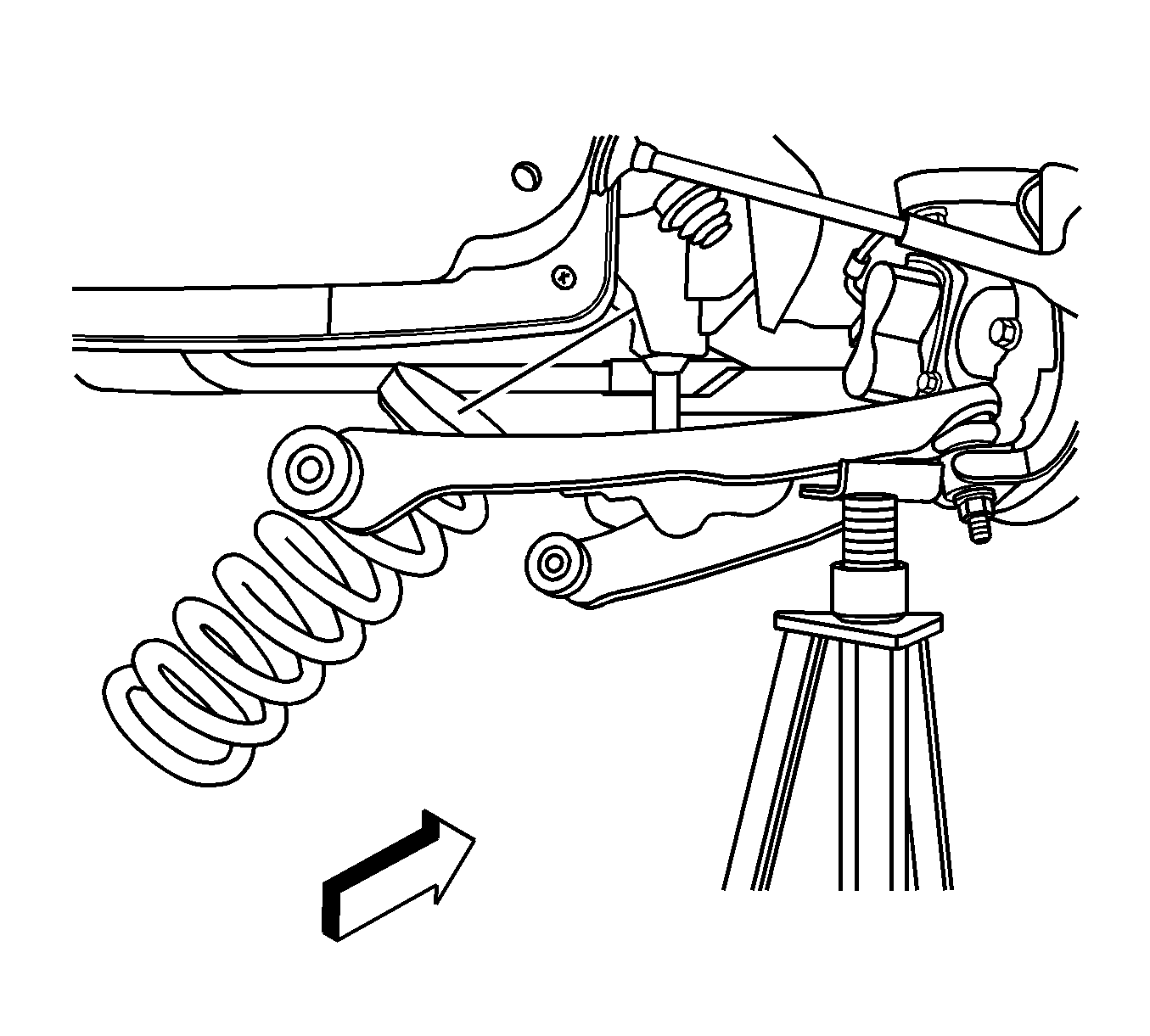

    10. Fig 3: View Of Lower Control Arm, Coil Spring & Insulator
    GM832349Courtesy of GENERAL MOTORS CORP.
  10. Lower the lower control arm and remove the coil spring and insulator.
  11. Remove spring compressor tool from the coil spring.
  12. Remove the coil spring insulator from the coil spring.
