Installation Procedure

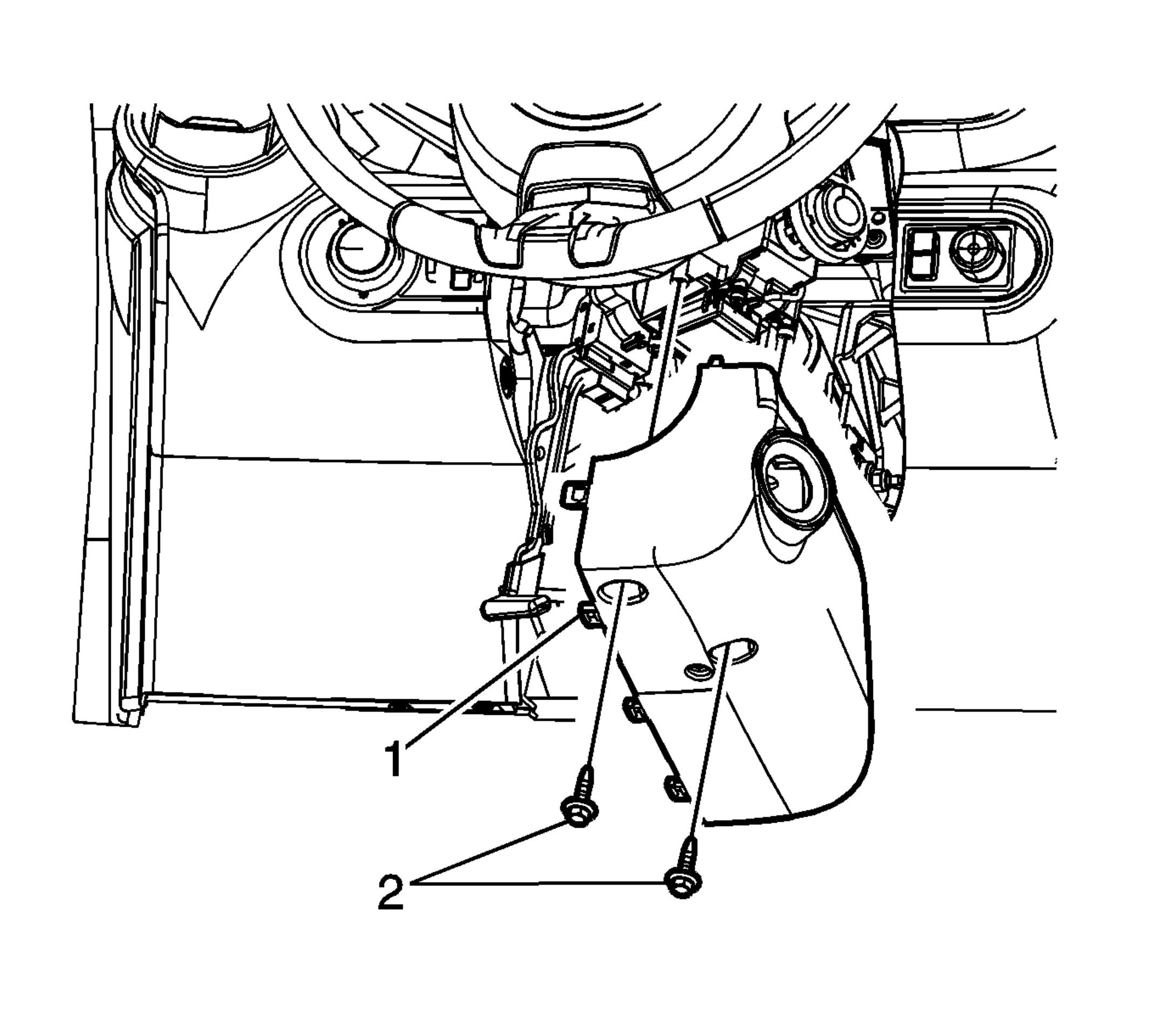

- Secure the instrument panel harness retainer to the lower right steering column shroud (1).
- Install the lower right steering column shroud to the steering column with the 2 bolts (2) and tighten to 2.5 N.m (22 lb in).

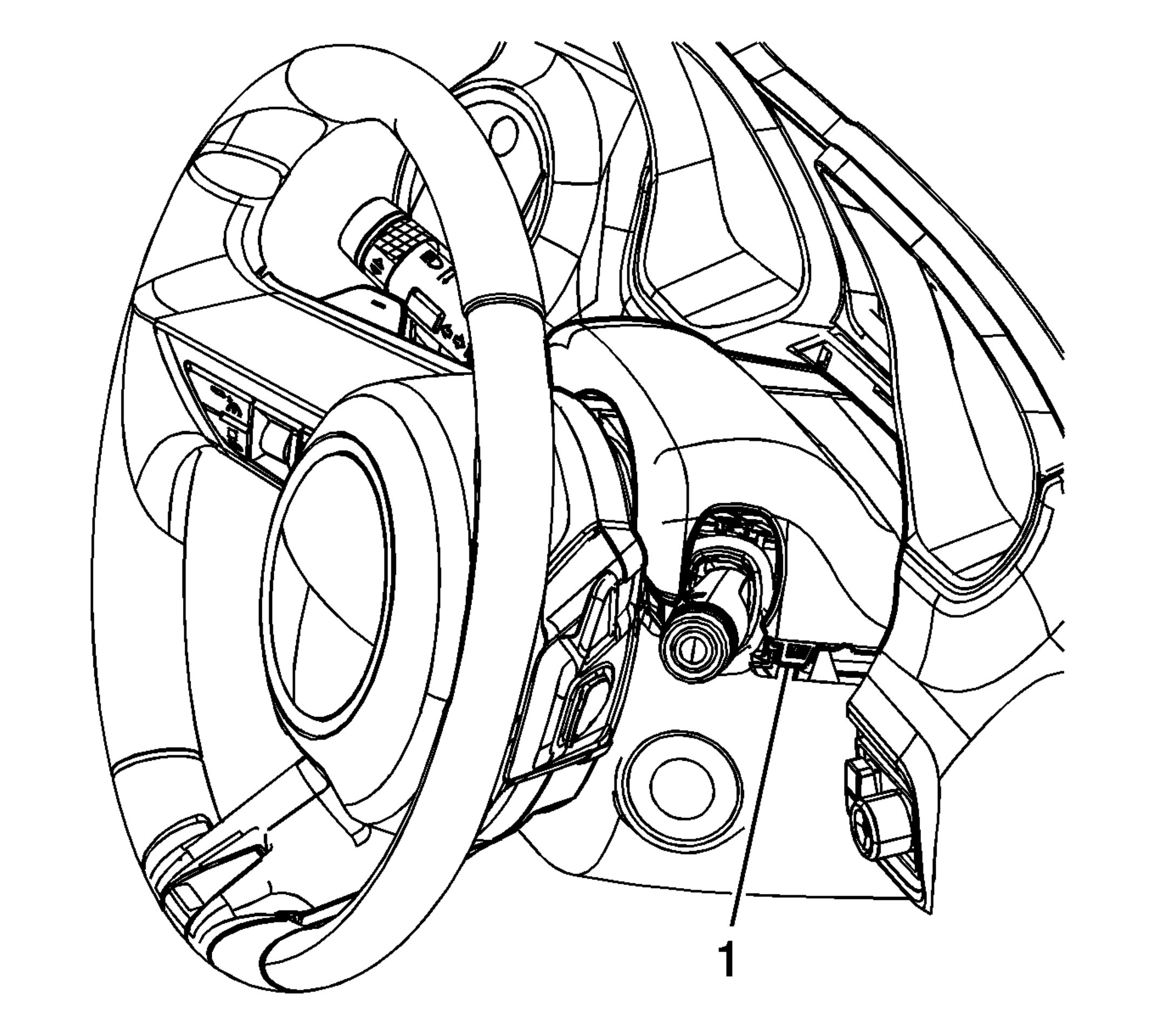

- Route the tilt and telescope lever through the opening in the lower left steering column shroud (1).

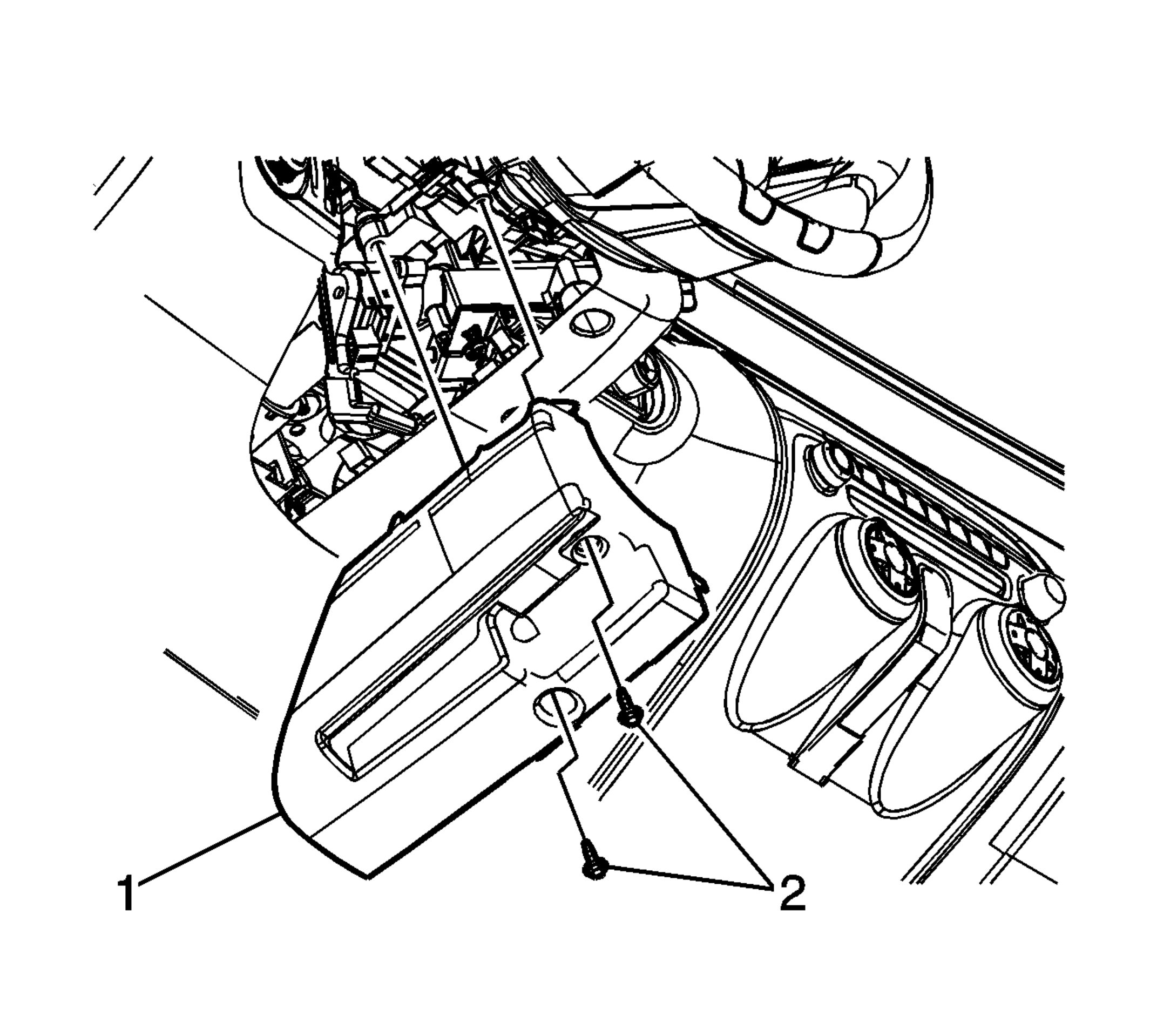

Install the lower left steering column shroud to the steering column and engage the 4 tabs.
- Install the 2 bolts (2) to the lower left steering column shroud.

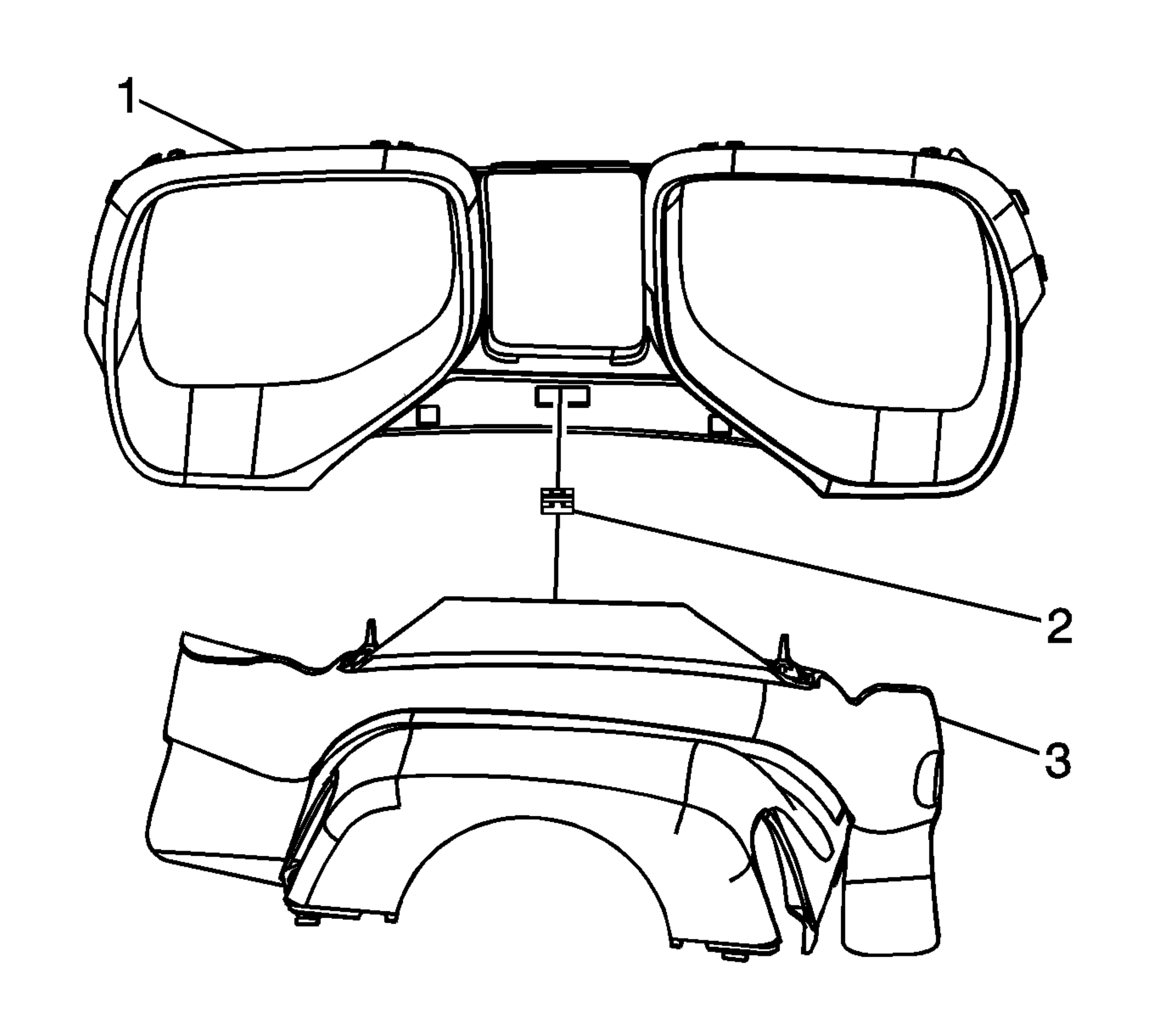

- Install the instrument panel cluster trim plate (1) to the instrument panel assembly.
- Install the upper steering column shroud (3) to the instrument panel cluster trim plate with the clip (2) and the 2 retainers.
- Install the left side of the upper steering column shroud to the steering column with the 2 tabs.
- Install the right side of the upper steering column shroud to the steering column with the 2 tabs.

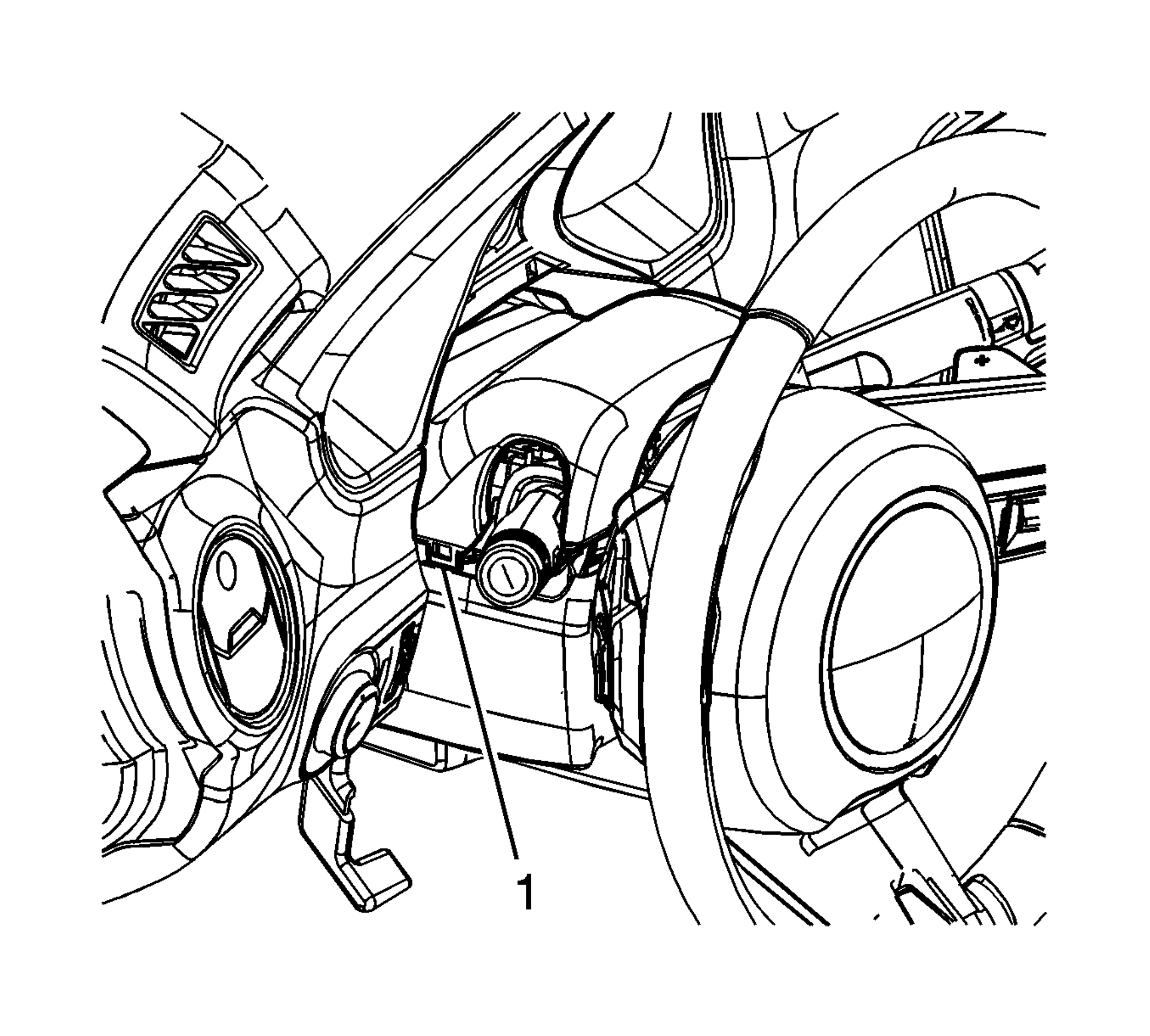

- Install the left side of the upper steering column shroud to the steering column with the 1 tab (1).
- Install the right side of the upper steering column shroud to the steering column with the 1 tab (1).
- Raise the tilt and telescope lever to the secured position.
CAUTION:
Refer to Fastener Caution .
