Moveable Window Schematics

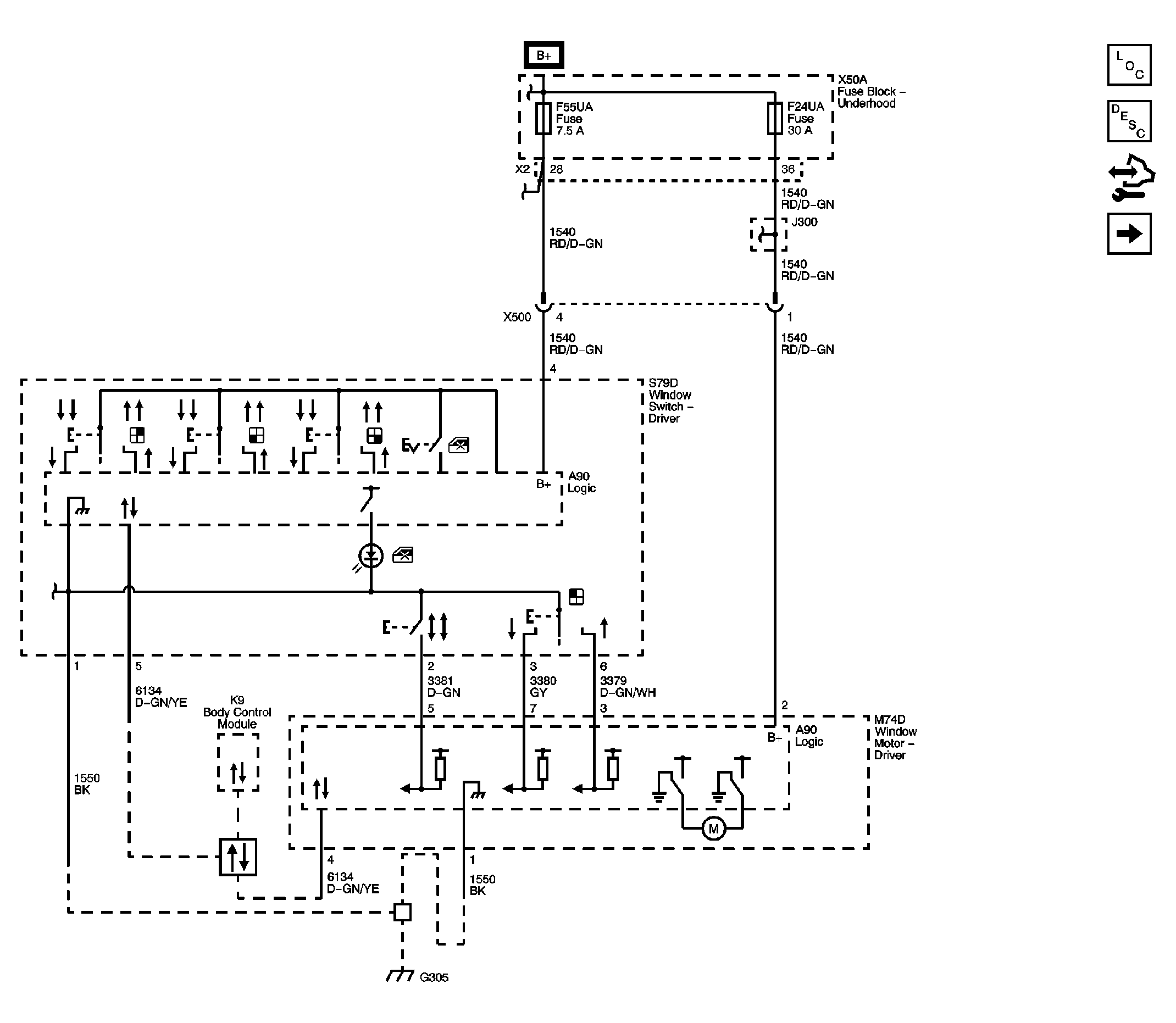

Fig 1: Driver Door Window Schematics (AXG)
GM2458093Courtesy of GENERAL MOTORS CORP.

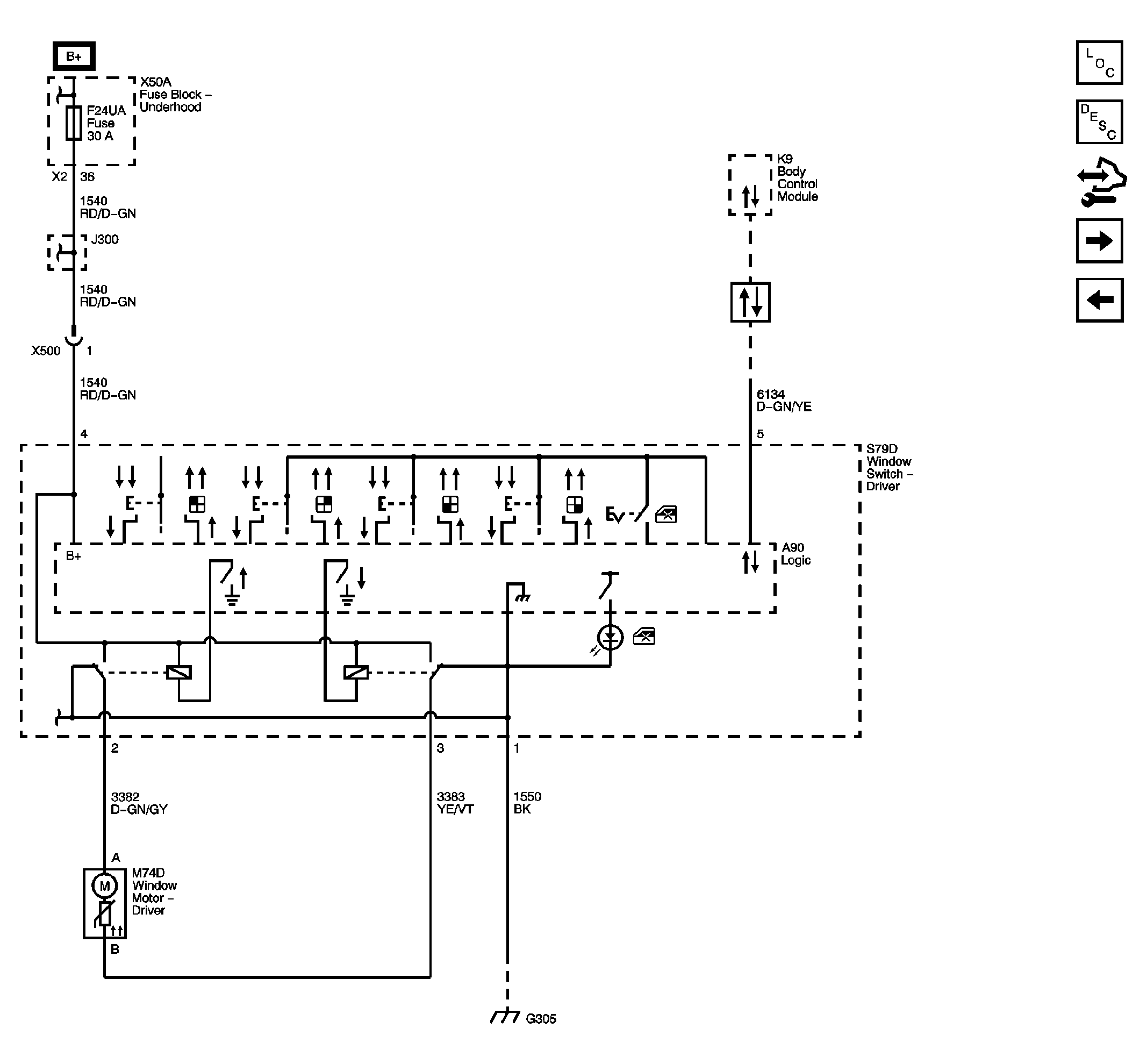

Fig 2: Driver Door Window Schematics (AEC)
GM2458094Courtesy of GENERAL MOTORS CORP.

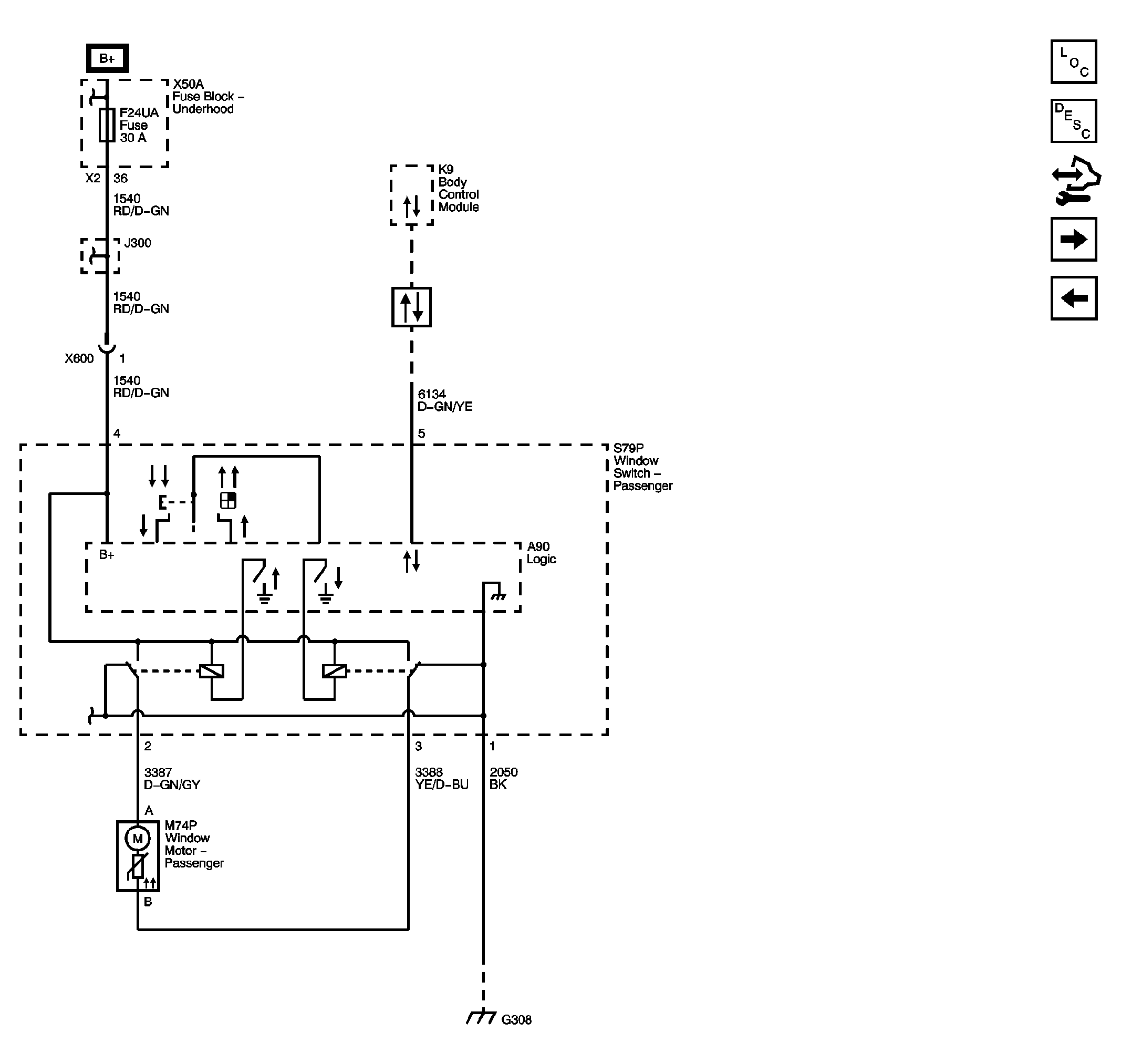

Fig 3: Passenger Door Window Schematics
GM2458095Courtesy of GENERAL MOTORS CORP.

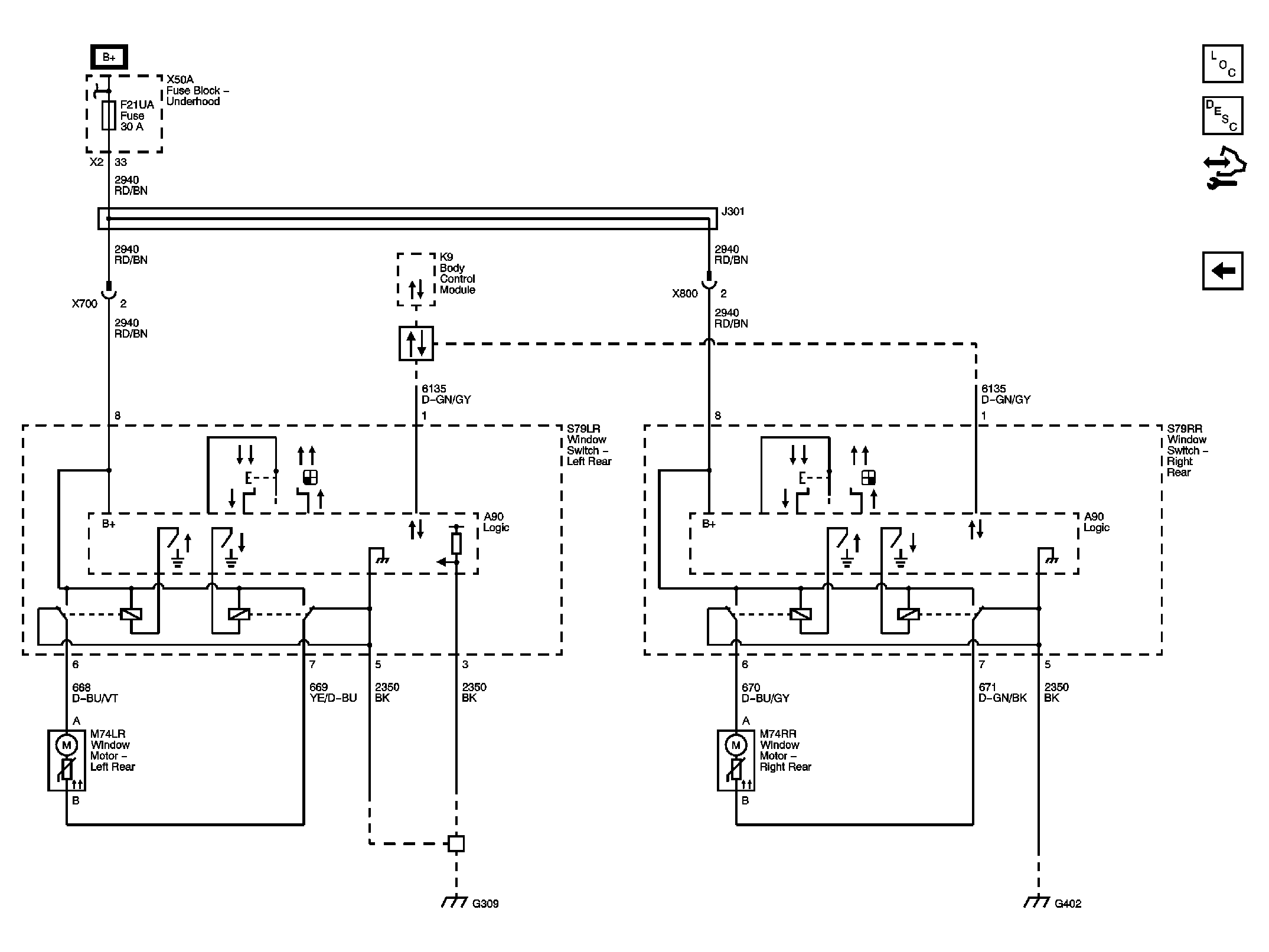

Fig 4: Rear Doors Window Schematics
GM2458096Courtesy of GENERAL MOTORS CORP.
