Immobilizer System Wiring Schematics

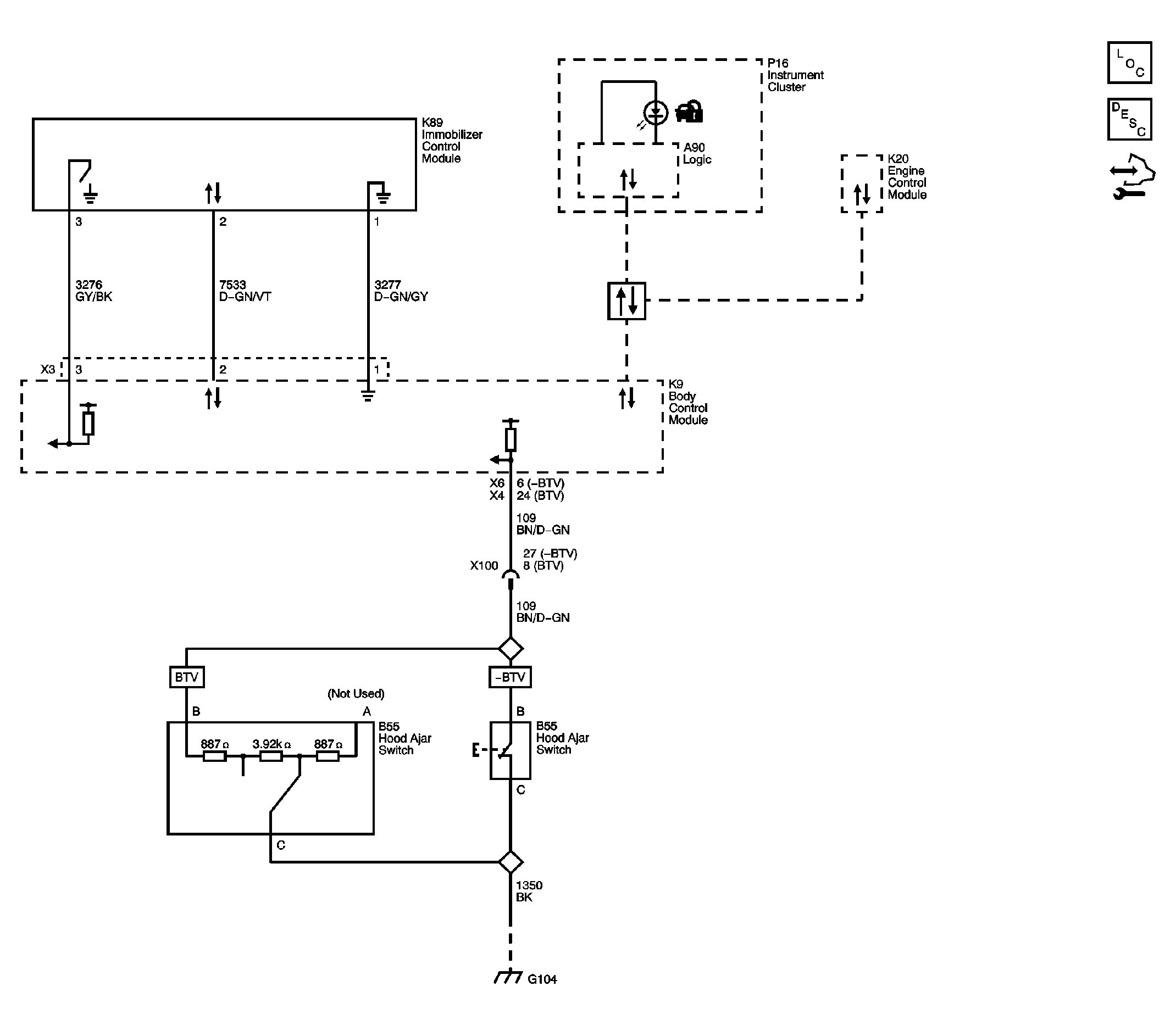

Fig 1: Immobilizer System Wiring Schematic

GM2461663

Courtesy of GENERAL MOTORS CORP.
