Cruise Control System Wiring Schematics

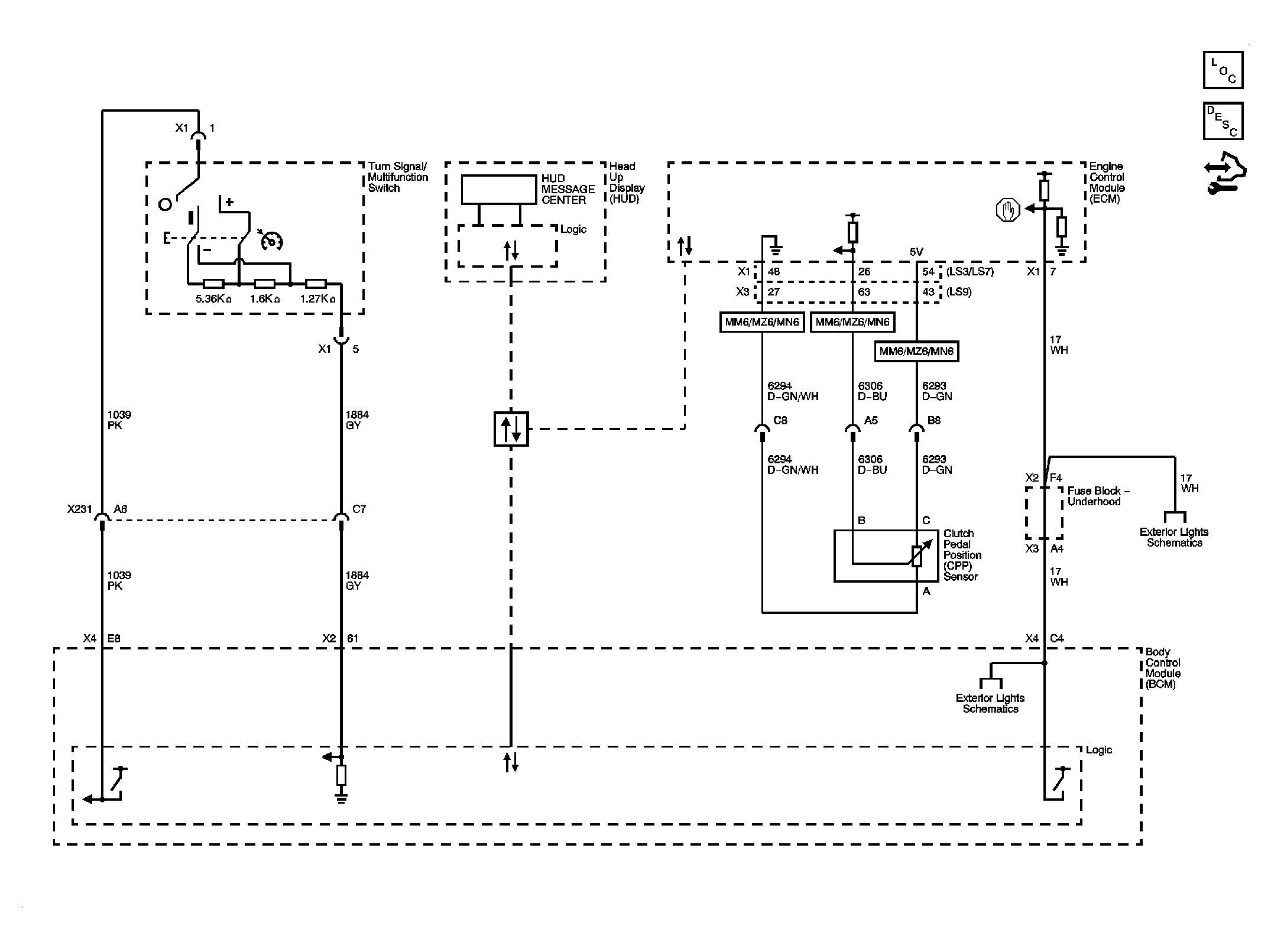

Fig 1: Cruise Control System Wiring Schematic

GM2400561

Courtesy of GENERAL MOTORS CORP.
