Rear License Plate Lamp Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

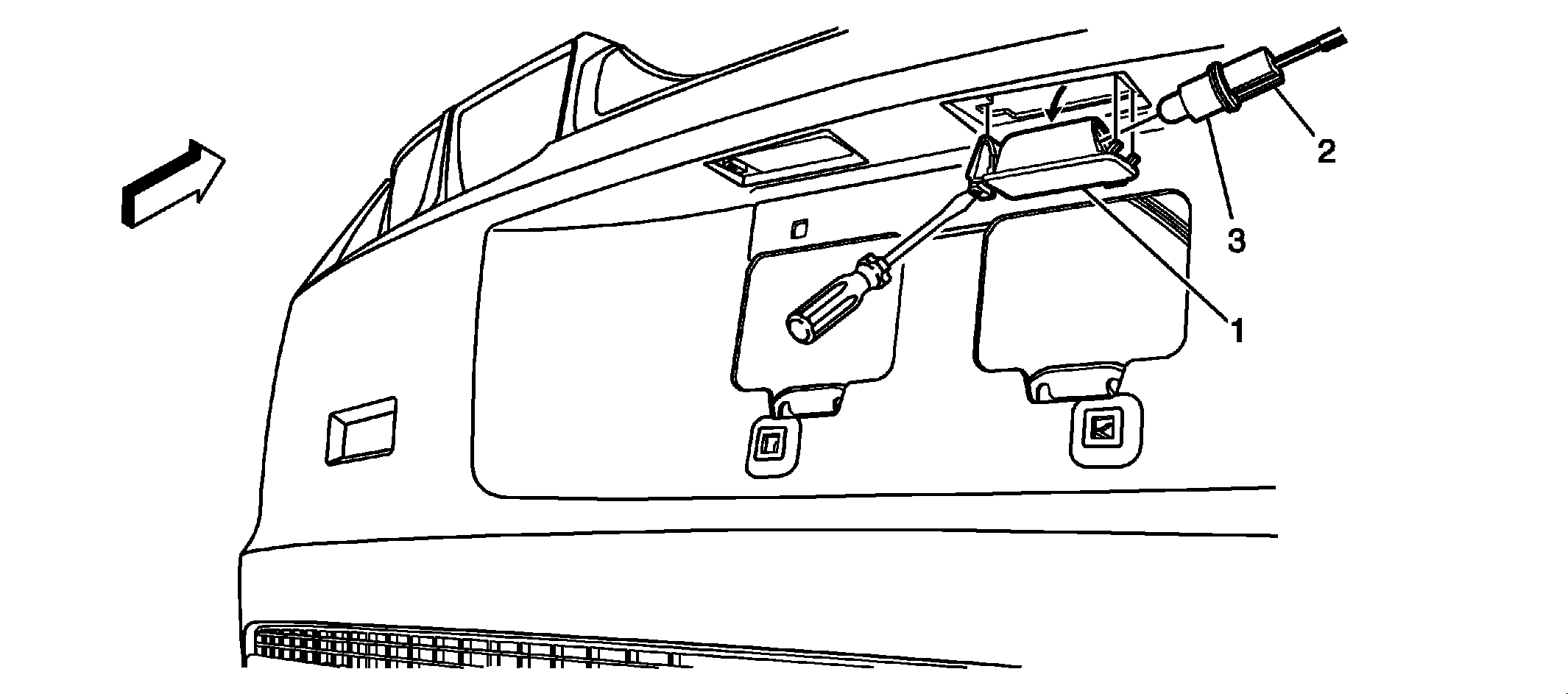

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Using a small flat-bladed tool, depress the inner license plate lamp tab and rotate downward in order to remove the lamp from the rear bumper fascia. |
|
| 1 | License Plate Lamp |
| 2 | License Plate Lamp Electrical Socket Connector |
| 3 | License Plate Lamp Bulb Tip: Replace the bulb as needed. |
