Moveable Window Schematics

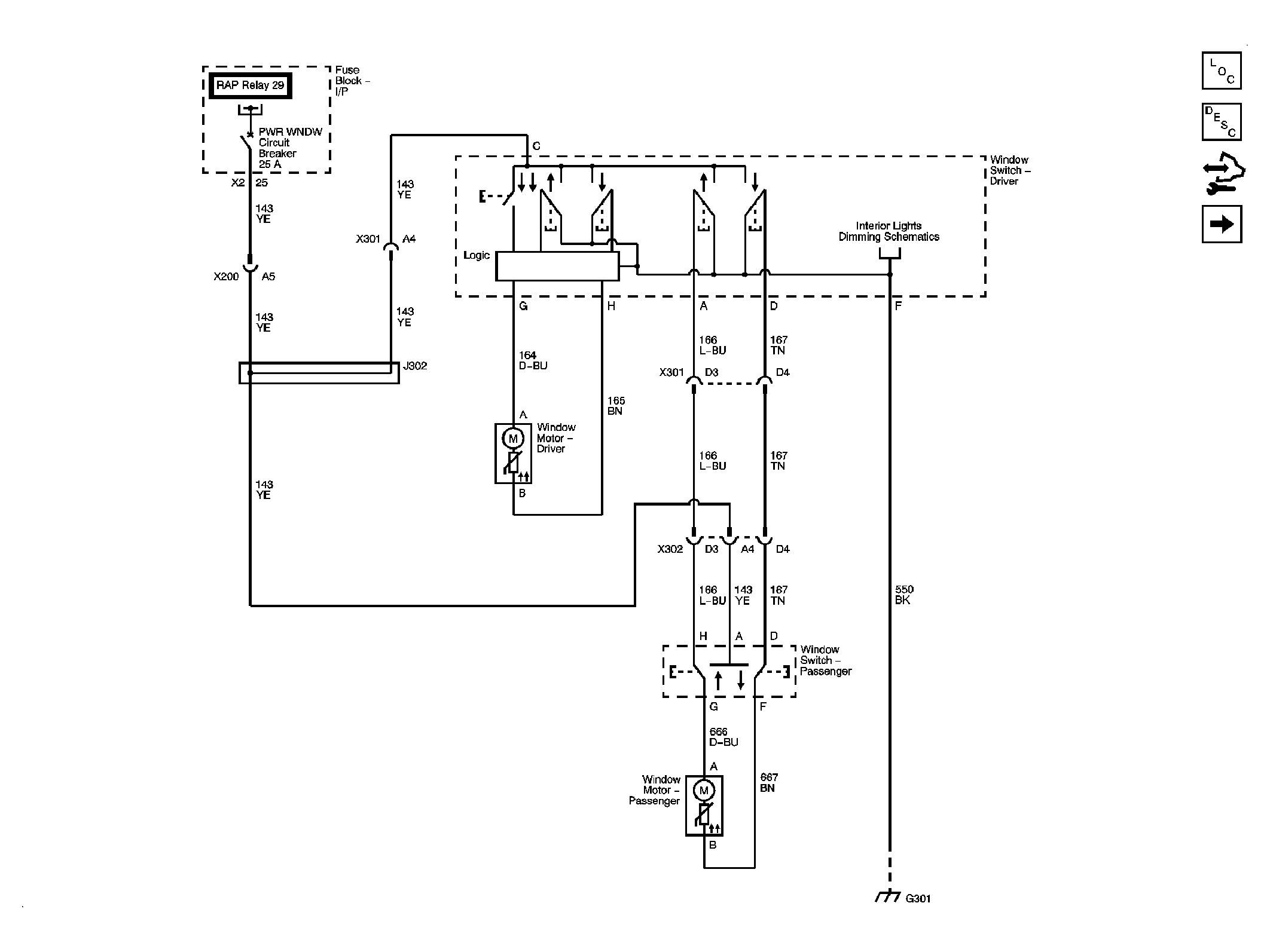

Fig 1: Front Door Windows Schematic

GM2060326

Courtesy of GENERAL MOTORS CORP.

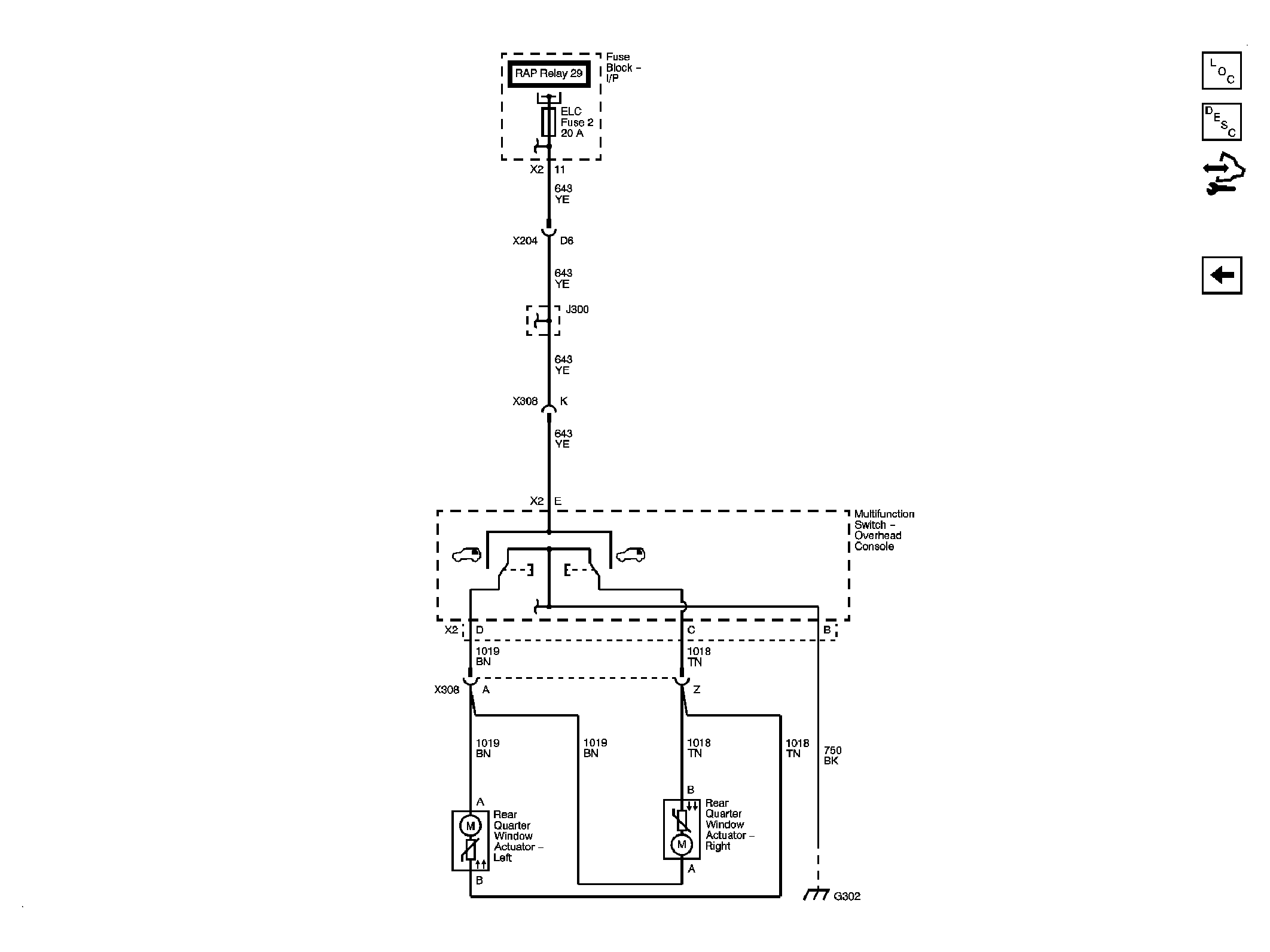

Fig 2: Rear Quarter Windows Schematic

GM2060329

Courtesy of GENERAL MOTORS CORP.
