Radiator Support Bracket Replacement

WARNING: This page is about a different car, the 2011 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

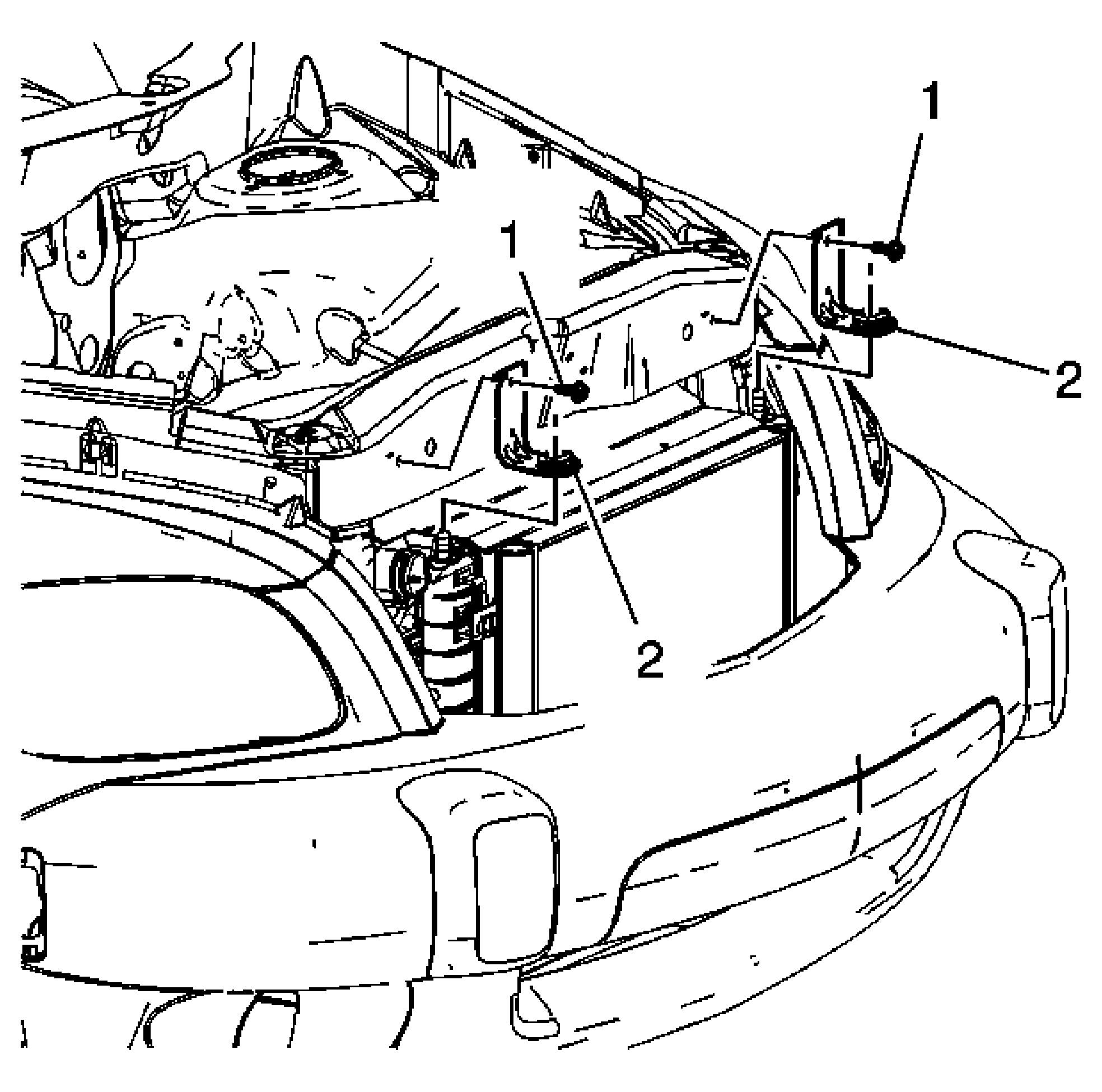

Fig 1: Radiator Support Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radiator Bracket Assembly Bolt - Upper CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Radiator Bracket - Upper
