Tail Lamp Replacement

WARNING: This page is about a different car, the 2007 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

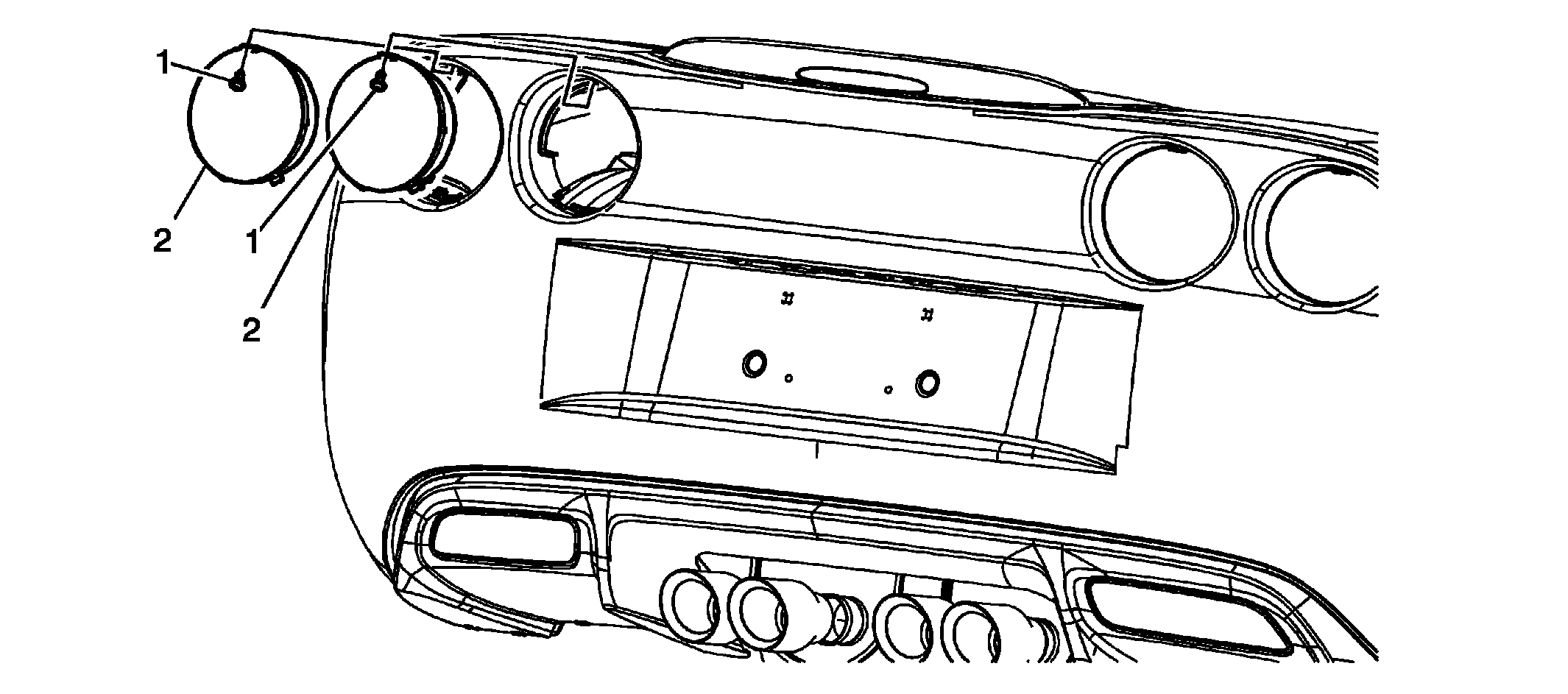

Fig 1: Tail Lamp Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail Lamp Assembly Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: Tighten the screws to 2 N.m (18 lb in)
2	Tail Lamp Assembly Tip: Rotate the top of the lens rearward in order to move the lamp far enough to disconnect the electrical connectors.
