Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

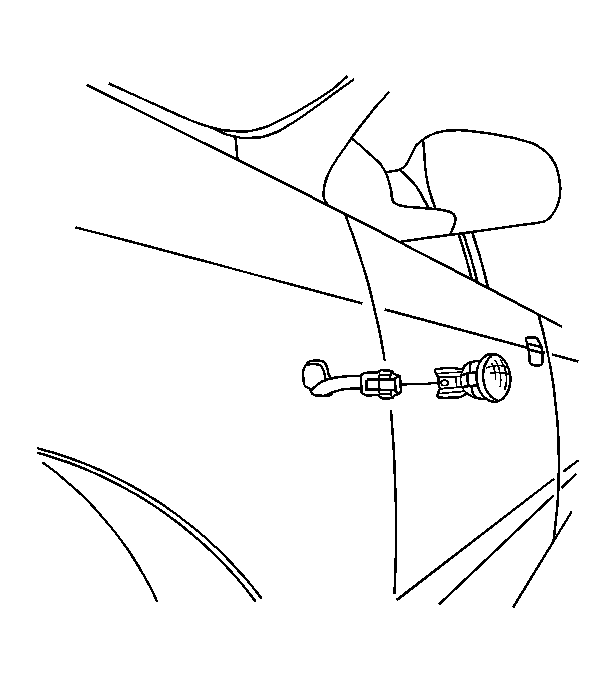

    Fig 1: View Of Repeater Lamp And Electrical Connector
    GM1308856Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the repeater lamp.
  3. Connect the negative battery cable.
