Installation Procedure

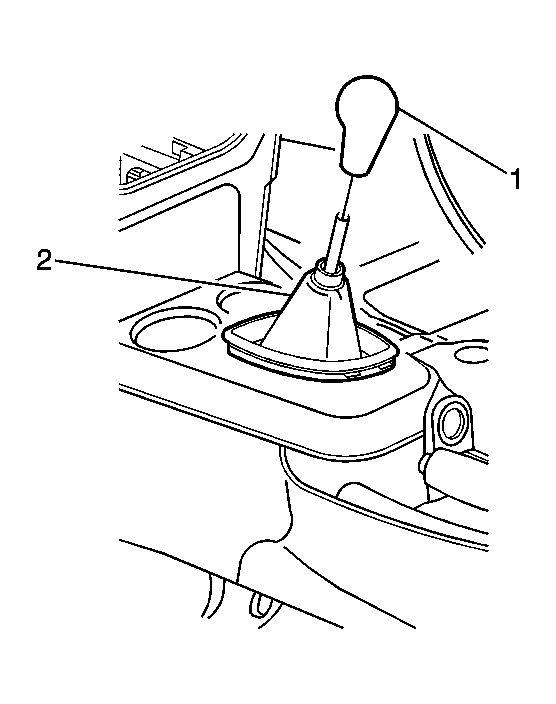

    Fig 1: View Of Shift Control Knob & Boot
    GM891512Courtesy of GENERAL MOTORS CORP.
  1. Install the shift control knob (1) to the shift control assembly.
  2. Install the shift control boot collar (2) to the shift control knob (1) and twist 1/4 turn to lock.
