Wiper Drive System Module Replacement

WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

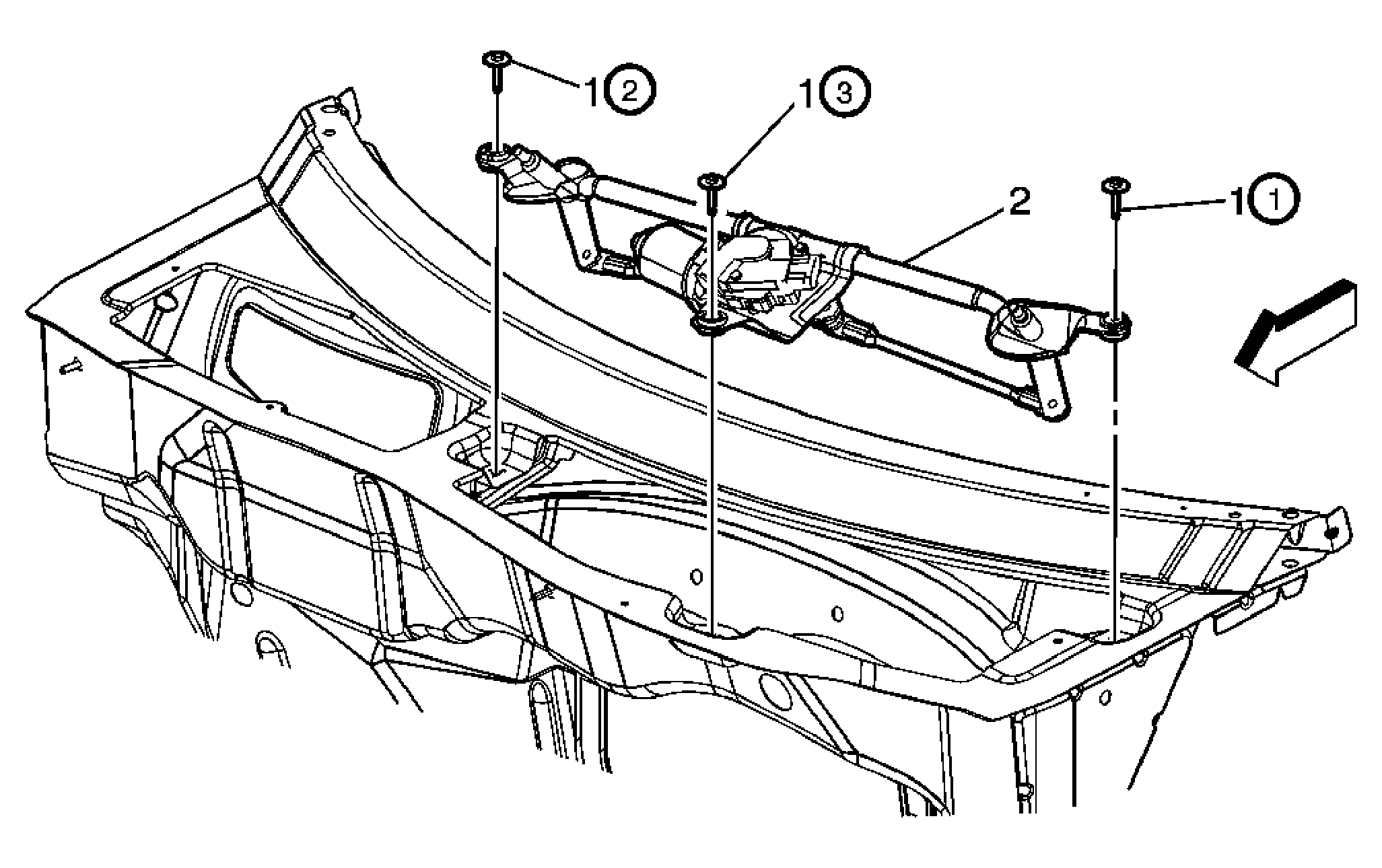

Fig 1: Wiper Drive System Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the wiper arm assemblies. Refer to Windshield Wiper Arm Replacement . Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
1	Bolts, Front Window Wiper Motor (Qty: 3) Tighten: 7 N.m (62 lb in)
2	Module, Windshield Wiper System Tip: Disconnect the wiper motor electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the wiper arm assemblies. Refer to Windshield Wiper Arm Replacement .
Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .

Bolts, Front Window Wiper Motor (Qty: 3)

Tighten: 7 N.m (62 lb in)

Module, Windshield Wiper System
Tip: Disconnect the wiper motor electrical connector.
