Removal Procedure

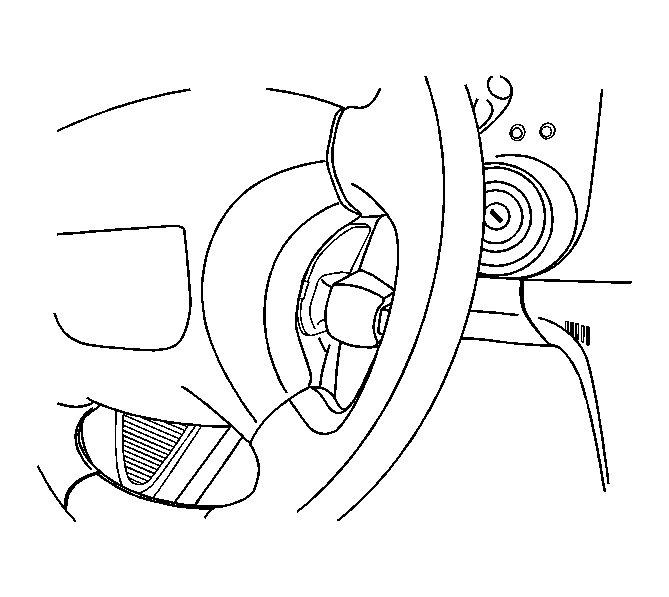

    Fig 1: Identifying Cruise Control Switch
    GM1655740Courtesy of GENERAL MOTORS CORP.
  1. Remove the cruise control switch cover.
  2. Remove the audio remote controller. Refer to Audio Systems
  3. Remove the SIR module. Refer to Supplemental Inflatable Restraints (SIR)
  4. Remove the cruise control switch.
