UNDERHOOD Fuse Block
NOTE:
Underhood fuse block is located in engine compartment next to left strut tower.

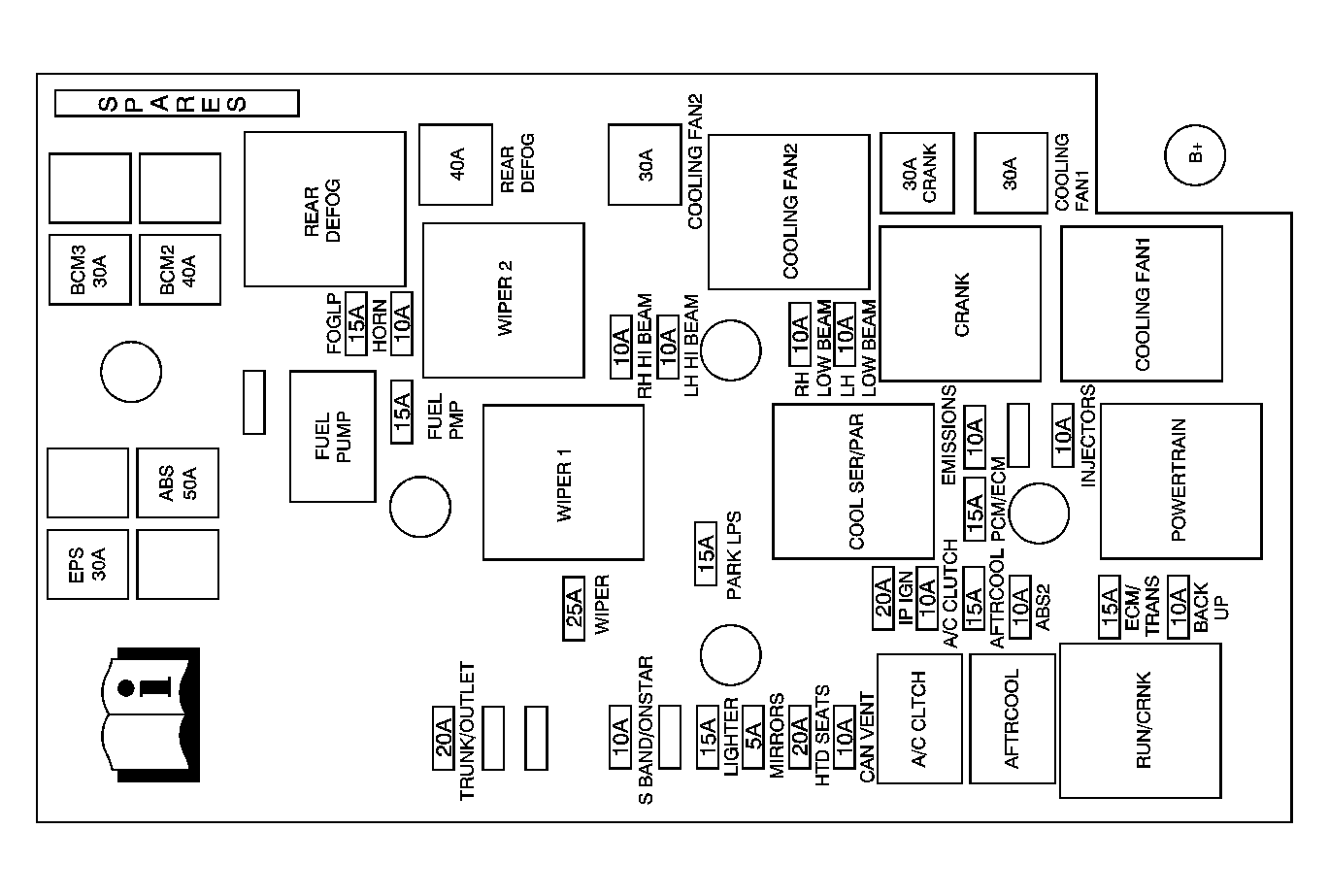

Fuse Block - Underhood Fuse And Relay Identification Legend
| Fuse And Relay Description | Rating | Circuits |
|---|---|---|
| EPS Fuse | 60A | Electric Power Steering Control Module |
| ABS Fuse | 50A | Electronic Brake Control Module (EBCM) |
| BCM 2 Fuse | 40A | Body Control Module (BCM) |
| BCM 3 Fuse | 30A | Body Control Module (BCM) |
| HTD SEATS Fuse | 20A | Heated Seat Module - Driver, Heated Seat Module - Passenger |
| S BAND/ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1), Digital Radio Receiver (U2K) |
| LIGHTER Fuse | 15A | Cigar Lighter (DT4), Data Link Connector (DLC) |
| CAN VENT Fuse | 10A | Evaporative Emission (EVAP) Canister Vent Soleniod |
| MIRRORS Fuse | 5A | Outside Rearview Mirror Switch (DG7) |
| COOLING FAN1 Fuse | 30A | Cooling Fan 1 Relay |
| COOLING FAN2 Fuse | 30A | Cooling Fan 2 Relay |
| HORN | 10A | Horn |
| CRANK Fuse | 30A | Crank Relay |
| PARK LPS Fuse | 15A | Lamp Assembly-LF, Lamp Assembly-RF Stop/Tail and Turn Signal Lamp-Left,Body Control Module (BCM), Side Marker Lamp-Left, Side Marker Lamp-Right, License Lamp, Stop/Tail and Turn Signal Lamp-Right |
| RH LOW BEAM Fuse | 10A | Lamp Assembly - RF |
| LH LOW BEAM Fuse | 10A | Lamp Assembly - LF |
| RH HI BEAM Fuse | 10A | Lamp Assembly - RF |
| LH HI BEAM Fuse | 10A | Lamp Assembly - LF |
| WIPER Fuse | 25A | Wiper Relay |
| I/P IGN Fuse | 20A | Body Control Module |
| BACK UP Fuse | 10A | Park Neutral Position (PNP) Switch (MN5), Back Up Lamp Switch (L61/M86) |
| ABS 2 Fuse | 10A | Electric Brake Control Module (EBCM) |
| ECM/TRANS Fuse | 15A | Supercharger Boost Control Solenoid (LSJ), Transmission Control Module (TCM), Engine Control Module (ECM) (L61), Powertrain Control Module (PCM) (LSJ) |
| TRUNK/OUTLET Fuse | 20A | Trunk Release Relay, Auxiliary Power Outlet- Console |
| FUEL PUMP Fuse | 15A | Fuel Pump and Sender Assembly |
| EMISSIONS Fuse | 10A | Heated Oxygen Sensor (HO2S) Sensor 1, Heated Oxygen Sensor (HO2S) Sensor 2, Evaporative Emission (EVAP) Canister Purge Solenoid, Clutch Pedal Position (CPP) Switch, Mass Air Flow (MAF). Inlet Air Temperature (IAT) Sensor |
| INJECTORS Fuse | 10A | Fuel Injector 1, Fuel Injector 2, Fuel Injector 3, Fuel Injector 4, Ignition Coil/Module 1 (LSJ), Ignition Coil/Module 2 (LSJ), Ignition Coil/Module 3 (LSJ), Ignition Coil/Module 4 (LSJ), Ignition Control Module (ICM) (L61) |
| PCM/ECM Fuse | 15A | Engine Control Module (ECM) (L61), Powertrain Control Module (PCM) (LSJ) |
| AFTRCOOL Fuse | 15A | After Cooling Pump (LSJ) |
| A/C CLUTCH Fuse | 10A | A/C Compressor Clutch (C60) |
| REAR DEFOG Fuse | 40A | Rear Defog Relay |
| FOG LP Fuse | 15A | Fog Lamp - LF, Fog Lamp - RF |
| COOLING FAN 1 Relay | - | Cooling Fan |
| COOL SER/PAR Relay | - | Cooling Fan (LSJ) |
| COOLING FAN 2 Relay | - | Cooling Fan |
| CRANK Relay | - | Starter |
| WIPER 1 Relay | - | WIPER 2 relay, G101 |
| WIPER 2 Relay | - | Windshield Wiper Motor |
| RUN/CRANK Relay (L61) | - | ECM/TRANS Fuse, I/P IGN Fuse, BACK UP Fuse, ABS Fuse, |
| RUN/CRANK Relay (LSJ) | - | I/P Fuse, FUTURE Fuse, BACK UP Fuse, ABS Fuse, ECM/TRANS Fuse |
| FUEL PUMP Relay | - | Fuel Pump and Sender Assembly |
| POWERTRAIN Relay (LSJ) | - | EMISSION Fuse, INJECTOR Fuse ECM Fuse, PCM Fuse |
| AFTRCOOL Relay (LSJ) | - | AFTR COOL Fuse |
| A/C CLUTCH Relay | - | A/C CLUTCH Fuse |
| REAR DEFOG Relay | - | Rear window defogger grid |
