Installation Procedure

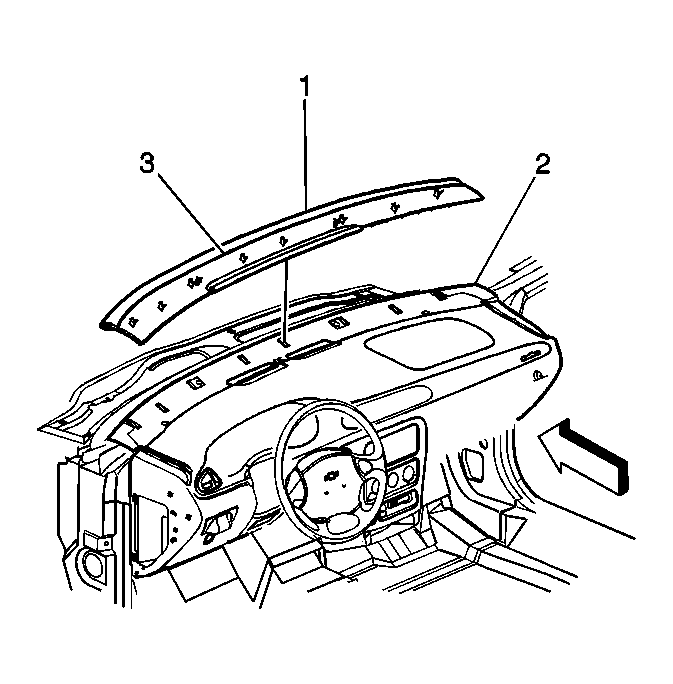

    Fig 1: View of Upper Windshield Garnish Moldings
    GM291460Courtesy of GENERAL MOTORS CORP.
  1. Install the grille (1) to the instrument panel (2) by pushing downward.
  2. Install the garnish moldings refer to Garnish Molding Replacement - Upper Pillar in Interior Trim.
