ABS Schematics

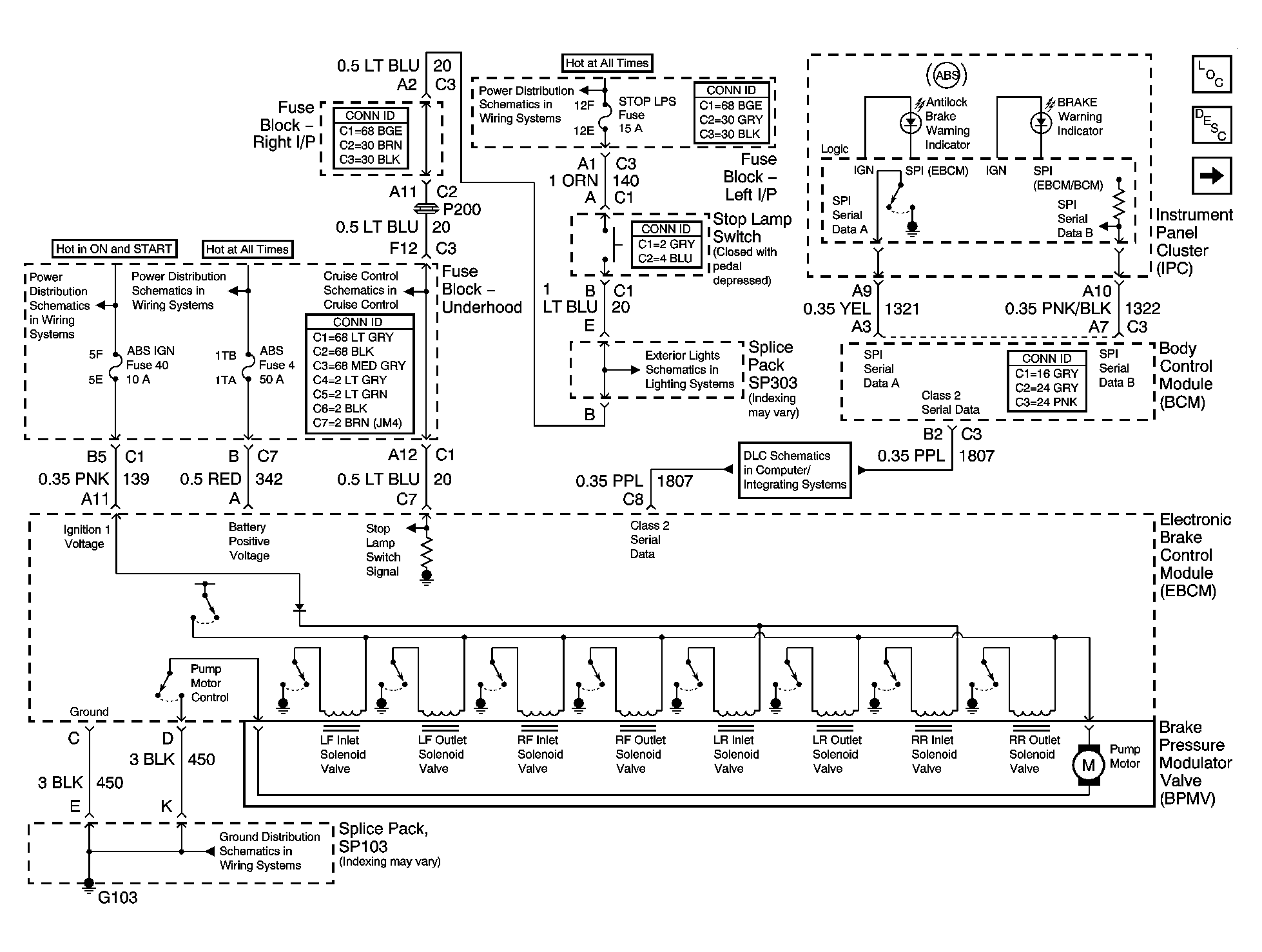

Fig 1: EBCM, PWR, GND & BPMV Schematic

GM1504250

Courtesy of GENERAL MOTORS CORP.

Fig 2: Wheel Speed Sensor Schematic

GM783330

Courtesy of GENERAL MOTORS CORP.
