Installation Procedure

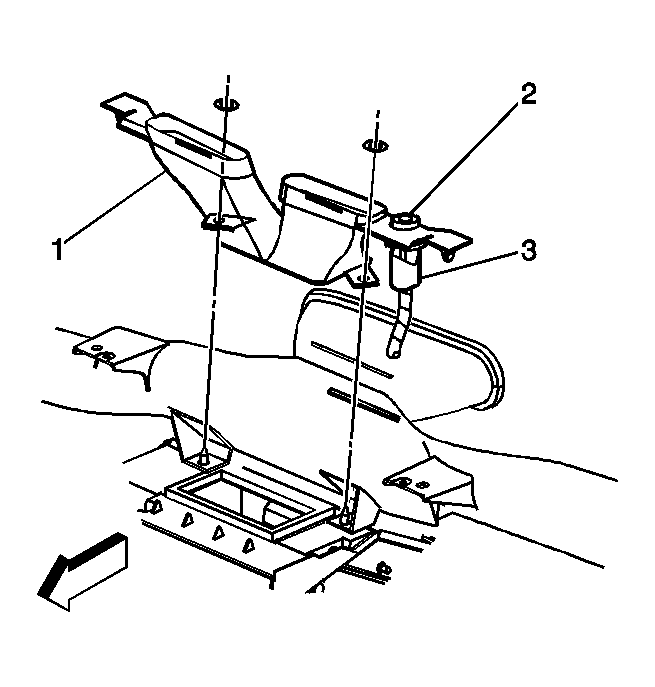

    Fig 1: View Of Ambient Light Sensor & Defrost Duct
    GM787516Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (3) to the ambient light sensor (2).
  2. Install the ambient light sensor (2) to the defrost duct (1), then rotate a 1/4-turn to secure the sensor.
  3. Push back the IP carrier to the original position. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages, and Console.
