Installation Procedure

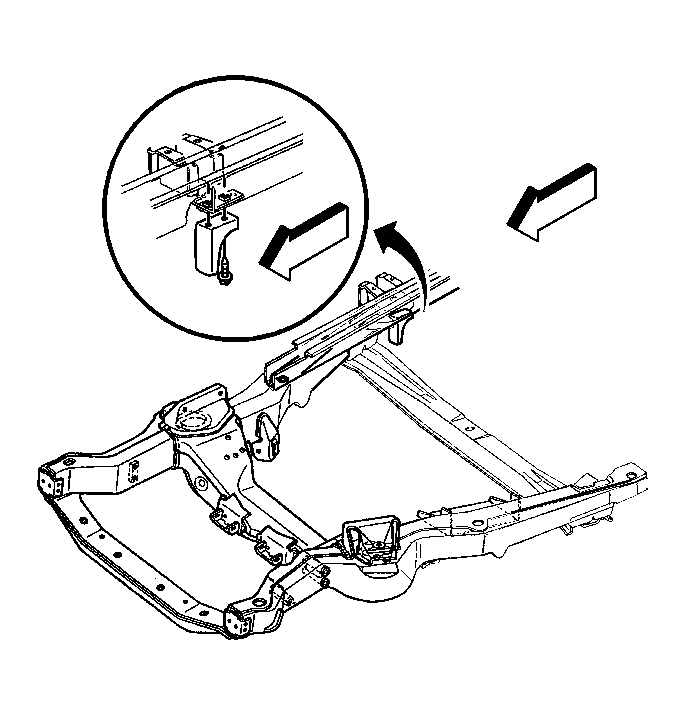

    Fig 1: View Of Frame Stop Bolts
    GM316214Courtesy of GENERAL MOTORS CORP.
  1. Install the frame stop.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts that retain the frame stop to the frame.

    Tighten:  Tighten the bolts that retain the frame stop to 35 N.m (26 lb ft).

  3. Lower the vehicle.
