Installation Procedure

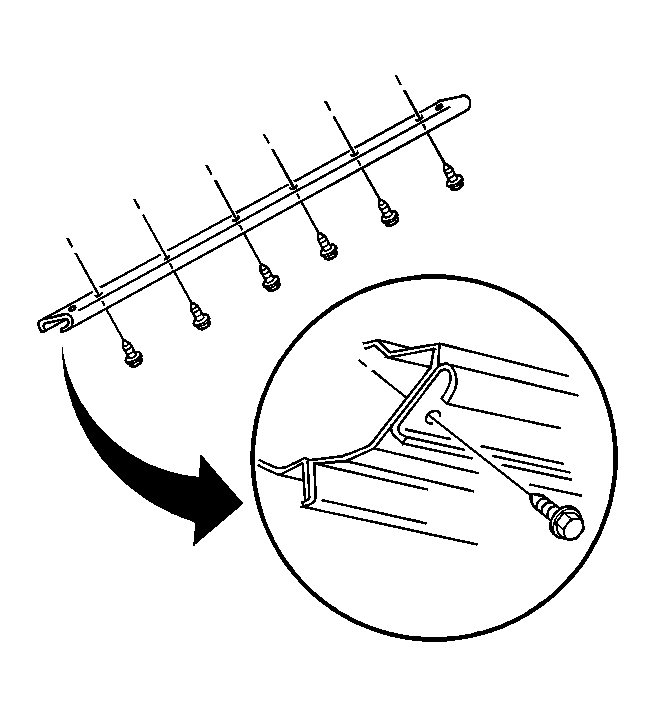

    Fig 1: Locating Assist Step To Rocker Panel Retainer Screws
    GM350694Courtesy of GENERAL MOTORS CORP.
  1. Install the assist step retainer to the rocker panel. The right side is a one piece retainer, the left side is a two piece retainer.
    1. Clean the rocker panel with isopropyl cleaner or equivalent to remove all of the old double back tape.
    2. Remove the strip from the double sided adhesive tape.
    3. Align the assist step retainer to the rocker panel and press firmly in place.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the assist step retainer screws to the rocker panel.

    Tighten:  Tighten the assist step retainer screws to the rocker panel to 2 N.m (18 lb in).

  3. Install the assist step extensions. Refer to Assist Step Replacement .
  4. Lower the vehicle.
