Installation Procedure

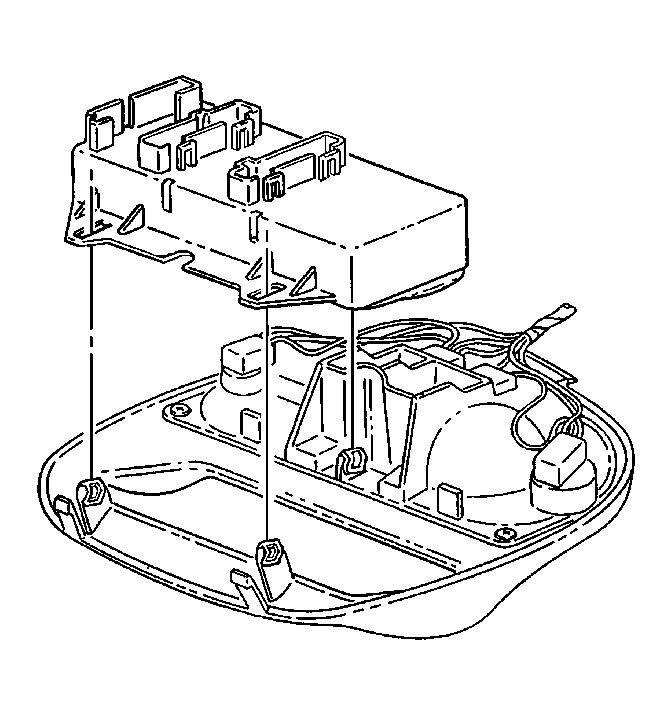

    Fig 1: View Of Interior Lamp/Multifunction Switch
    GM313943Courtesy of GENERAL MOTORS CORP.
  1. Snap the interior lamp/multifunction switch into the interior lamp/multifunction switch/reading lamp housing.
    2. Fig 2: View Of Interior Lamp/Multifunction Switch/Reading Lamp Housing
    GM313945Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors.
  3. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console
  4. Press up on the interior lamp/multifunction switch/reading lamp housing in order to snap the housing into the overhead console.
