Installation Procedure

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

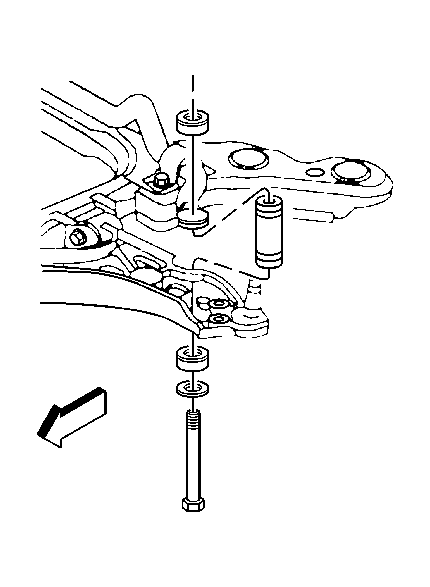

Fig 1: Removing/Installing Stabilizer Shaft Link Bolt

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Loosely install the stabilizer link components.
Tighten: Tighten the stabilizer link nuts to 17 N.m (13 lb ft).
Install the front wheels and tires. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
