Assembly Procedure

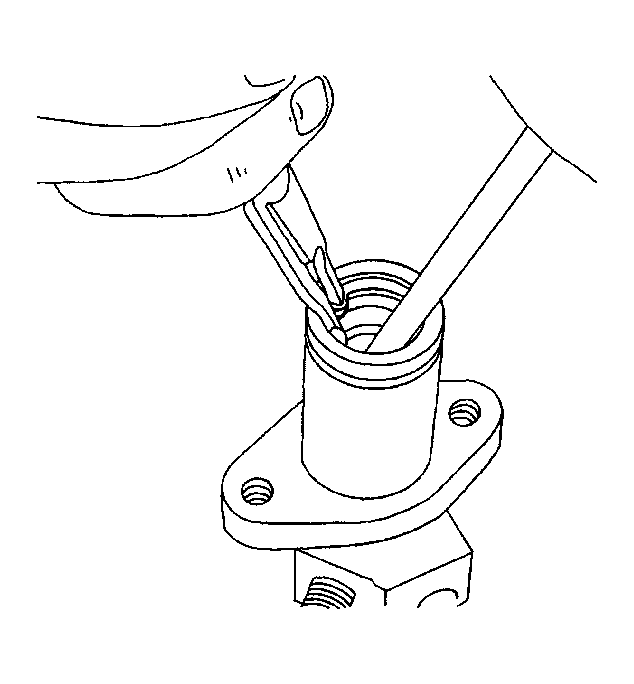

    Fig 1: View Of Piston Compression And Snap Ring Removal Procedure
    GM1308687Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Safety Glasses Caution in Cautions and Notices.
  1. Apply clean clutch fluid to the piston and the cup.
  2. Install the spring to the piston, and insert the assembly into the cylinder body.
  3. Compress the piston with a driver, and install the snap ring with snap ring pliers.

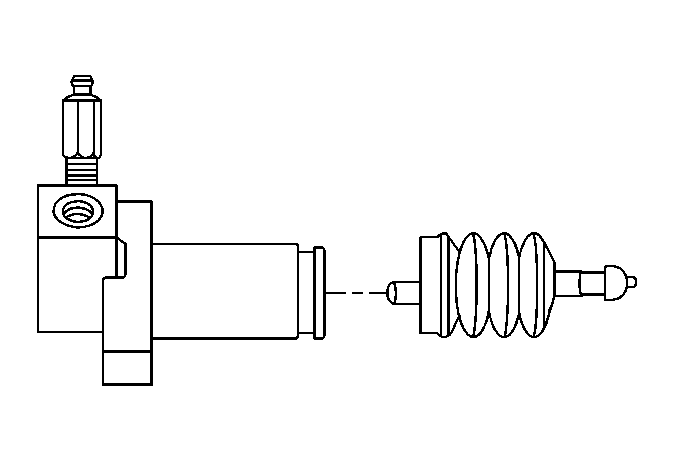

    4. Fig 2: View Of Boot And Pushrod
    GM1255817Courtesy of GENERAL MOTORS CORP.
  4. Install the pushrod and the boot.

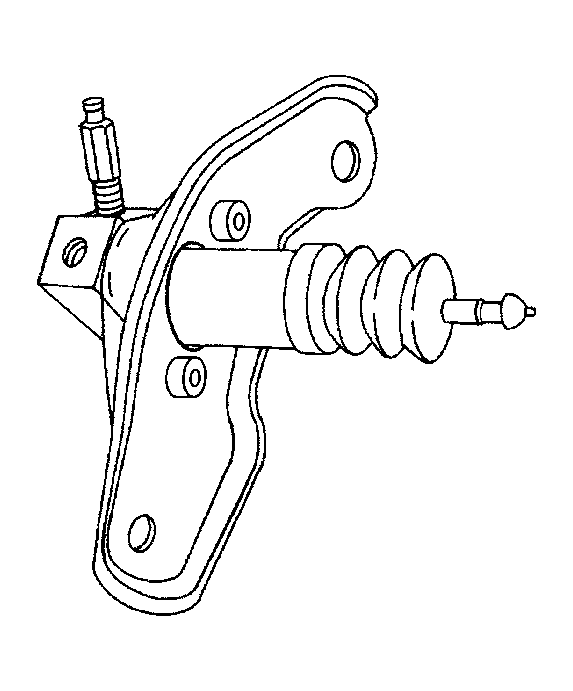

    5. Fig 3: View Of Clutch Release Assembly, Bracket And Bolts
    GM1255816Courtesy of GENERAL MOTORS CORP.
  5. Install the bracket and the bolts.
  6. Install the clutch release cylinder assembly. Refer to Clutch Release Cylinder Assembly .
