Installation Procedure

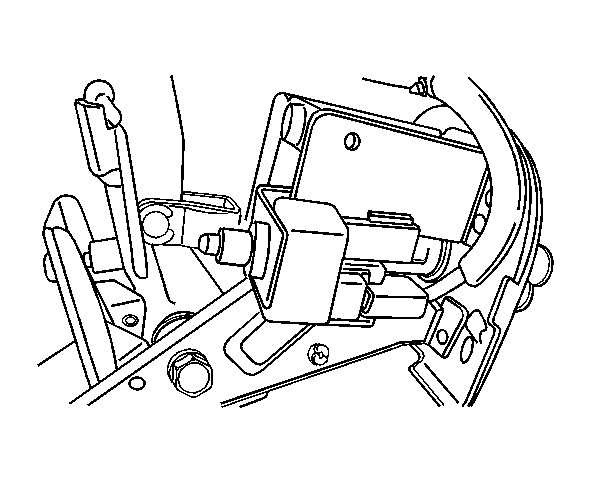

    Fig 1: View Of Clutch Pedal Position Switch
    GM1255791Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the clutch pedal position switch by inserting it in from the rear of the clutch pedal bracket and rotating the switch until it locks into position.
