Installation Procedure

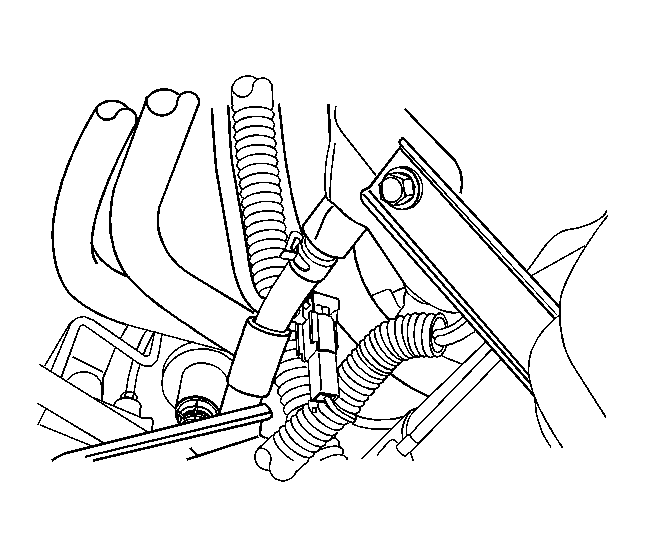

    Fig 1: View Of Block Strap Bracket
    GM1255514Courtesy of GENERAL MOTORS CORP.
  1. Place the starter assembly in position.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper and the lower starter mounting bolts.

    Tighten:

    • Tighten the starter-to-engine block mounting bolt to 45 N.m (33 lb ft)  .
    • Tighten the starter-to-transmission mounting bolt to 50 N.m (37 lb ft)  .

  3. Install the engine intake manifold-to-engine block strap bracket over the starter.

    Tighten:  Tighten the engine strap bracket over the starter to 20 N.m (15 lb ft)  .

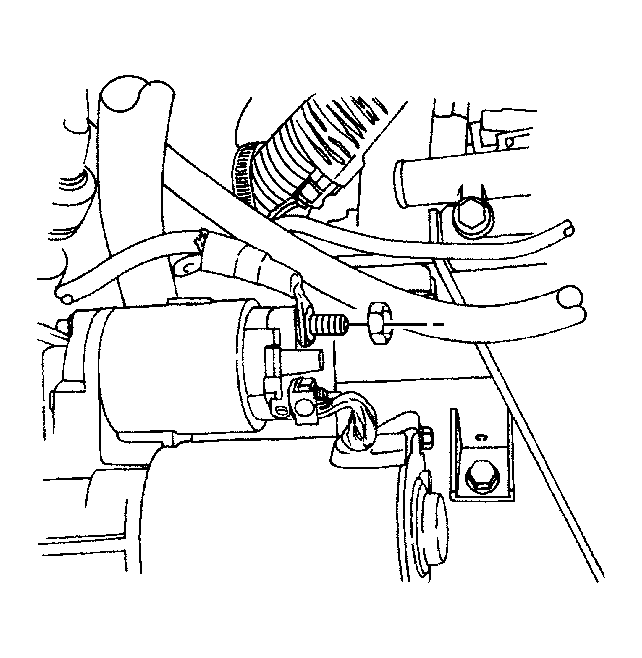

    4. Fig 2: View Of Starter And Solenoid Nuts
    GM1255513Courtesy of GENERAL MOTORS CORP.
  4. Position the starter electrical wire on the solenoid terminal.
  5. Install the starter solenoid terminal-to-ignition solenoid terminal nut.

    Tighten:  Tighten the nut to 6 N.m (53 lb in)  .

  6. Install the starter solenoid terminal-to-battery cable terminal nut.

    Tighten:  Tighten the nut to 15 N.m (11 lb ft)  .

  7. Connect the negative battery cable.
