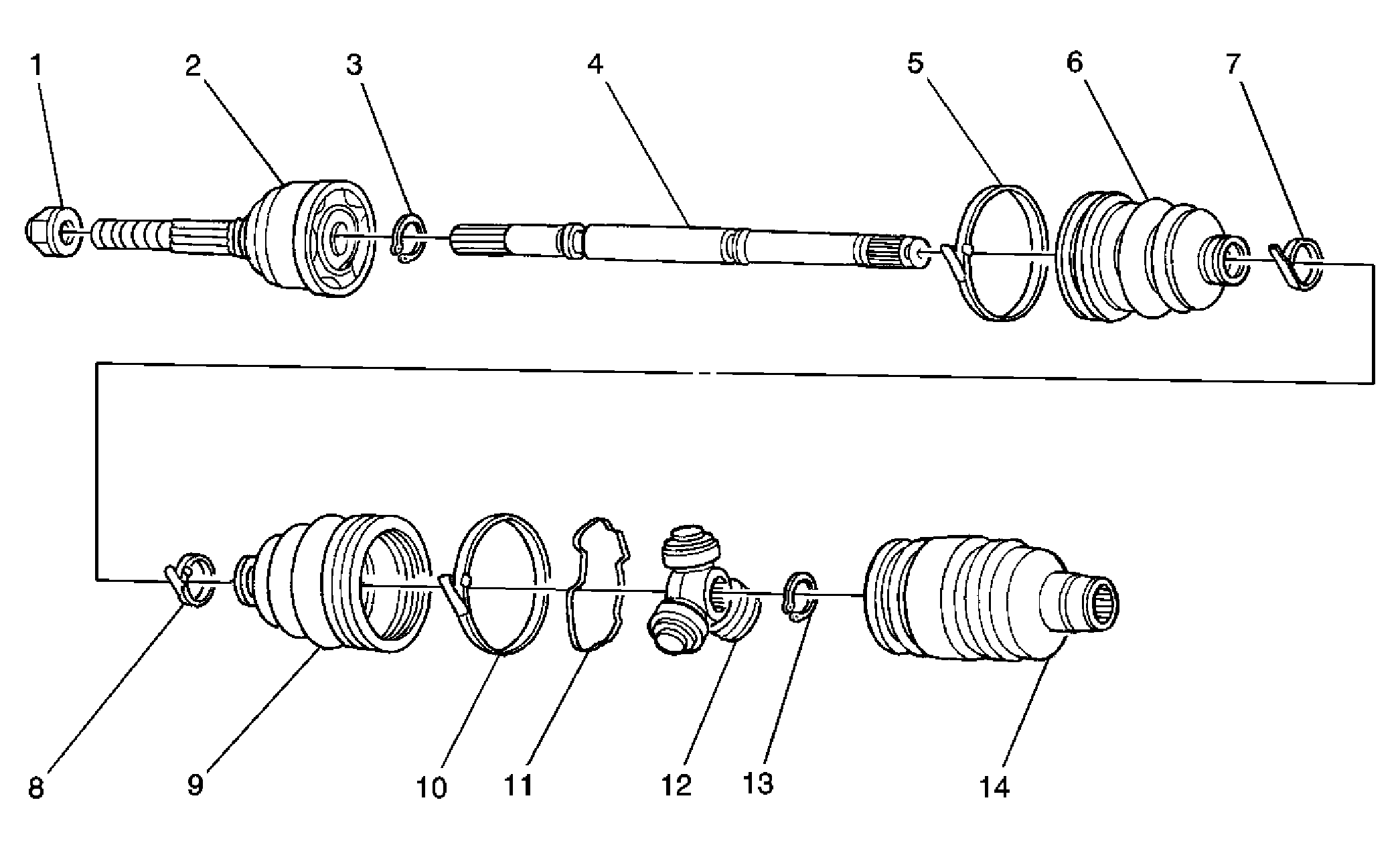

Front Drive Axle Disassembled Views
| Callout | Component Name |
|---|---|
| 1 | Caulking Nut |
| 2 | C/V Joint |
| 3 | Snap Ring |
| 4 | Axle Shaft |
| 5 | Seal Retaining Clamp |
| 6 | Drive Axle Outboard Seal |
| 7 | Seal Retaining Clamp |
| 8 | Seal Retaining Clamp |
| 9 | Drive Axle Inboard Seal |
| 10 | Seal Retaining Clamp |
| 11 | Tripot Joint Retaining Ring |
| 12 | Tripot Joint |
| 13 | Shaft Retaining Ring |
| 14 | Tripot Housing |
