Installation Procedure

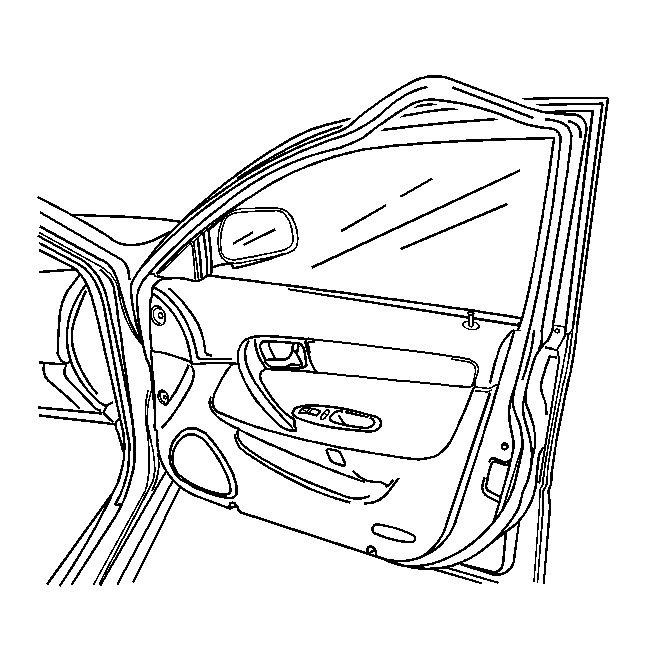

    Fig 1: Identifying Door Weatherstrip
    GM1256808Courtesy of GENERAL MOTORS CORP.
  1. Install the door weatherstrip.

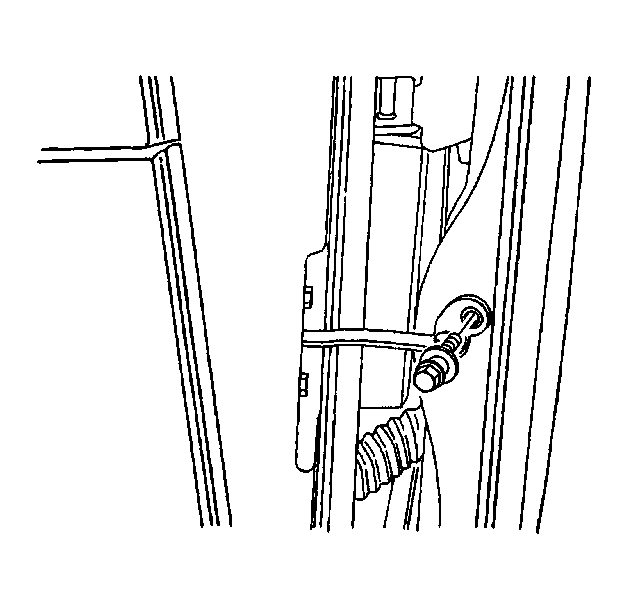

    2. Fig 2: View Of Door Hold-Open Link And Bolt
    GM1256807Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the door hold-open link to the body with the bolt.

    Tighten:  Tighten the door hold-open link-to-body bolt to 25 N.m (18 lb ft)  .
