Installation Procedure

    Fig 1: View Of Inside Door Handle Components
    GM1256824Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear door lock with the screws.

    Tighten:  Tighten the rear door lock screws to 10 N.m (89 lb in)  .

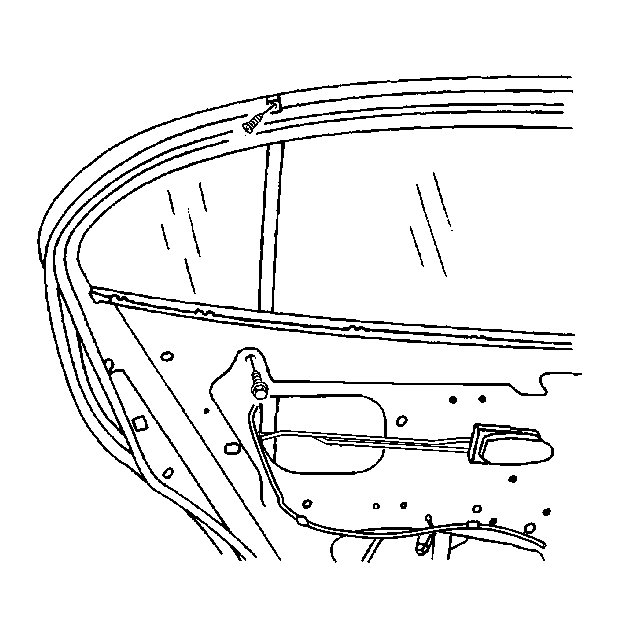

    3. Fig 2: View Of Door Seal Trim And Guide Rail Screws
    GM1256821Courtesy of GENERAL MOTORS CORP.
  3. Install the lock rods.
  4. Install the guide rail with the bolts and the screw.

    Tighten:

    • Tighten the rear door guide rail screw to 4 N.m (35 lb in)  .
    • Tighten the rear door guide rail bolts to 10 N.m (89 lb in)  .

  5. Install the door seal trim. Refer to Sealing Strip Replacement - Door Bottom .
  6. Connect the negative battery cable.
