Installation Procedure

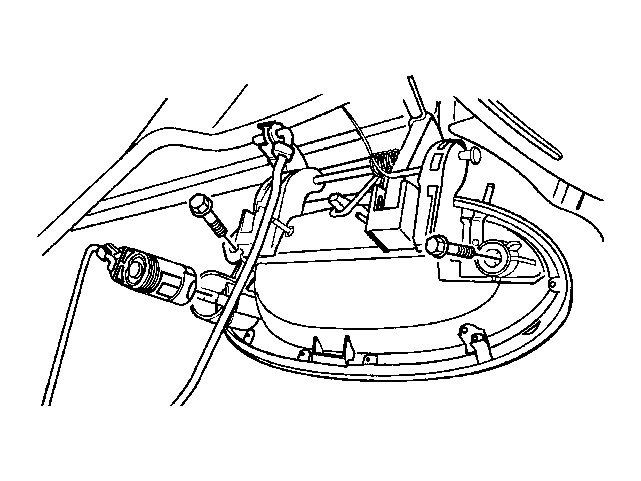

    Fig 1: View Of Door Handle Lock And Attachment Bolts
    GM1256826Courtesy of GENERAL MOTORS CORP.
  1. Connect the outside door handle and the lock rods.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the door handle with the bolts.

    Tighten:  Tighten the outside door handle bolts to 4.5 N.m (40 lb in)  .

  3. Install the door seal trim. Refer to Sealing Strip Replacement - Door Bottom .
