Engine Oil Pressure (EOP) Switch Connector End View

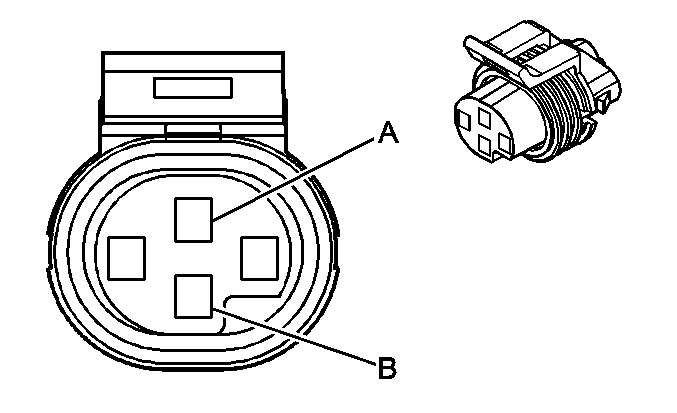

Engine Oil Pressure (EOP) Switch (L36)
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12065400
- 2-Way F Metri-Pack 150 Series (GRN)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
TAN/BLK |
231 |
Oil Pressure Switch Signal |
| B |
BLK/WHT |
451 |
Ground |
Engine Oil Pressure (EOP) Switch (LA1)
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12065299
- 1-Way F Metri-Pack 150 Series (LT GRY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
TAN/BLK |
231 |
Oil Pressure Switch Signal |
