Schematic and Routing Diagrams

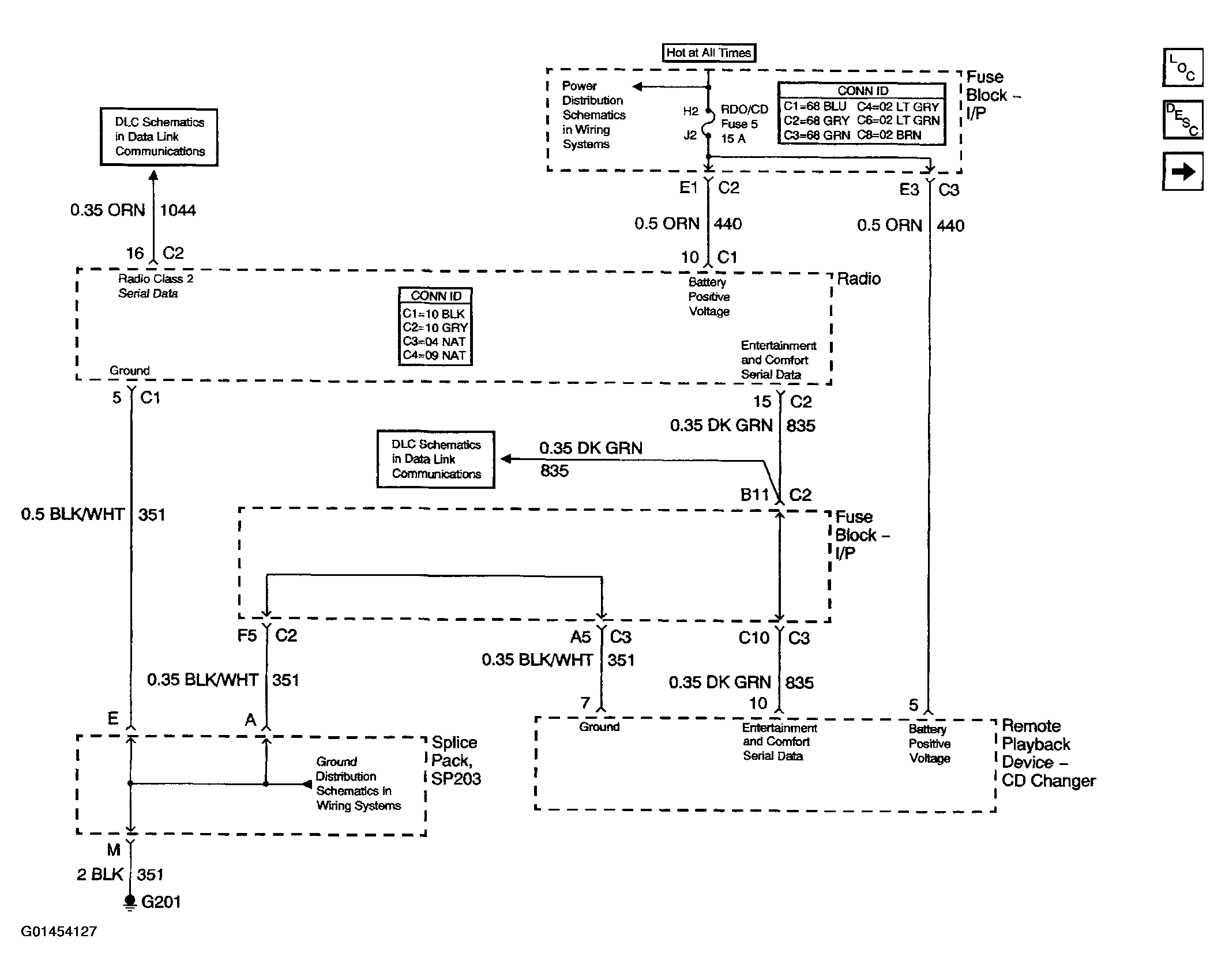

Fig 1: Retained Accessory Power (RAP) Schematic (Radio)
G01454127Courtesy of GENERAL MOTORS CORP.

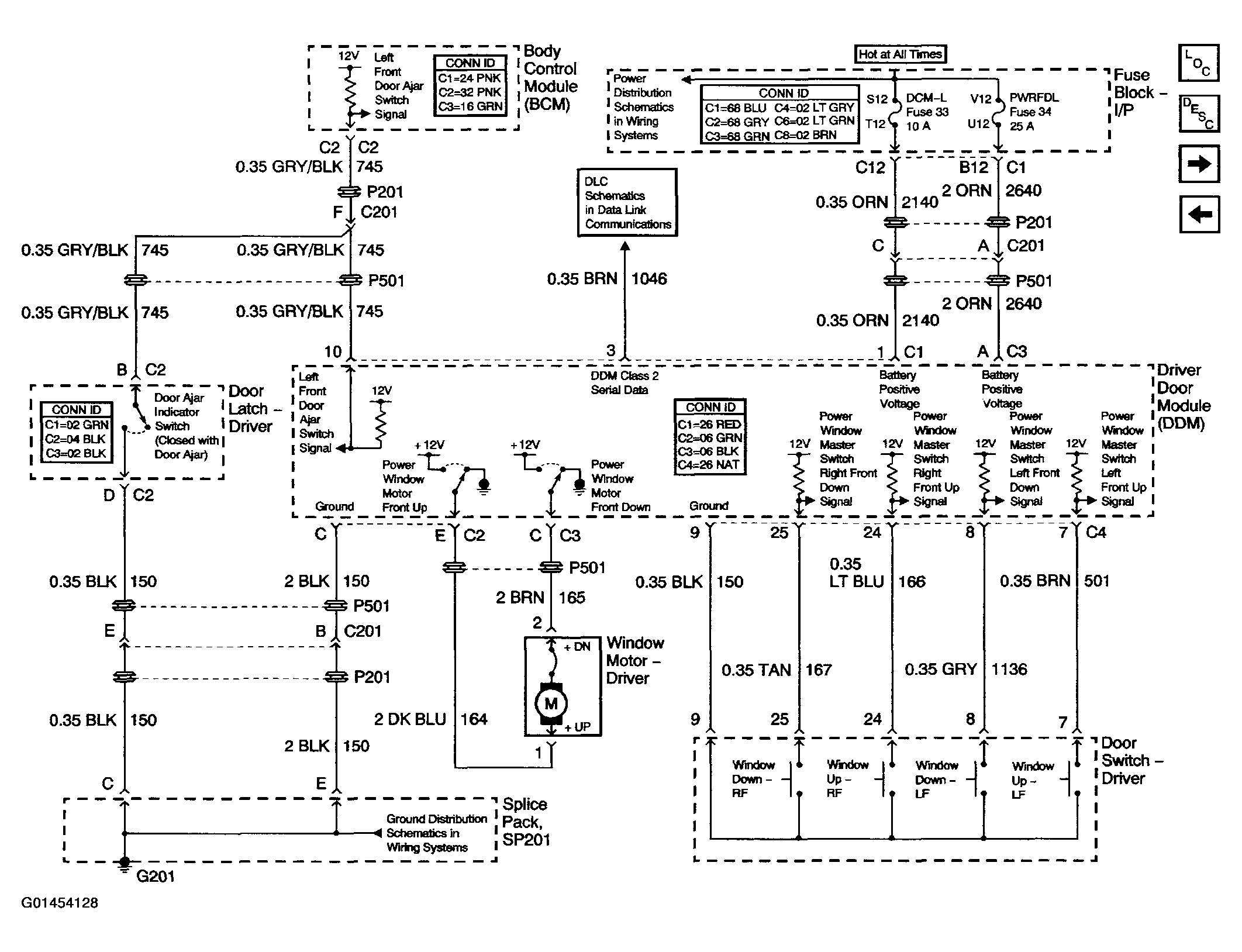

Fig 2: Retained Accessory Power (RAP) Schematic (Left Door)
G01454128Courtesy of GENERAL MOTORS CORP.

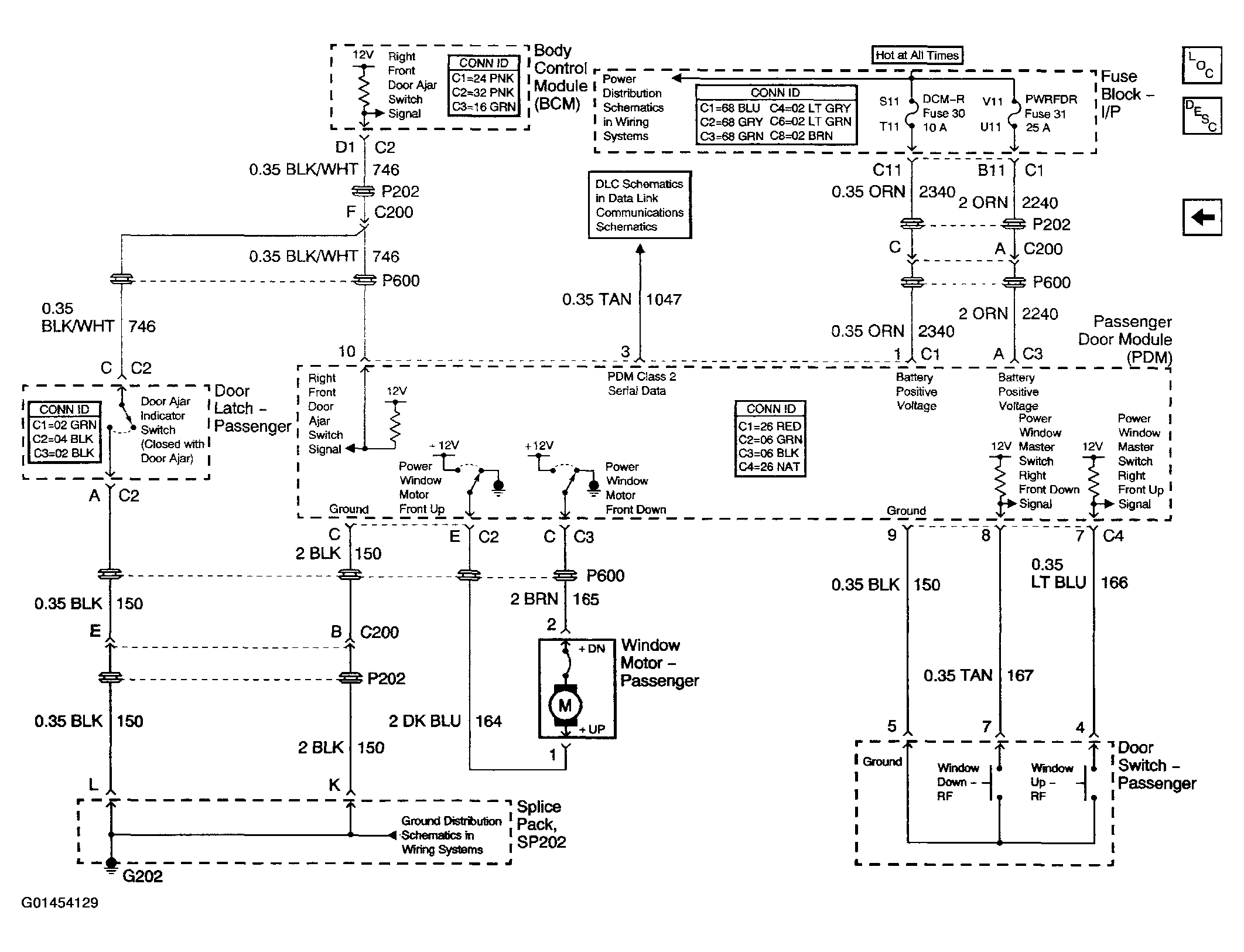

Fig 3: Retained Accessory Power (RAP) Schematic (Right Door)
G01454129Courtesy of GENERAL MOTORS CORP.
