Removal Procedure

  1. Siphon the power steering fluid from the reservoir.
  2. Disconnect the reservoir outlet hose from the reservoir.

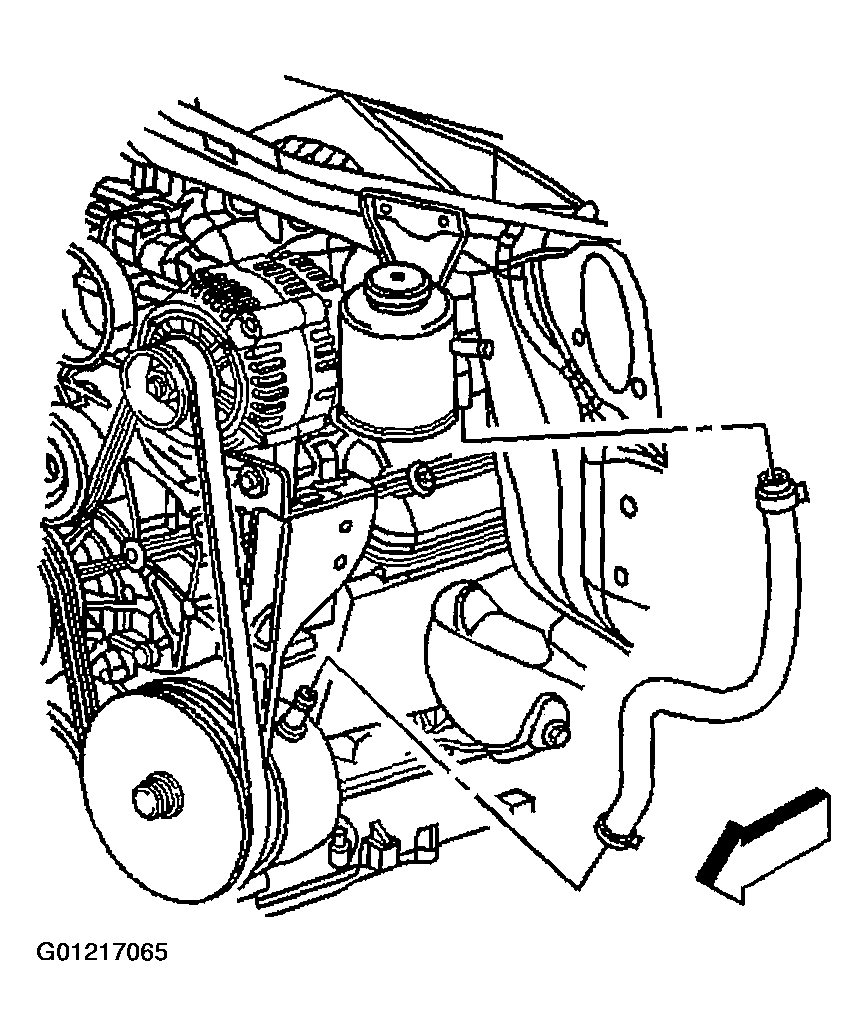

    Fig 1: Disconnecting Reservoir Outlet Hose From Reservoir
    G01217065Courtesy of GENERAL MOTORS CORP.
  3. Remove the reservoir inlet hose (3) from the reservoir.

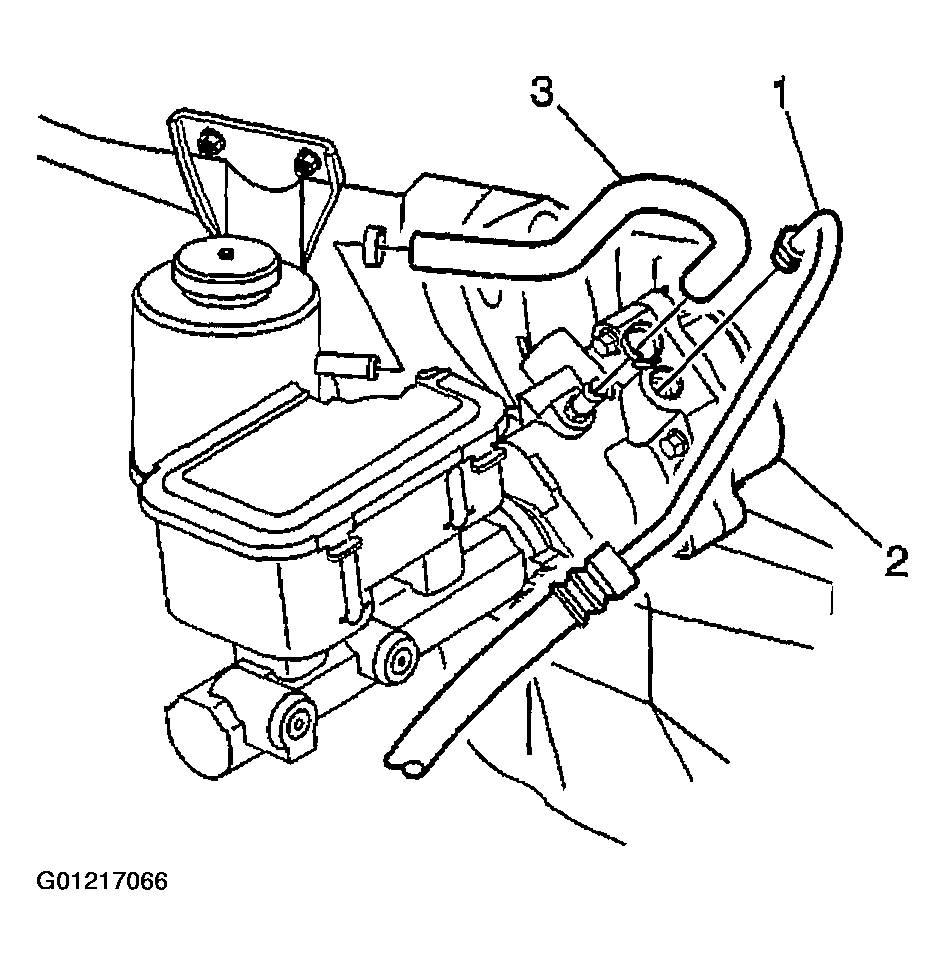

    Fig 2: Removing Reservoir Inlet Hose From Reservoir
    G01217066Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering pump remote reservoir mounting nuts (4).
  5. Remove the power steering pump remote reservoir (3).

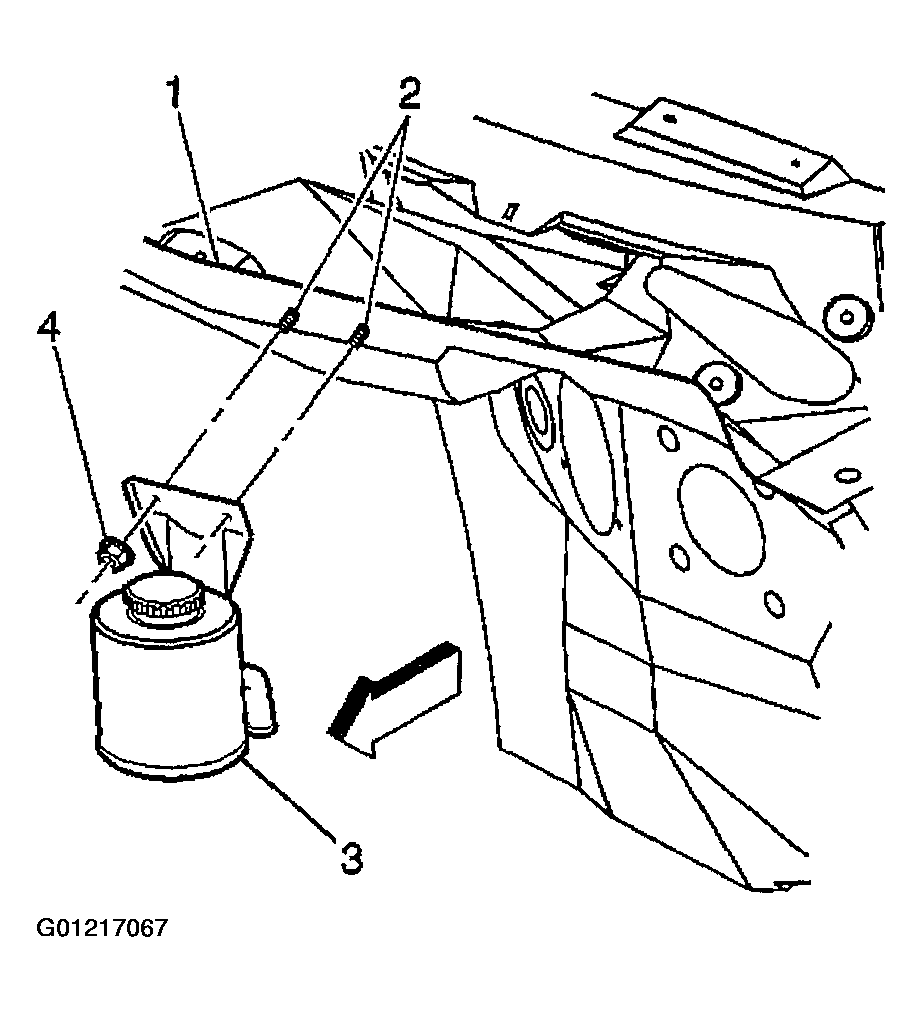

    Fig 3: Removing Power Steering Pump Remote Reservoir Mounting Nuts & Reservoir
    G01217067Courtesy of GENERAL MOTORS CORP.
