ABS Schematic

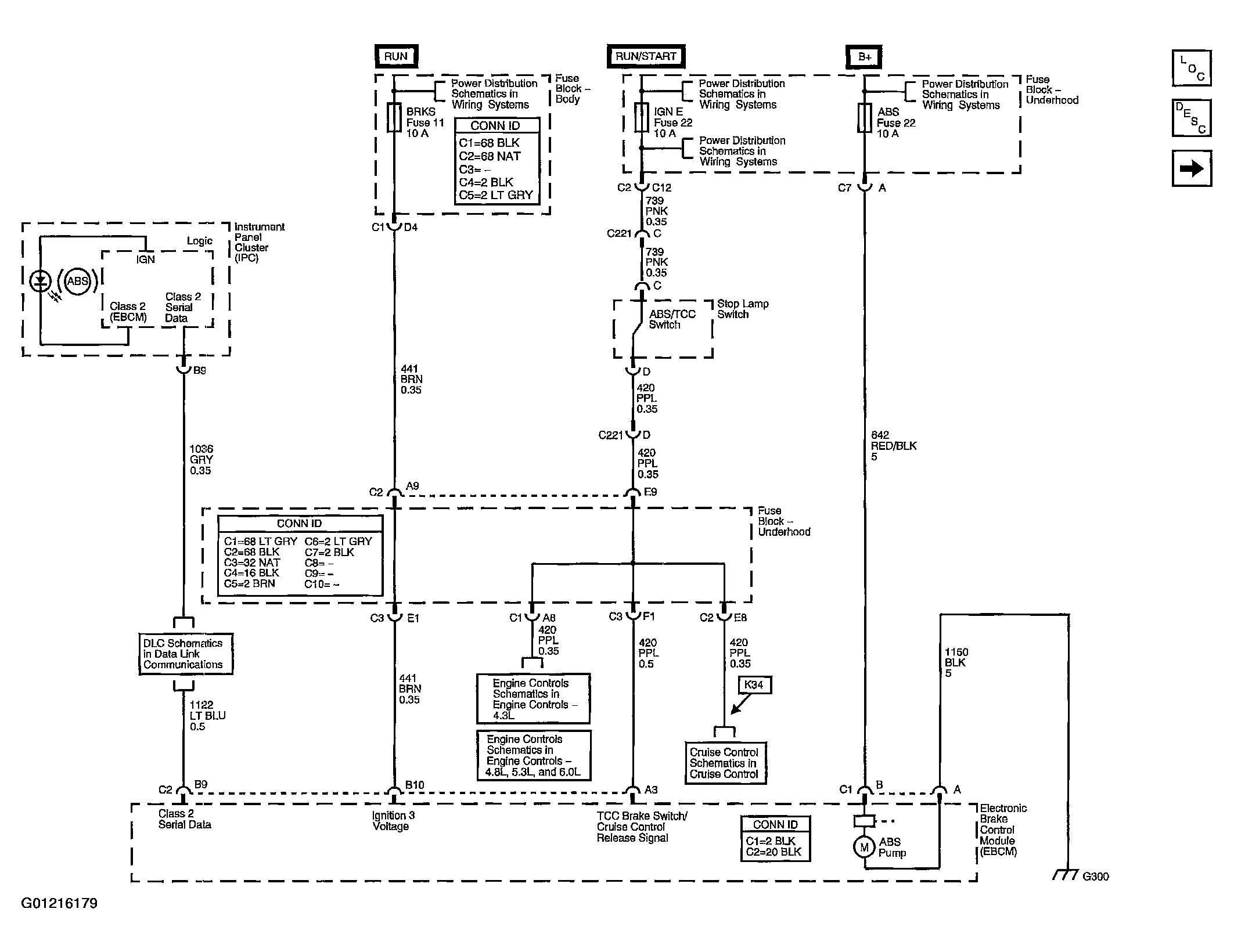

Fig 1: ABS Schematic (Power, Ground, DLC & Indicator)

G01216179

Courtesy of GENERAL MOTORS CORP.

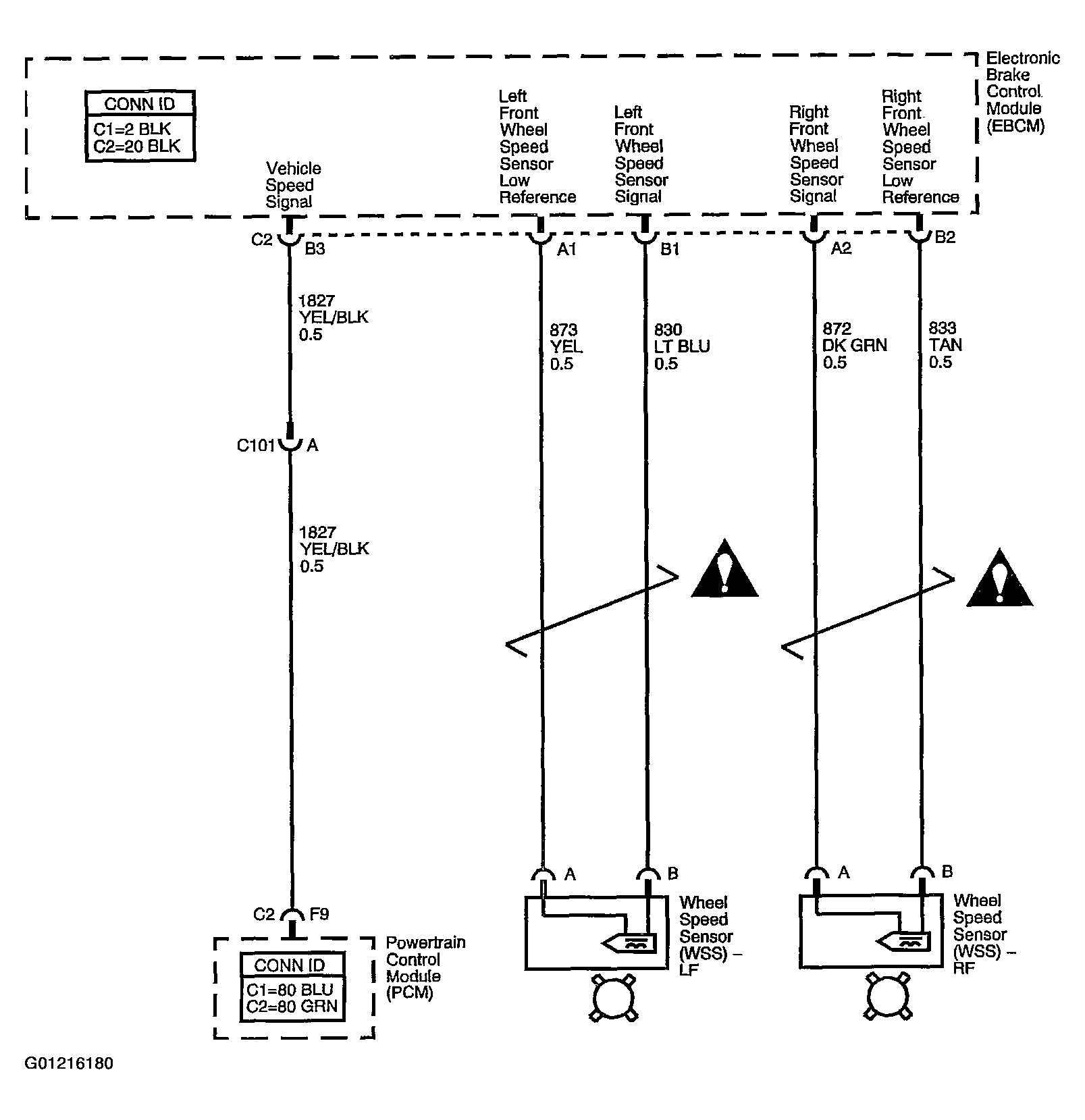

Fig 2: ABS Schematic (Wheel Speed Sensors & VSS)

G01216180

Courtesy of GENERAL MOTORS CORP.
