Installation Procedure

Important:  Install the lower control arm vertical bushing in the original position in order to maintain the original vehicle ride, handling and road feel.

1. Align the flat edge of the bushing flange to the mark in the control arm (1). Ensure that the flat edge of the bushing flange is 30 degrees (2) from the centerline of the lower control arm. Ensure that the thin slot in the bushing is facing outboard.
2. Insert the bushing into the control arm.

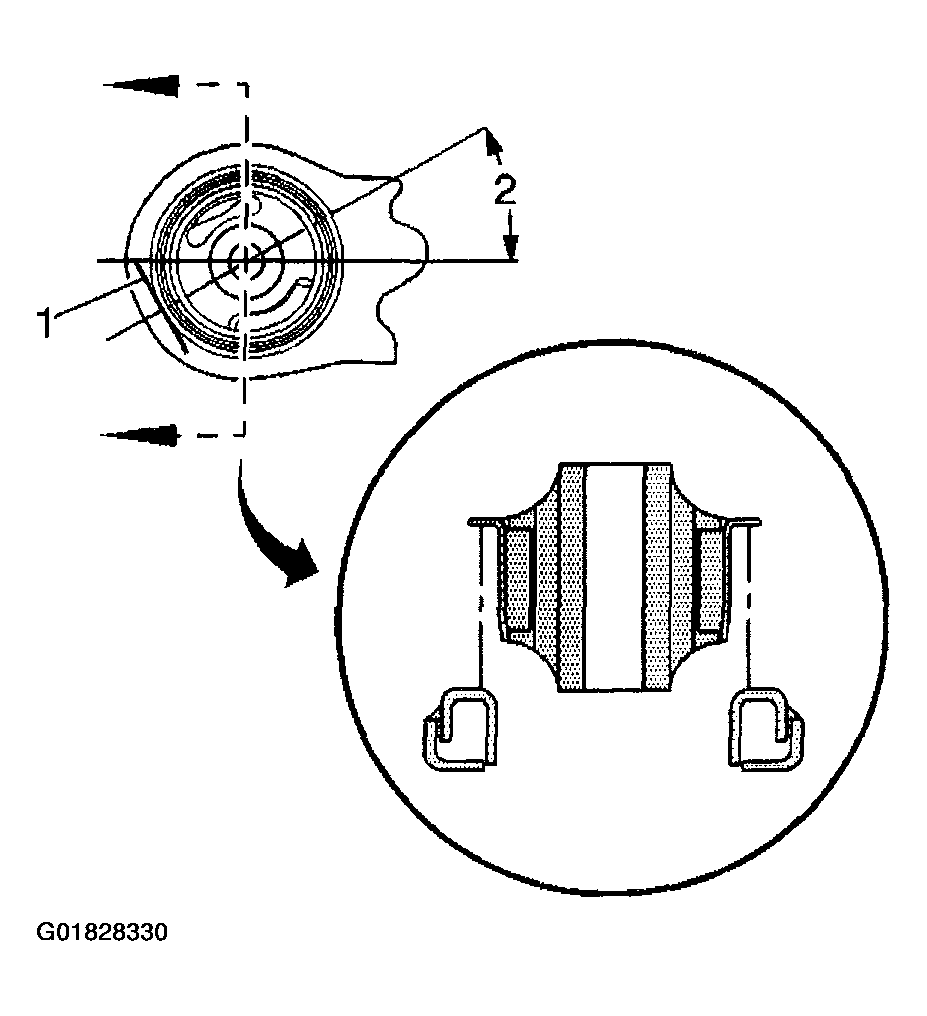

   Fig 1: Aligning Flat Edge Of Bushing Flange To Mark In Control Arm

   Courtesy of GENERAL MOTORS CORP.

   Important:  Apply J 23444-A  , or equivalent high pressure lubricant, to the threads of the J 21474-27  .

3. Assemble the following bushing installation tools as shown:
   • J 21474-27  Puller Bolt
   • J 21474  Control Arm Bushing Installer
   • J 21474-5  Bushing Receiver
   • J 21474-4  Nut
4. Tighten the J 21474-4  until the bushing is fully seated in the control arm.
5. Disassemble the bushing installation tools.
6. Install the lower control arm. Refer to Lower Control Arm Replacement .

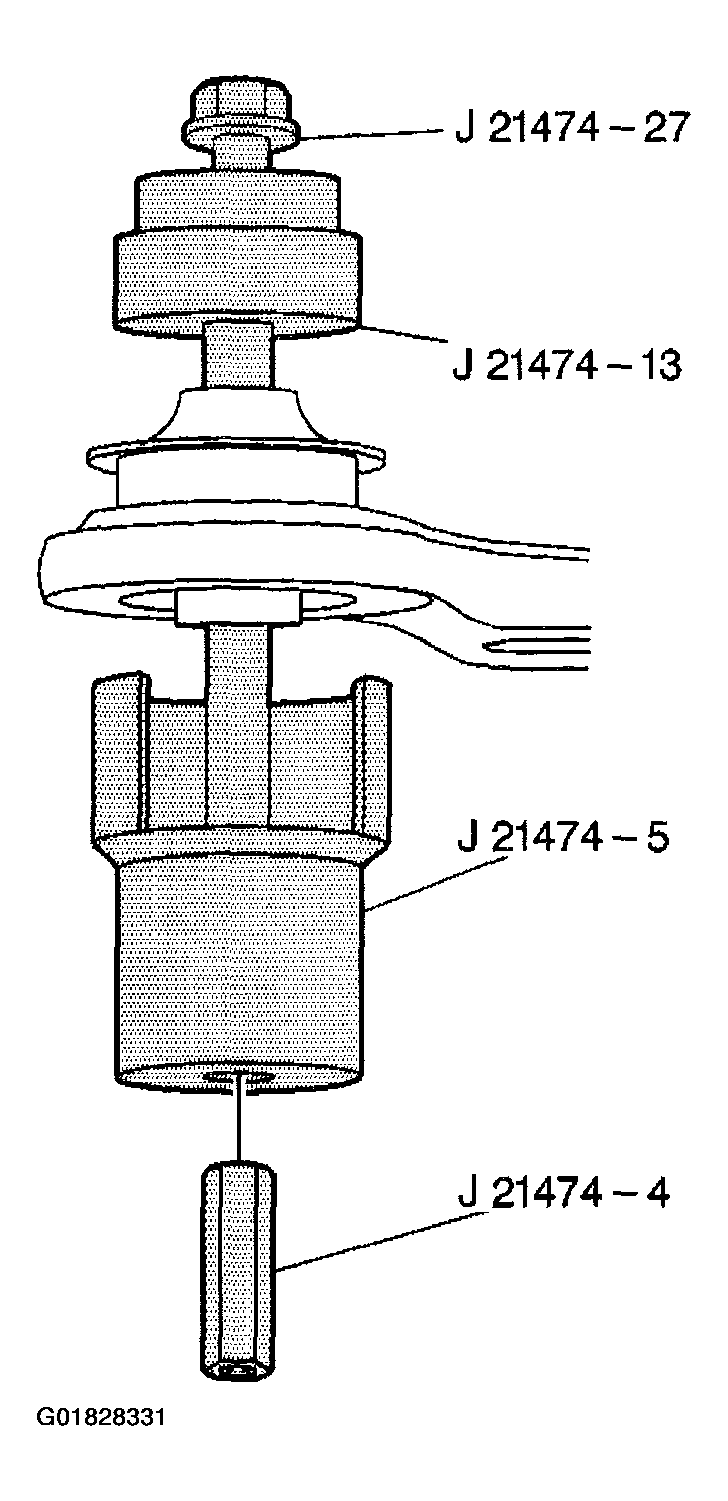

   Fig 2: Disassembling The Bushing Tools

   Courtesy of GENERAL MOTORS CORP.
