Installation Procedure

  1. Install the buckle side belt (1) to the seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut (2) securing the buckle side belt to the seat cushion frame.

    Tighten

    Tighten the front seat buckle side belt nut to 53 N.m (39 lb ft).

  3. Install the front seat inboard finish panel. Refer SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .

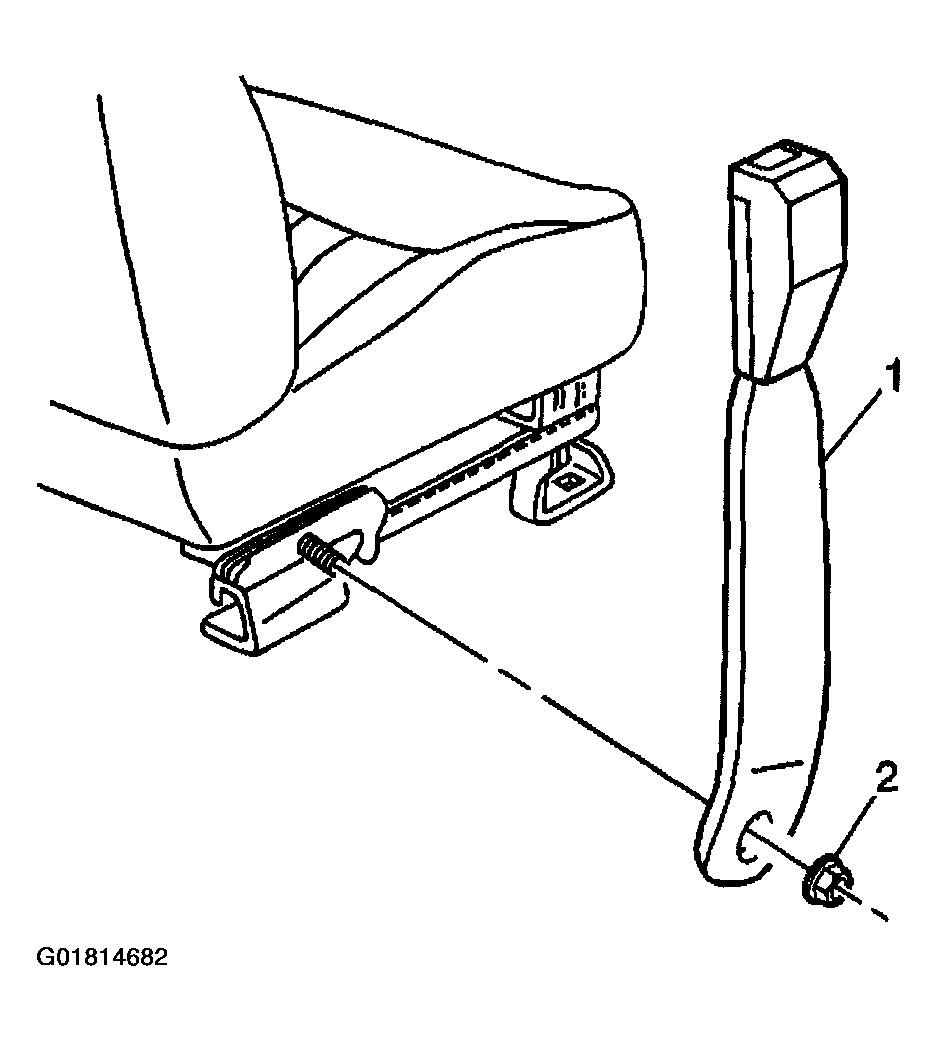

    Fig 1: Installing Nut & Buckle Side Belt (Left Front)
    G01814682Courtesy of GENERAL MOTORS CORP.
