Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the surge tank (1) over the two studs at the wheelhouse.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the surge tank fasteners.

    Tighten

    Tighten the surge tank fasteners to 6 N.m (53 lb in).

  3. Connect the connector (2) to the coolant level sensor.

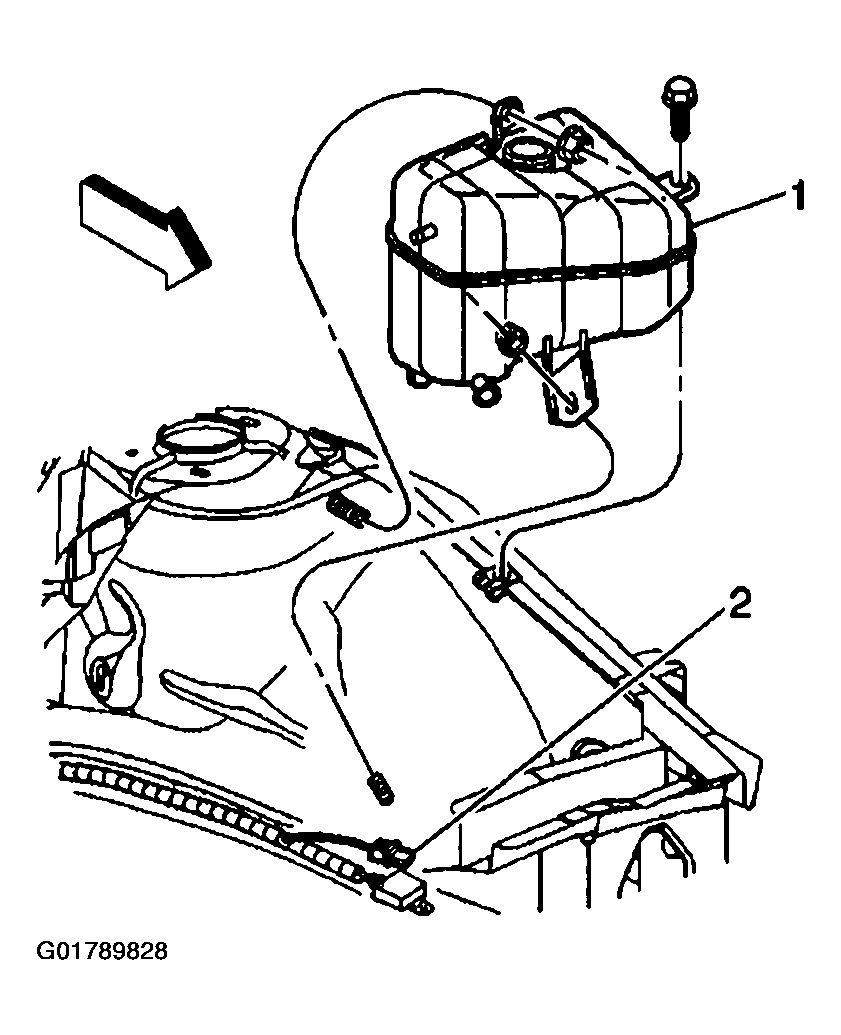

    Fig 1: Surge Tank, Connector & Stud
    G01789828Courtesy of GENERAL MOTORS CORP.
  4. Position the J 38185  to the clamp in order to connect the surge tank outlet hose (3) to the surge tank (1).
  5. Connect the surge tank inlet hose (1) to the surge tank (2).
  6. Install the air cleaner assembly.

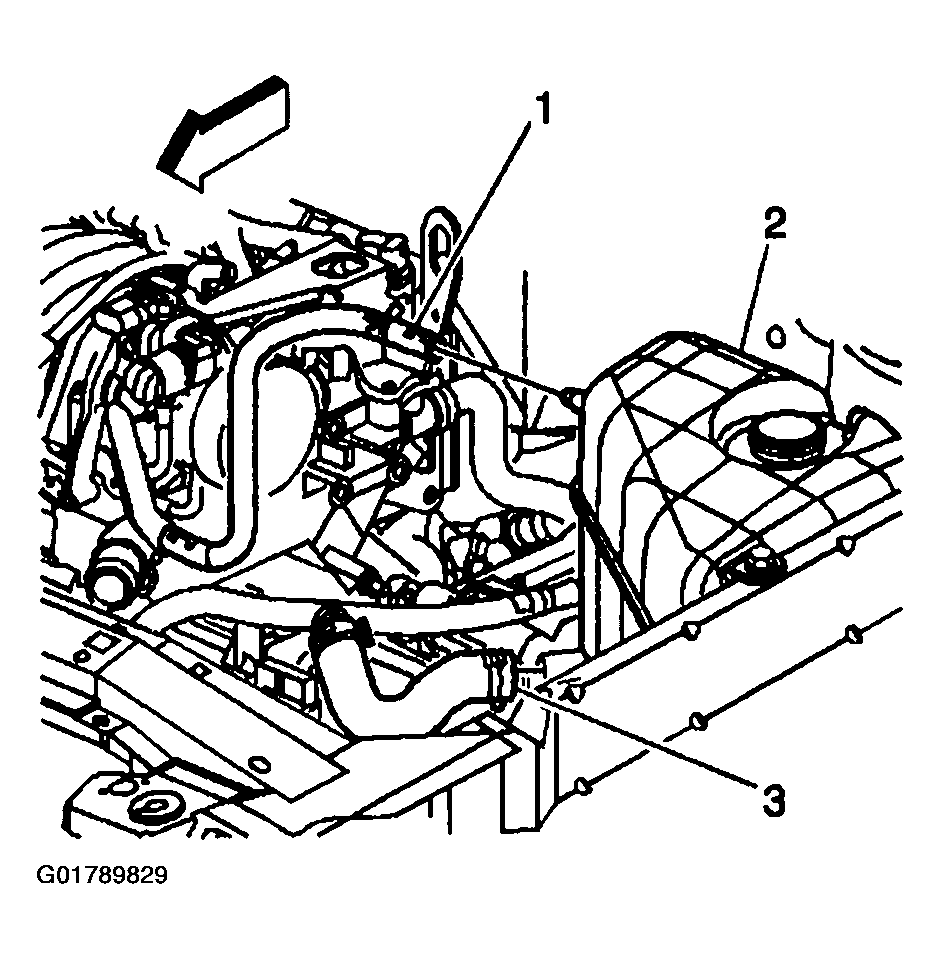

    Fig 2: Surge Tank & Inlet Hose
    G01789829Courtesy of GENERAL MOTORS CORP.
  7. Position the surge tank inlet hose to the retaining feature of the resonator.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

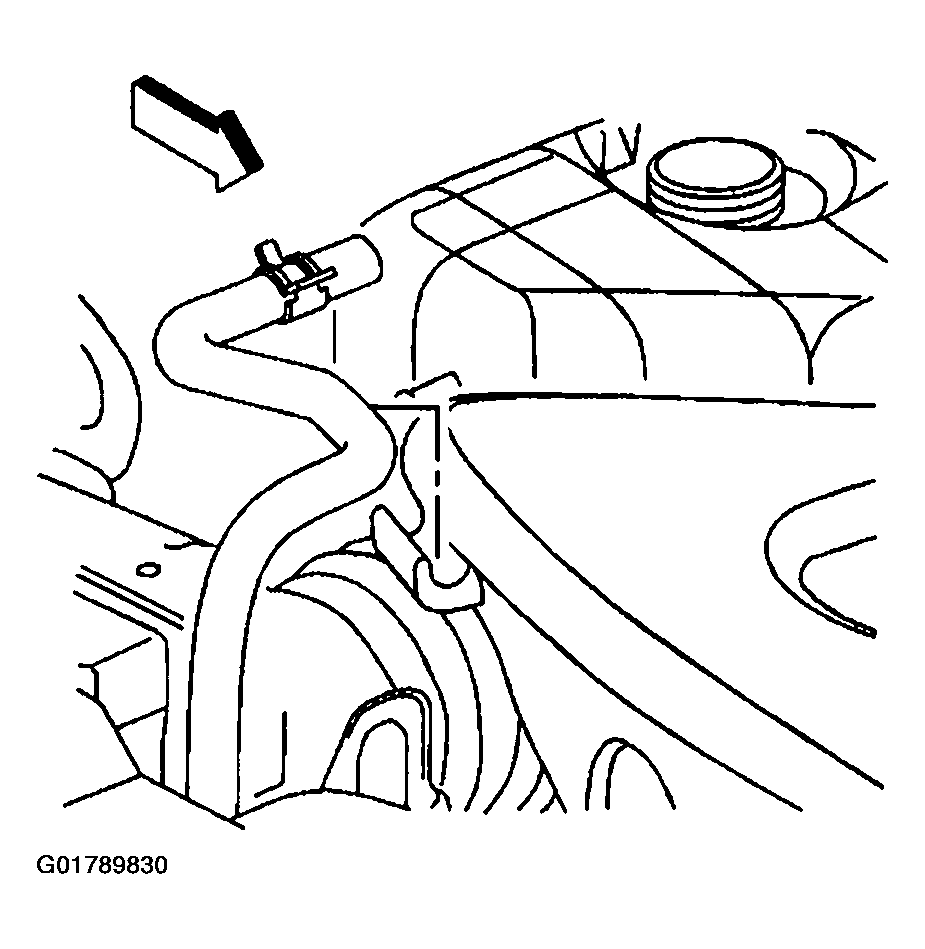

Fig 3: Surge Tank Inlet Hose & Resonator
G01789830Courtesy of GENERAL MOTORS CORP.
