Special Tools and Equipment

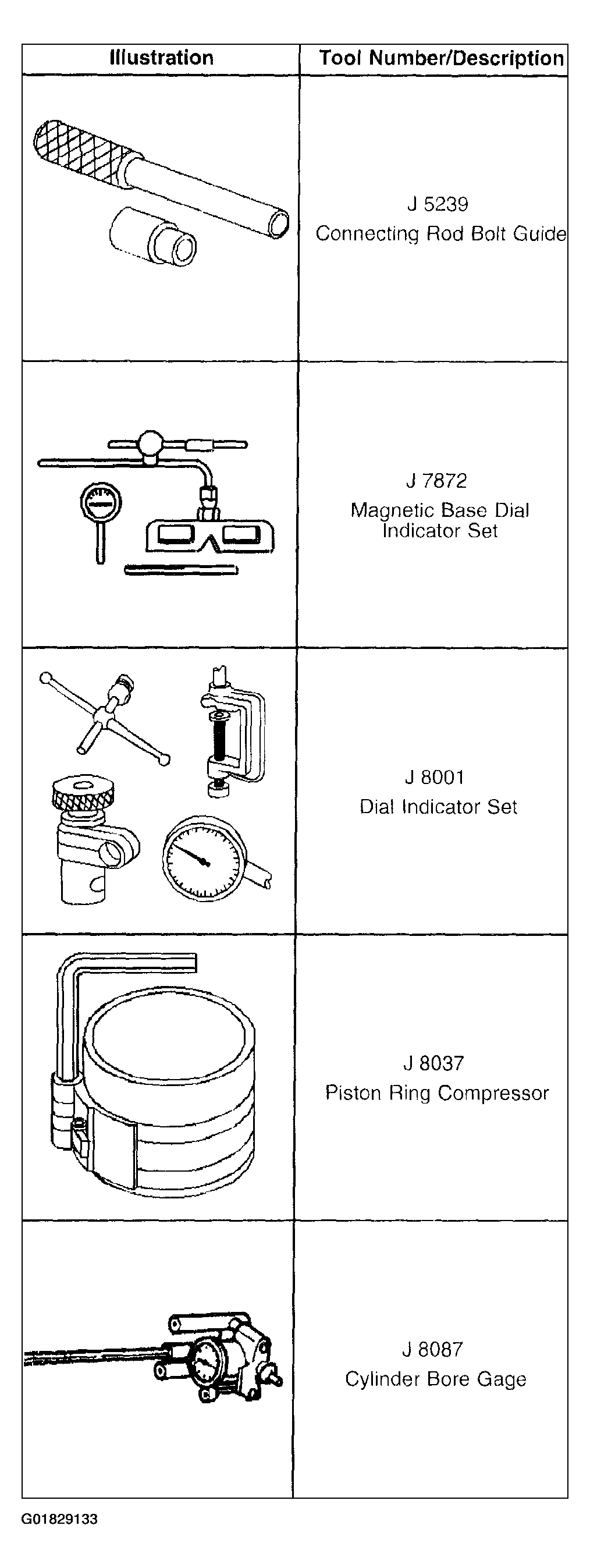

Fig 1: Special Tools & Equipment (1 Of 4)
G01829133Courtesy of GENERAL MOTORS CORP.

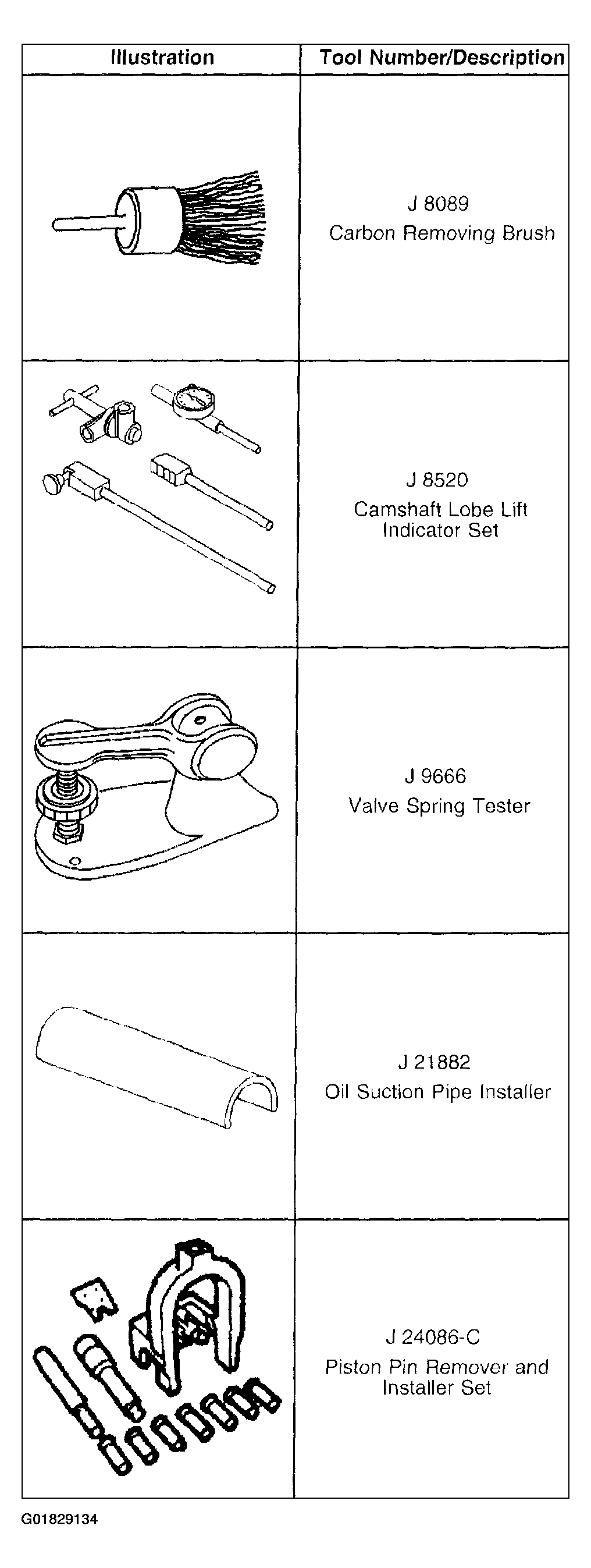

Fig 2: Special Tools & Equipment (2 Of 4)
G01829134Courtesy of GENERAL MOTORS CORP.

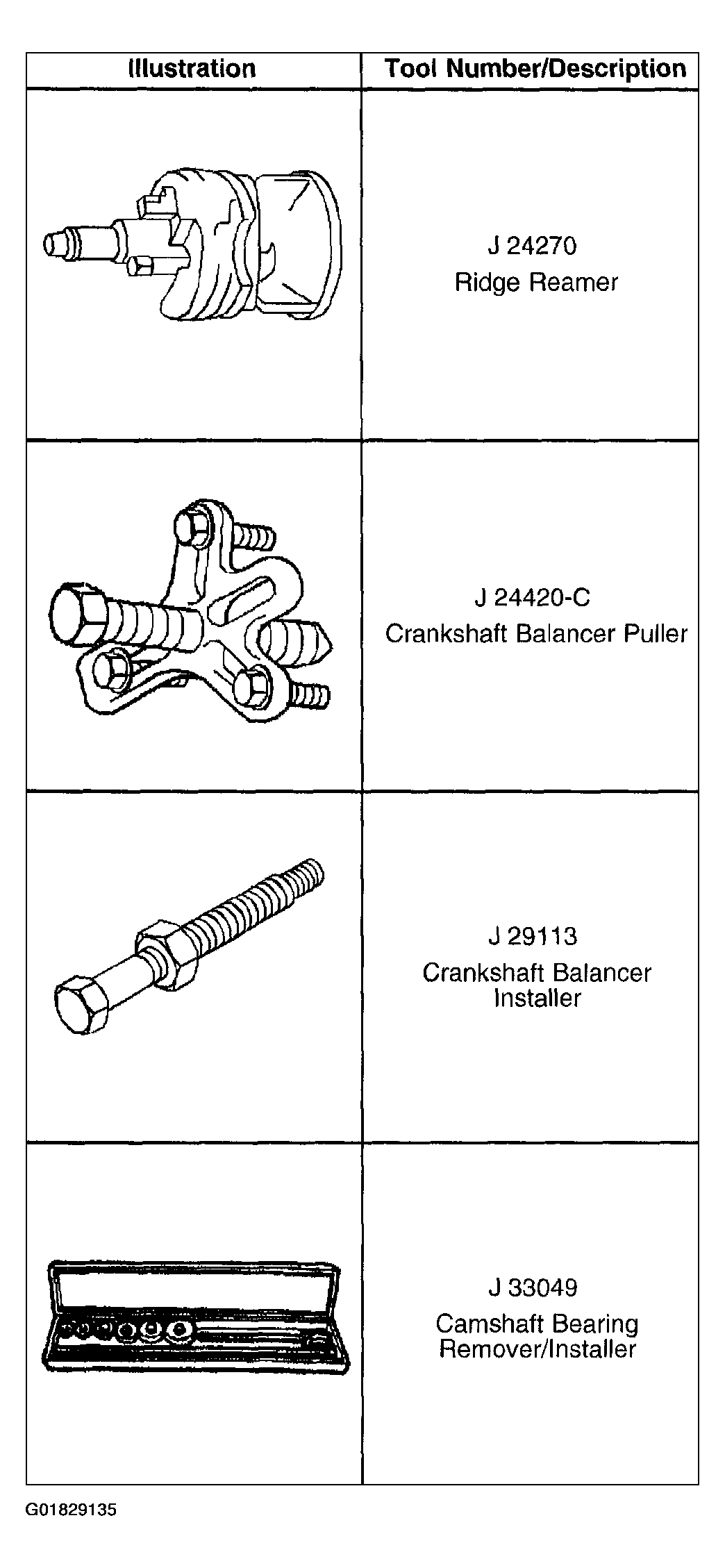

Fig 3: Special Tools & Equipment (3 Of 4)
G01829135Courtesy of GENERAL MOTORS CORP.

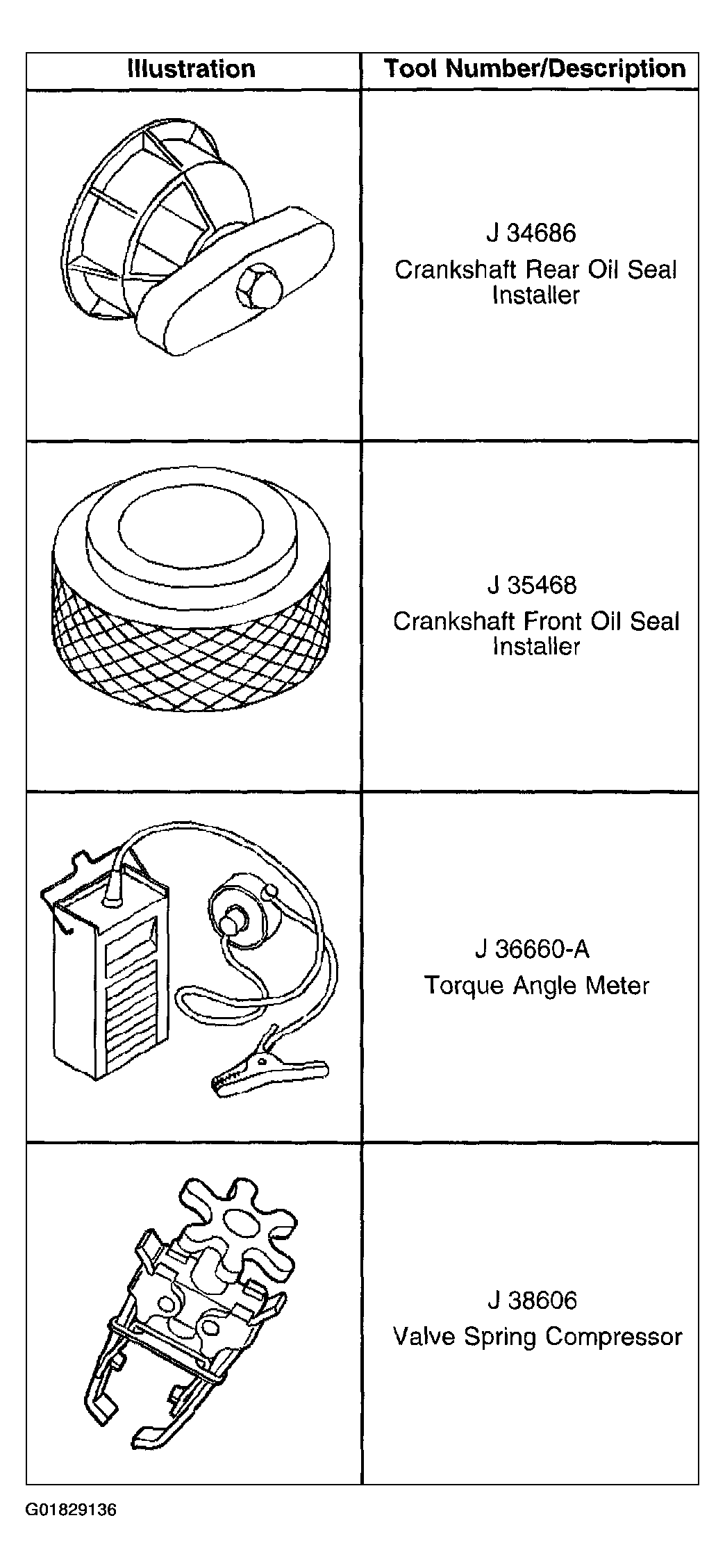

Fig 4: Special Tools & Equipment (4 Of 4)
G01829136Courtesy of GENERAL MOTORS CORP.
