Intake Manifold Removal - Lower

  1. Remove the fuel feed and return pipe retaining clip bolt.
  2. Remove the fuel feed and return pipe retaining clip.

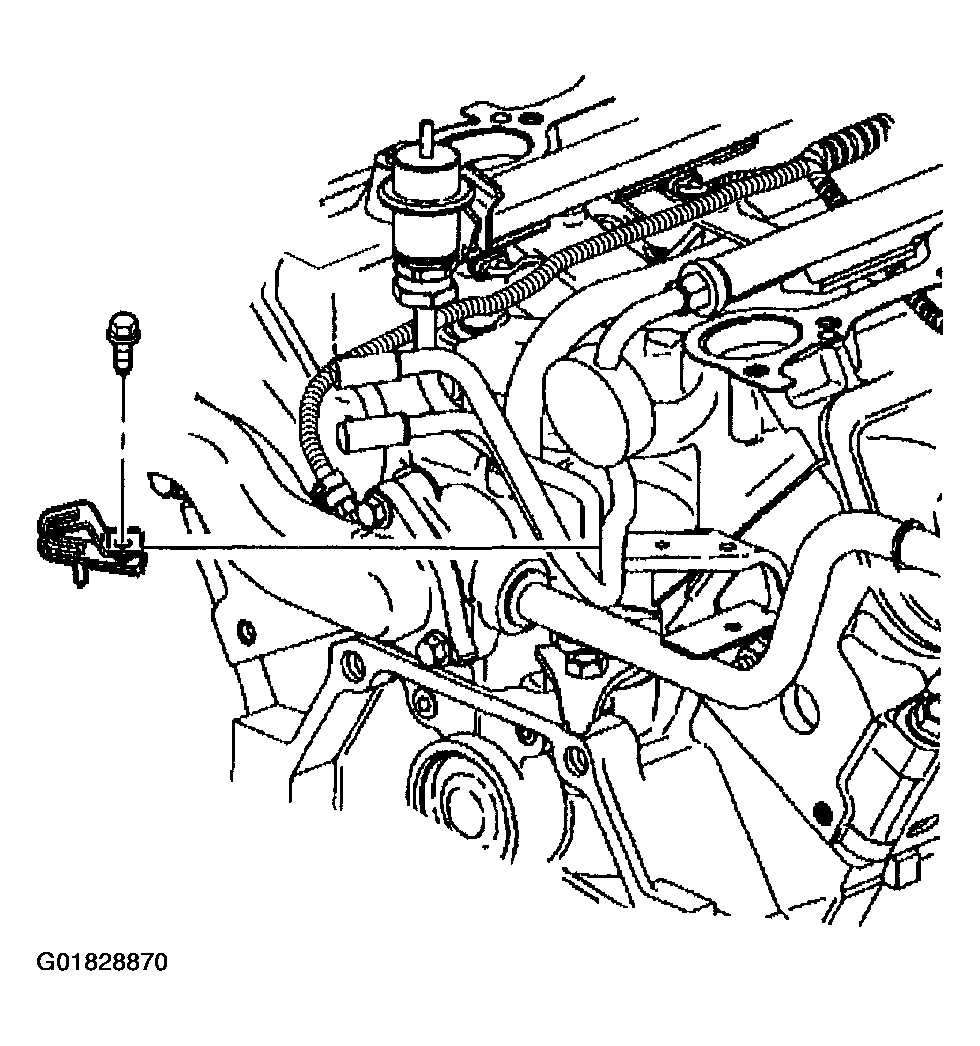

    Fig 1: Fuel Feed & Return Pipe Retaining Clip
    G01828870Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel injector rail bolts.
  4. Remove the fuel injector rail assembly.

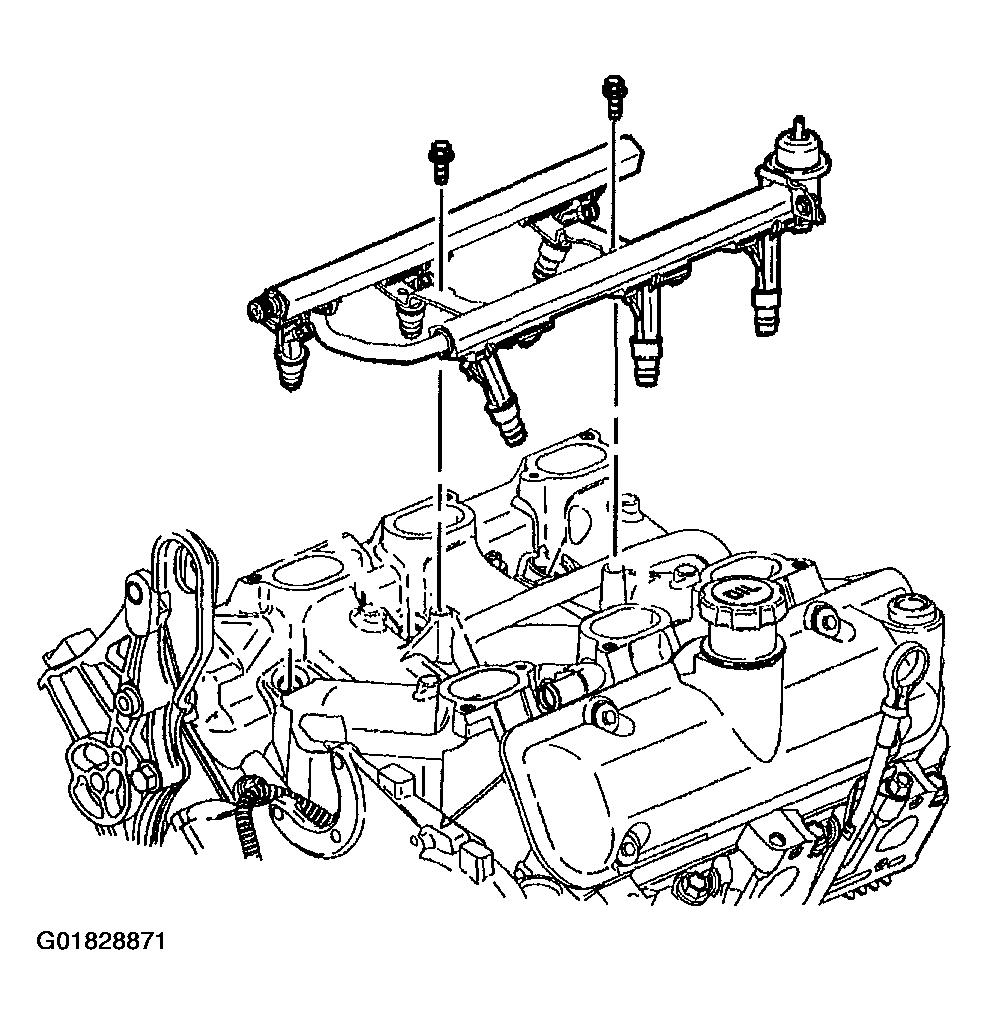

    Fig 2: Fuel Injector Rail Assembly
    G01828871Courtesy of GENERAL MOTORS CORP.
  5. Remove the heater inlet pipe nut.
  6. Remove the heater inlet pipe.

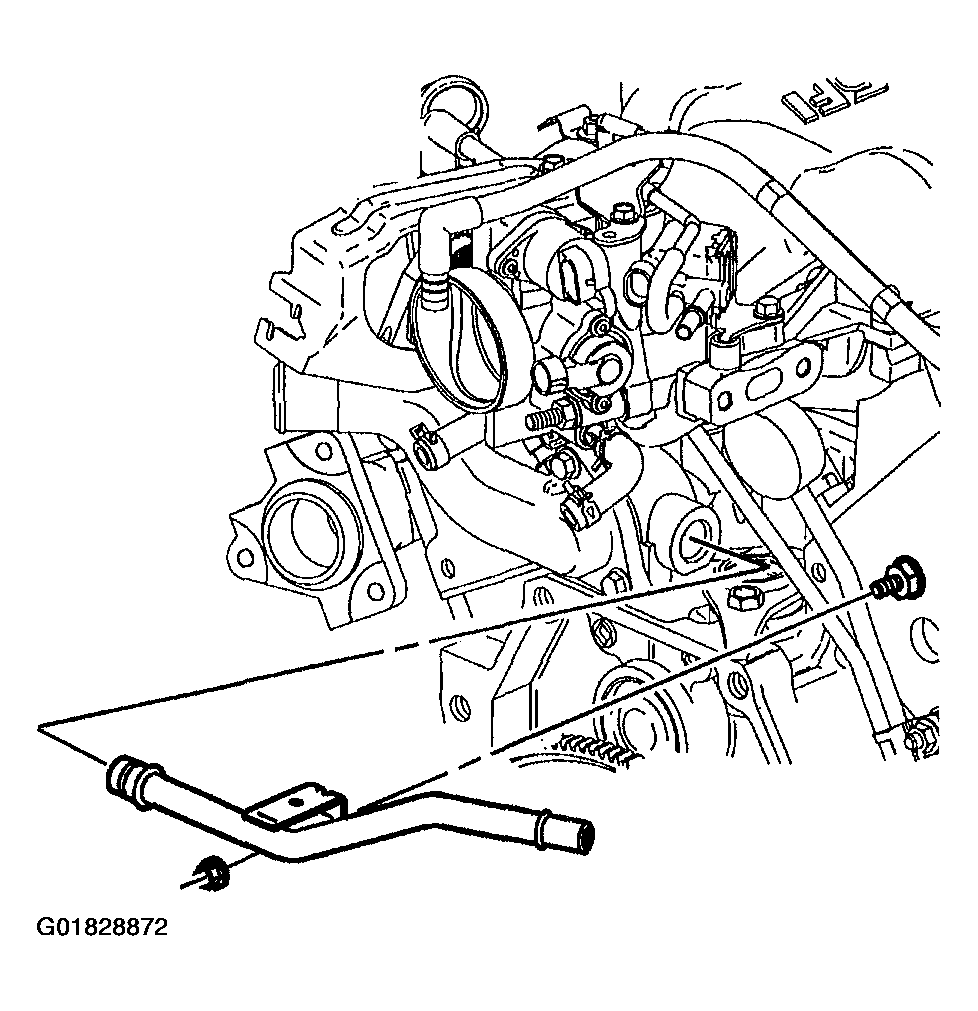

    Fig 3: Heater Inlet Pipe
    G01828872Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower intake manifold bolts.
  8. Remove the lower intake manifold.

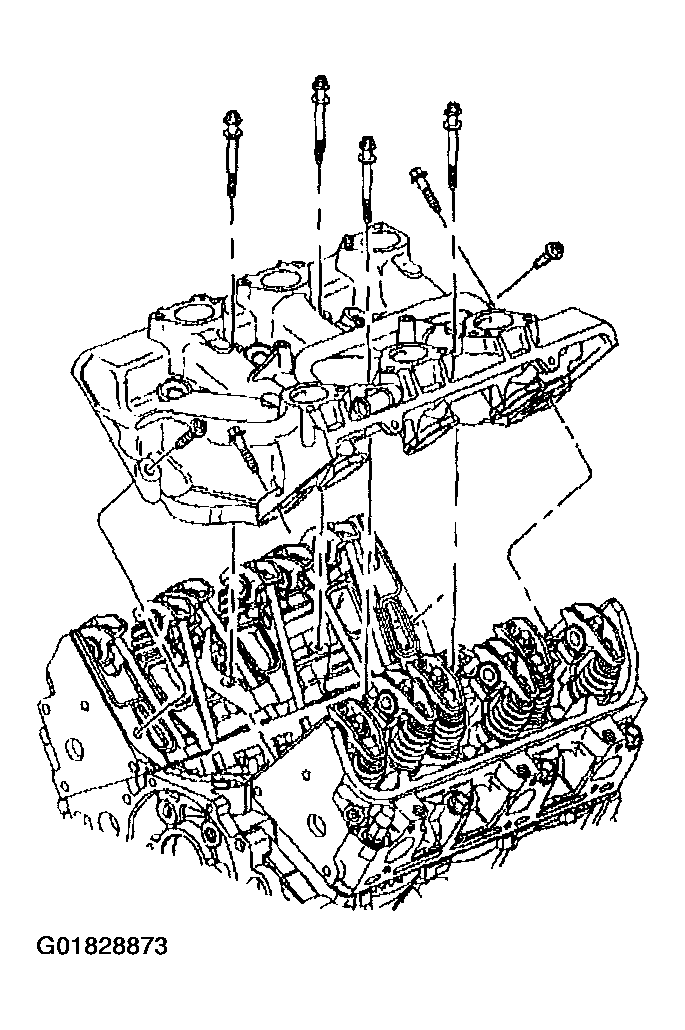

    Fig 4: Lower Intake Manifold
    G01828873Courtesy of GENERAL MOTORS CORP.
