Disassembled Views

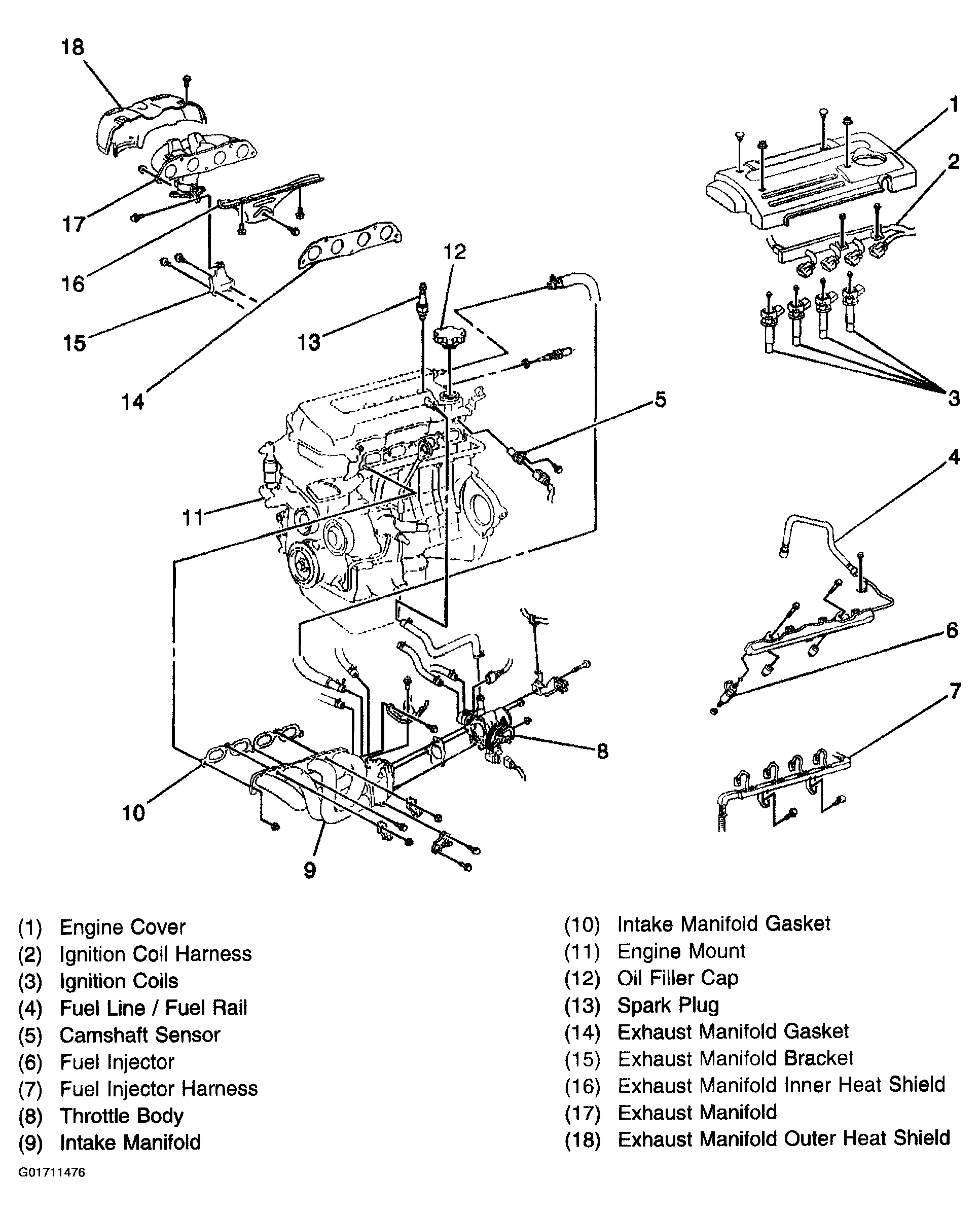

Fig 1: Intake And Exhaust Manifold Components
G01711476Courtesy of GENERAL MOTORS CORP.

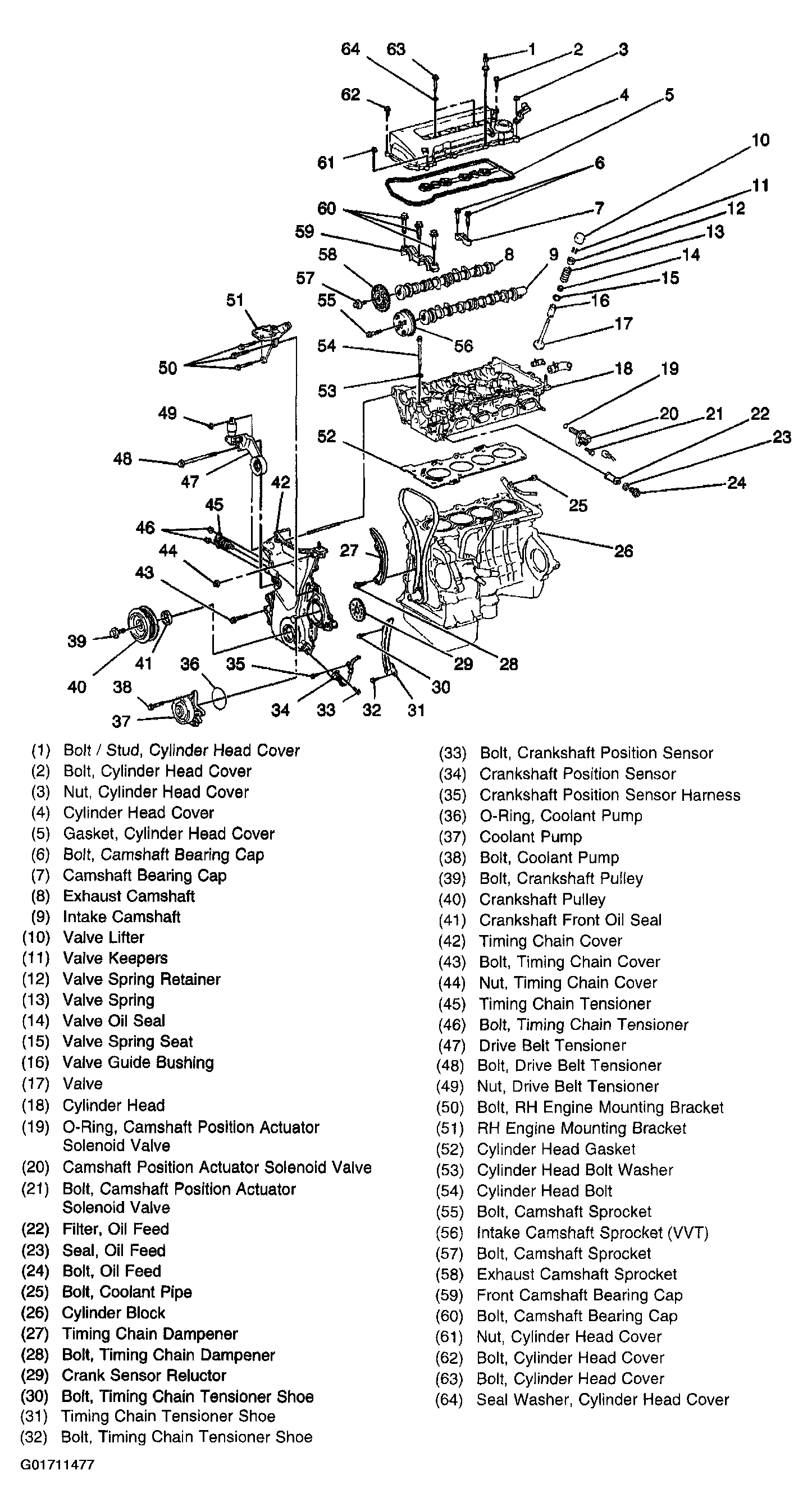

Fig 2: Cylinder Head And Components
G01711477Courtesy of GENERAL MOTORS CORP.

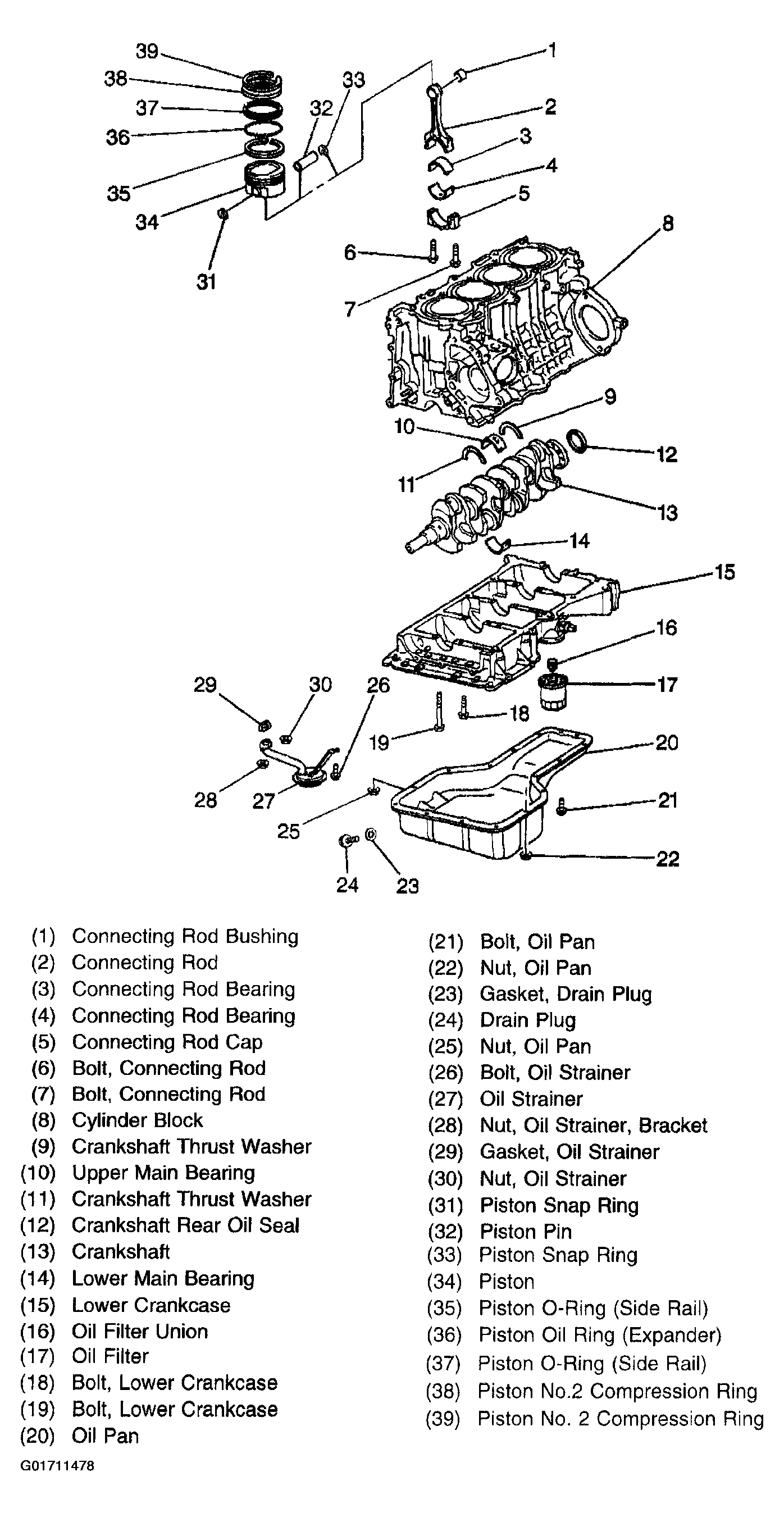

Fig 3: Cylinder Block, Crankshaft, Connecting Rod And Piston Components
G01711478Courtesy of GENERAL MOTORS CORP.

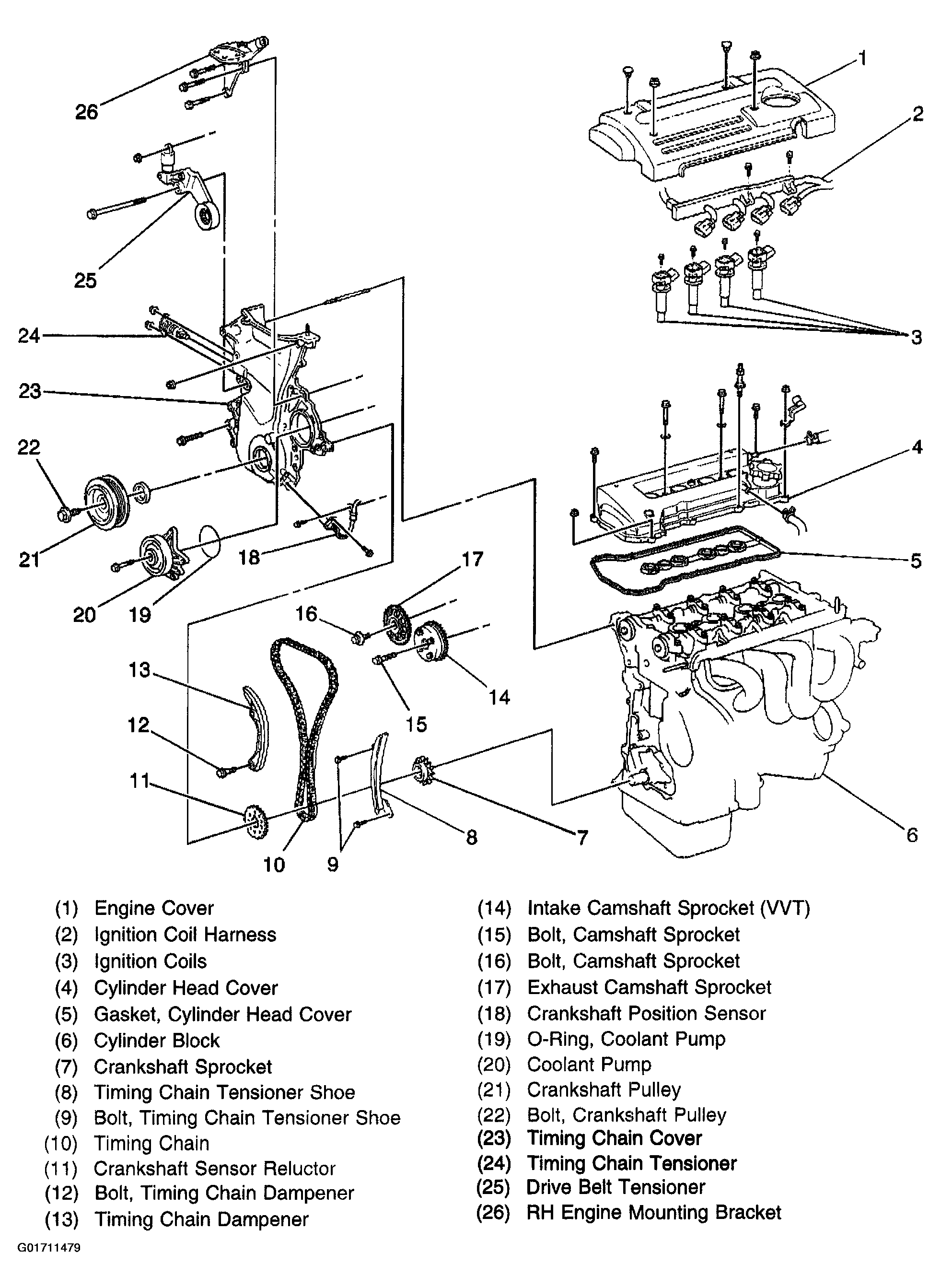

Fig 4: Timing Chain And Housing Components
G01711479Courtesy of GENERAL MOTORS CORP.

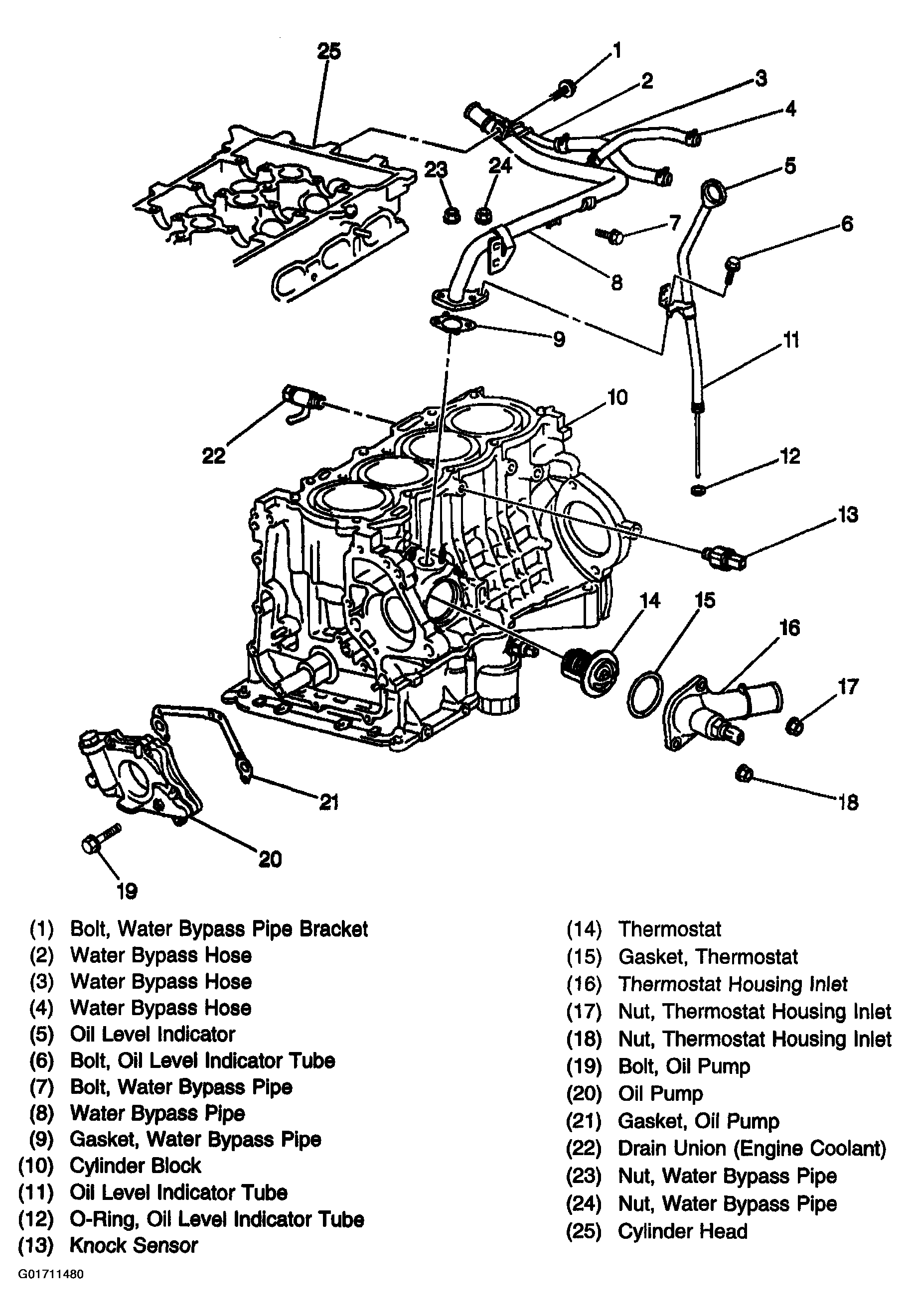

Fig 5: Oil And Cooling System Components
G01711480Courtesy of GENERAL MOTORS CORP.
