Engine Block Plug - Installation

  1. Install the threaded oil gallery plugs. Tighten the oil gallery plugs to 30 N.m (22 ft lbs).

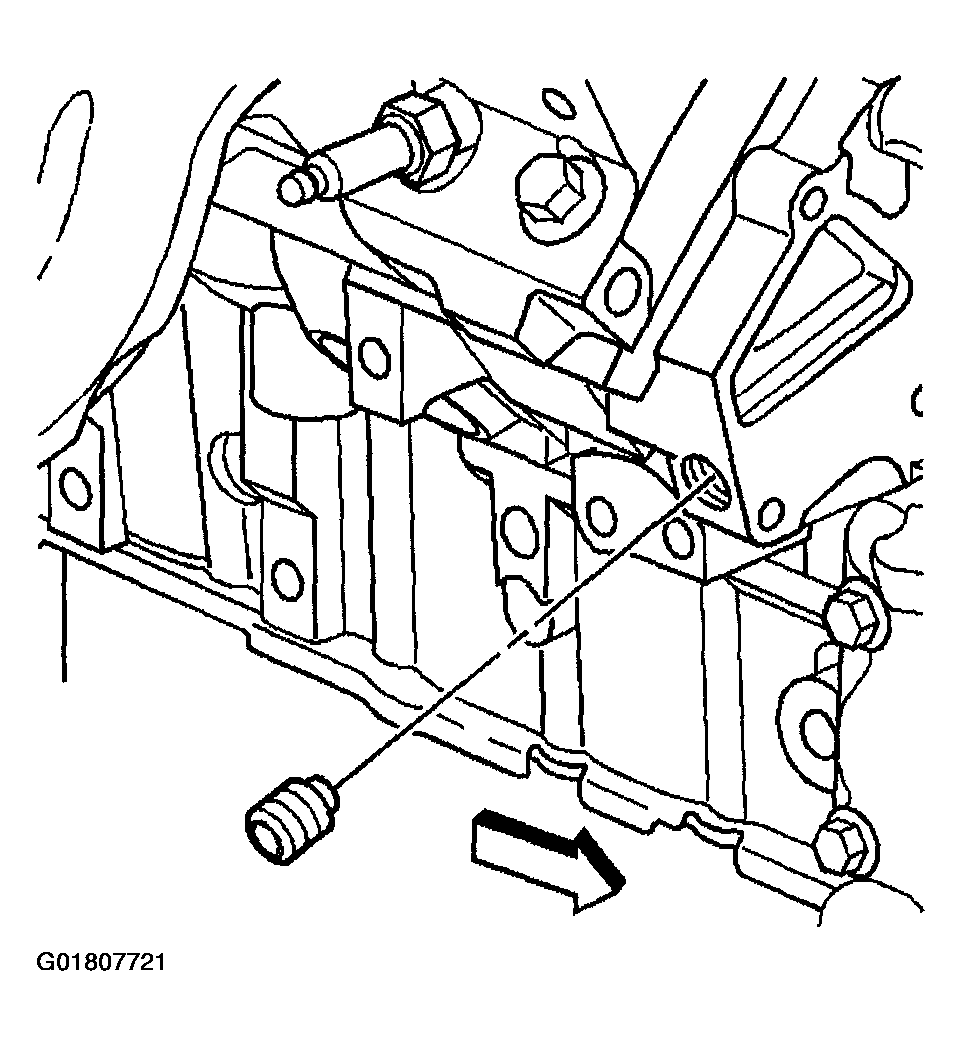

    Fig 1: Engine Block Plug (Side)
    G01807721Courtesy of GENERAL MOTORS CORP.
  2. Install the remaining oil gallery plugs using GM P/N United States 12346004, GM P/N Canada 10953480 or the equivalent.

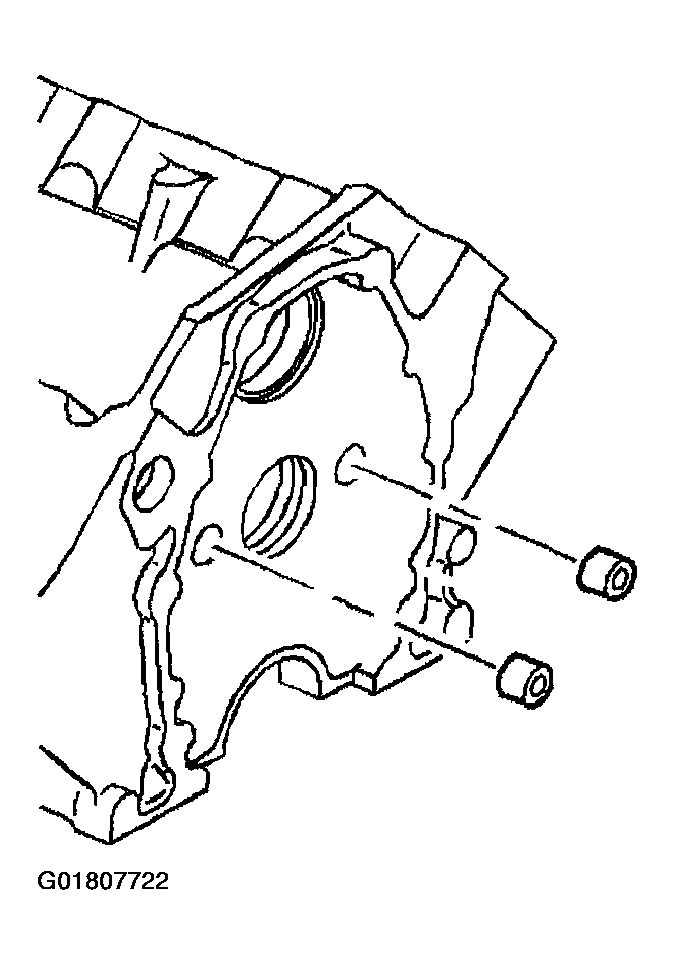

    Fig 2: Engine Block Plug (Front)
    G01807722Courtesy of GENERAL MOTORS CORP.
