Removal Procedure

  1. Remove the front floor console.
  2. Remove the control closeout boot bolts.
  3. Remove the shift control closeout boot.

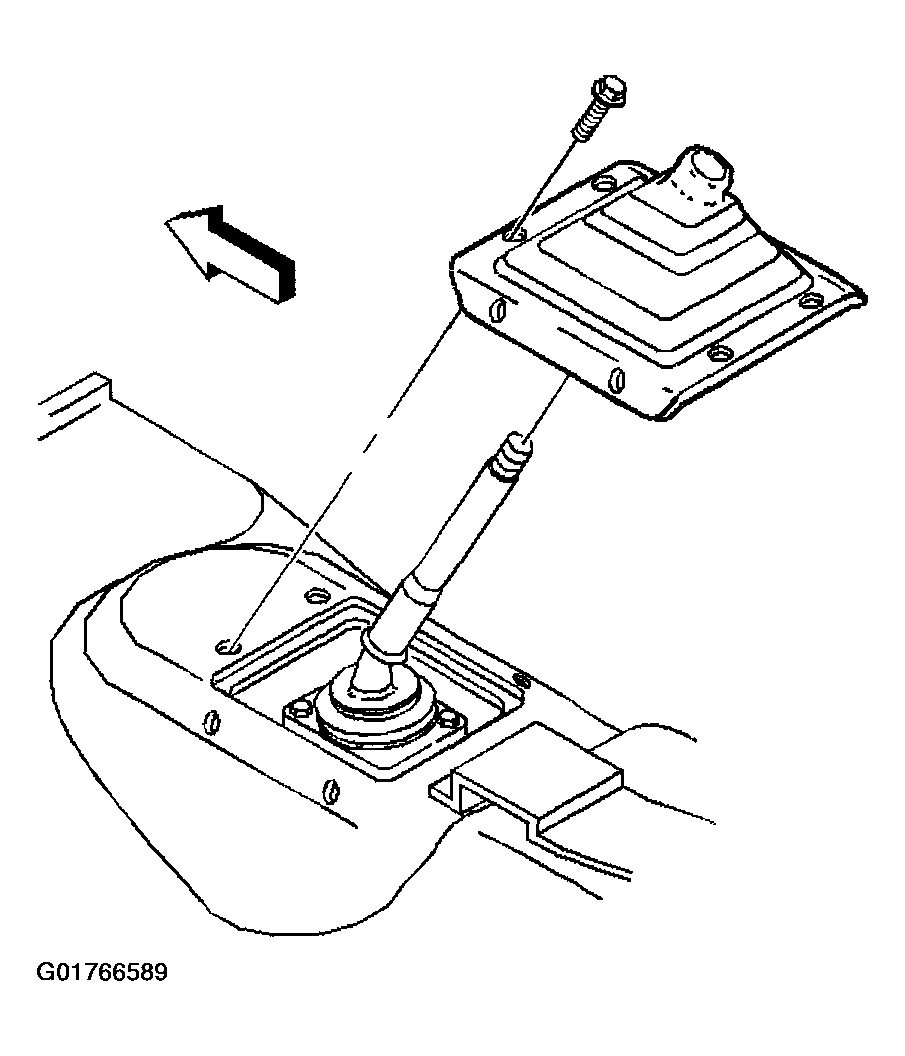

    Fig 1: Removing Control Closeout Boot Bolts
    G01766589Courtesy of GENERAL MOTORS CORP.
