Installation Procedure

  1. Push the boot (2) down to access the control threads.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the shift control knob (1) to the control.

    Tighten

    Tighten the shift control knob to 3 N.m (27 lb in).

  3. Release the park brake.

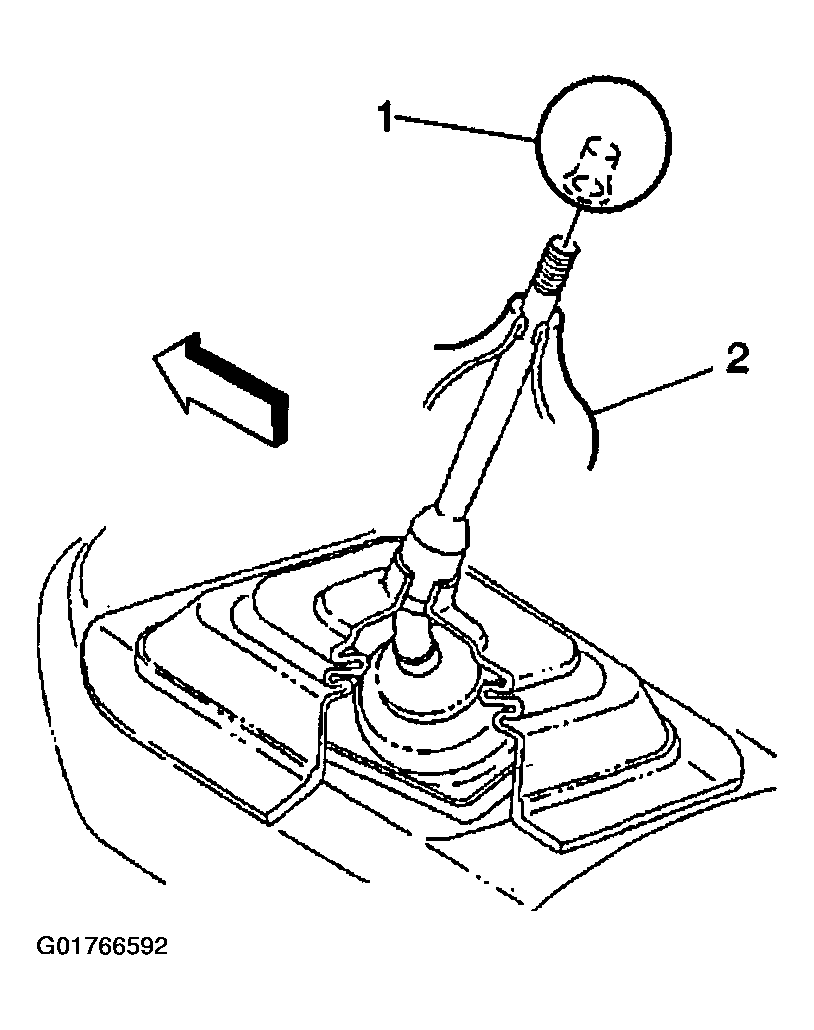

    Fig 1: Installing Shift Control Knob
    G01766592Courtesy of GENERAL MOTORS CORP.
