Removal Procedure

  1. Remove the shift control closeout boot. Refer to Shift Control Shift Closeout Boot Replacement .
  2. Remove the control lever boot retainer (3).
  3. Remove the control lever boot (1) from the control (2).

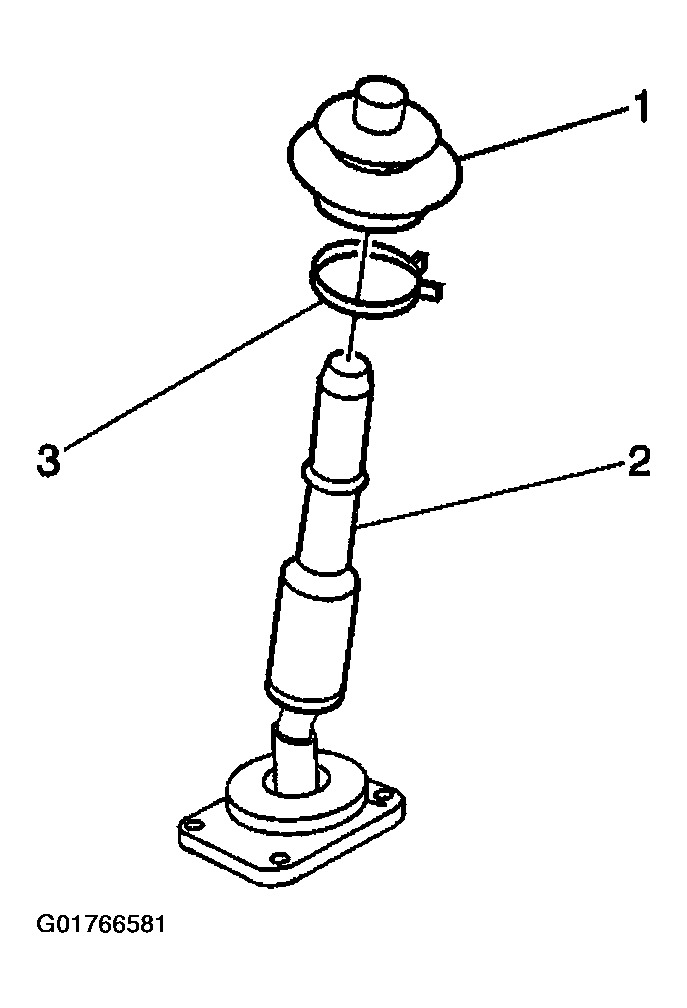

    Fig 1: Removing Control Lever Boot
    G01766581Courtesy of GENERAL MOTORS CORP.
