Installation Procedure

  1. Install the control lever boot (1) to the control (2).
  2. Install the control lever boot retainer (3).
  3. Install the shift control closeout boot. Refer to Shift Control Shift Closeout Boot Replacement .

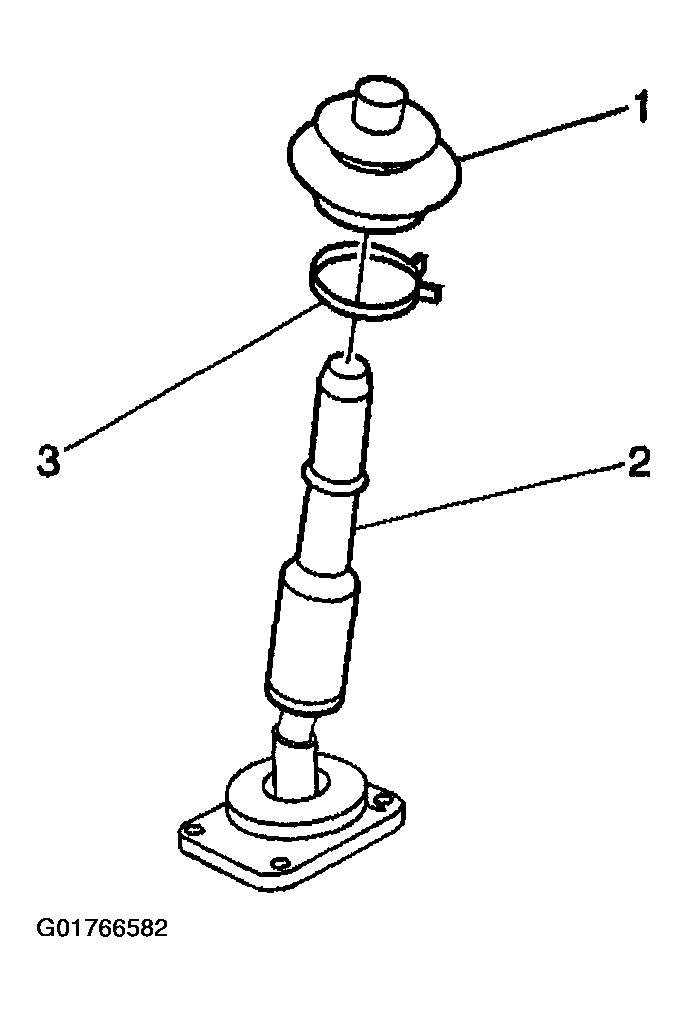

    Fig 1: Installing Control Lever Boot
    G01766582Courtesy of GENERAL MOTORS CORP.
