Removal Procedure

  1. Remove the control lever boot. Refer to Shift Control Boot Replacement .
  2. Remove the transmission control bolts.

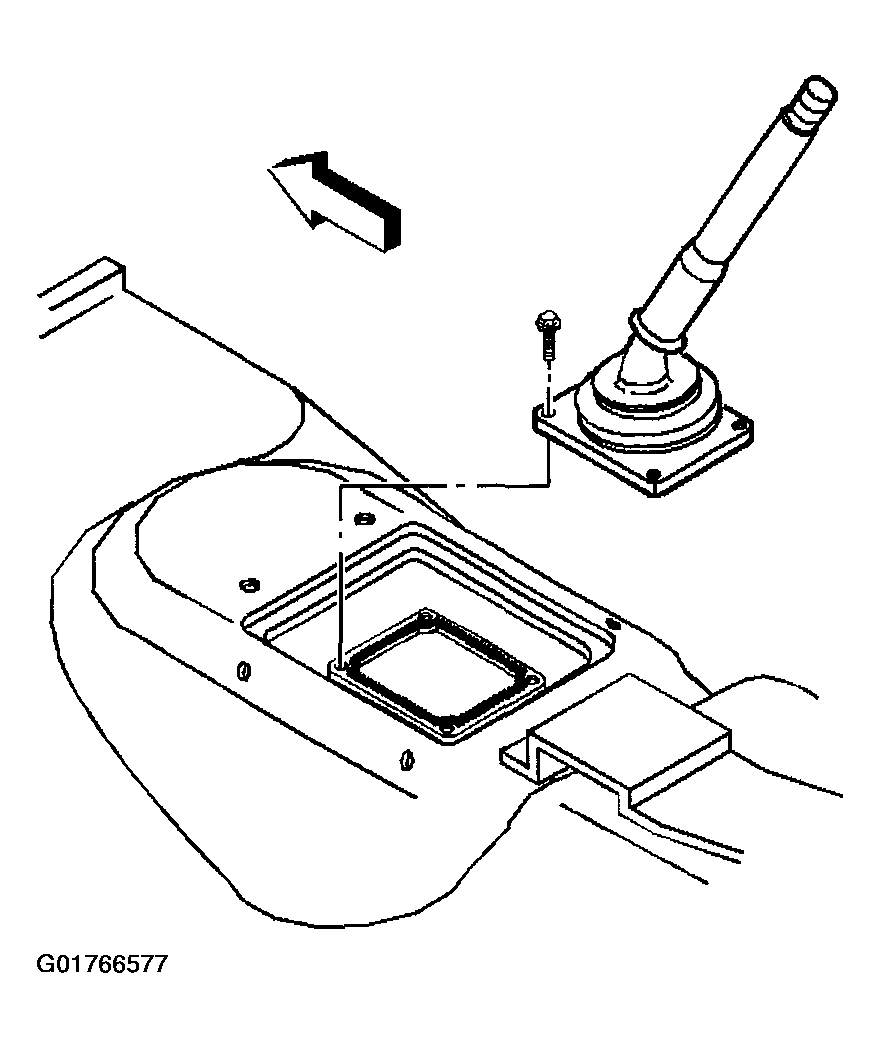

    Fig 1: Removing Transmission Control Bolts
    G01766577Courtesy of GENERAL MOTORS CORP.
  3. Clean the old sealant from the extension housing and the transmission control sealing surface.

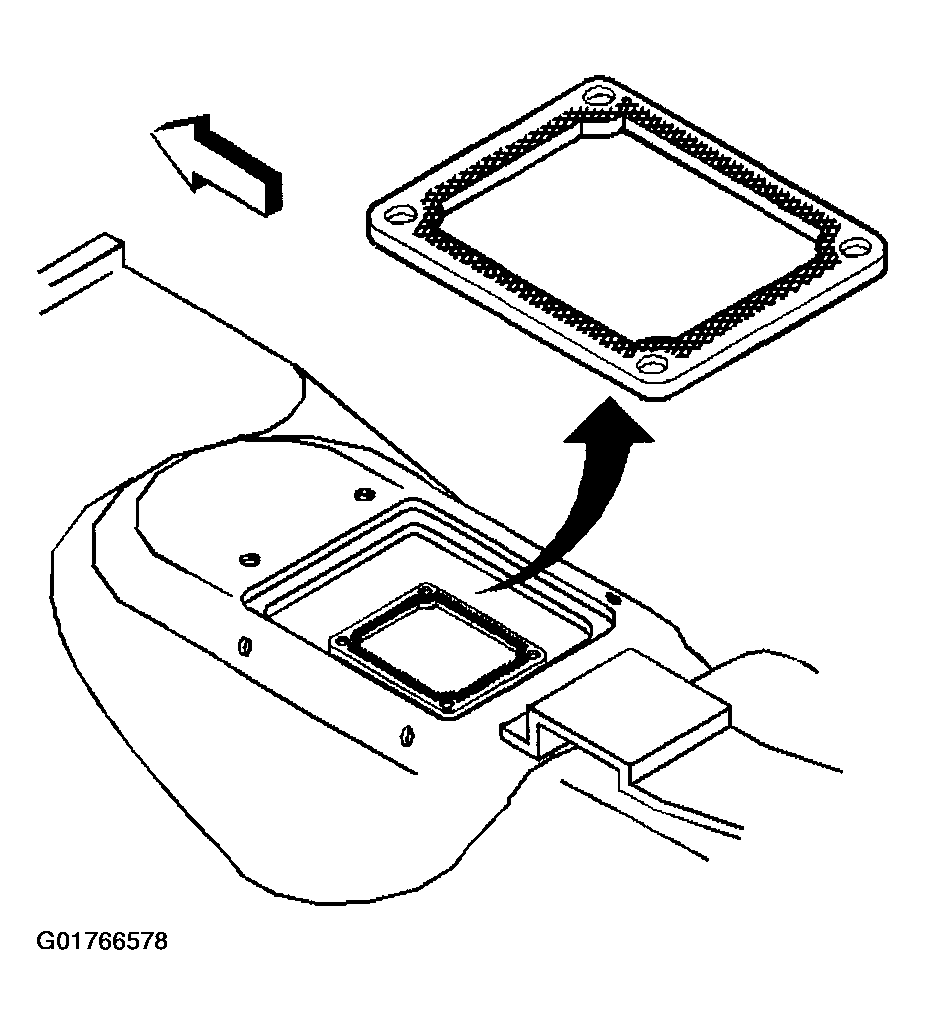

    Fig 2: Cleaning Old Sealant From Extension Housing
    G01766578Courtesy of GENERAL MOTORS CORP.
