Installation Procedure

In order to install the rear headliner to the roof panel perform the following:
1. 1.1. With the aid of an assistant, position the rear headliner to the roof panel.
2. 1.2. Attach the rear headliner to the retaining strips.
3. 1.3. Install the 2 push-in retainers (4) at the front edge of the rear headliner.

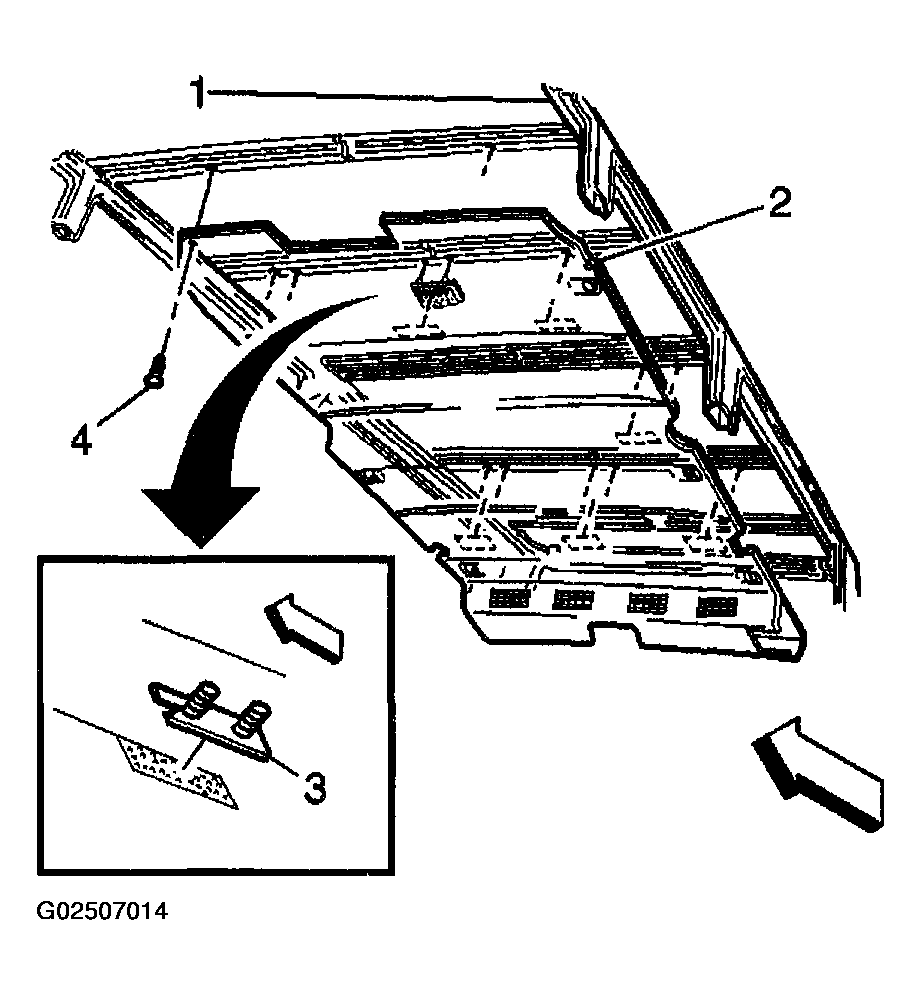

Fig 1: Installing Headliner Assembly
Courtesy of GENERAL MOTORS CORP.
Install the coat hooks. Refer to Coat Hook Replacement .
Install the sliding door track garnish molding. Refer to Garnish Molding Replacement - Sliding Door .
Install the dome lamp to the rear headliner. Refer to DOME & READING LAMP BULB REPLACEMENT in Lighting Systems.
Install the right seat belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - RIGHT FRONT .
Position the front headliner to the roof panel.
Fasten the front headliner to the roof panel, ensuring that the retaining strips are fully engaged.
Install the front side door opening frame garnish molding. Refer to Garnish Molding Replacement - Side Door Opening Frame .

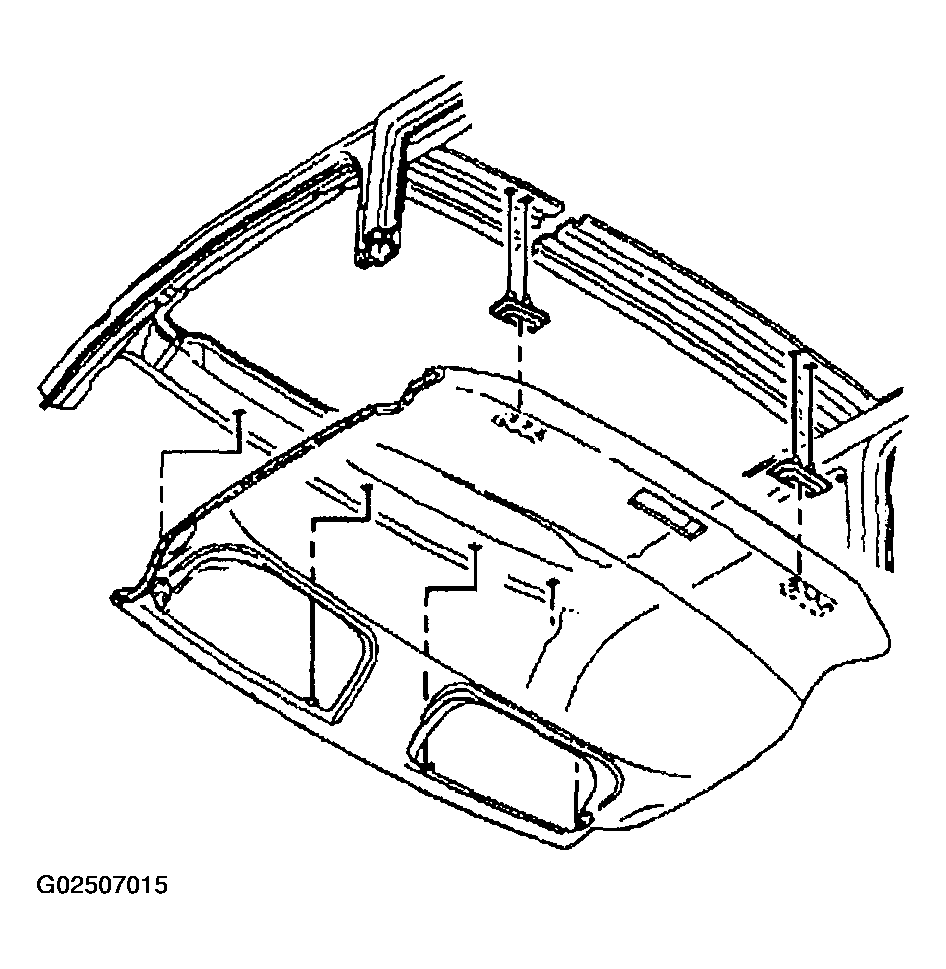

Fig 2: Installing Overhead Console & Trim Assembly
Courtesy of GENERAL MOTORS CORP.
Refer to the following procedures in order to install the necessary moldings:
- Trim Replacement - Fourth Pillar Right
- Trim Replacement - Fourth Pillar Left
- Trim Replacement - Third Pillar Right
- Trim Replacement - Third Pillar Left
- Garnish Molding Replacement - RF Lock Pillar
- Garnish Molding Replacement - LF Lock Pillar
- Garnish Molding Replacement - Rear Upper
- Install the overhead console. Refer to Console Replacement - Overhead .
- Install the sunshades. Refer to Sunshade Replacement .
