Wiring Diagrams

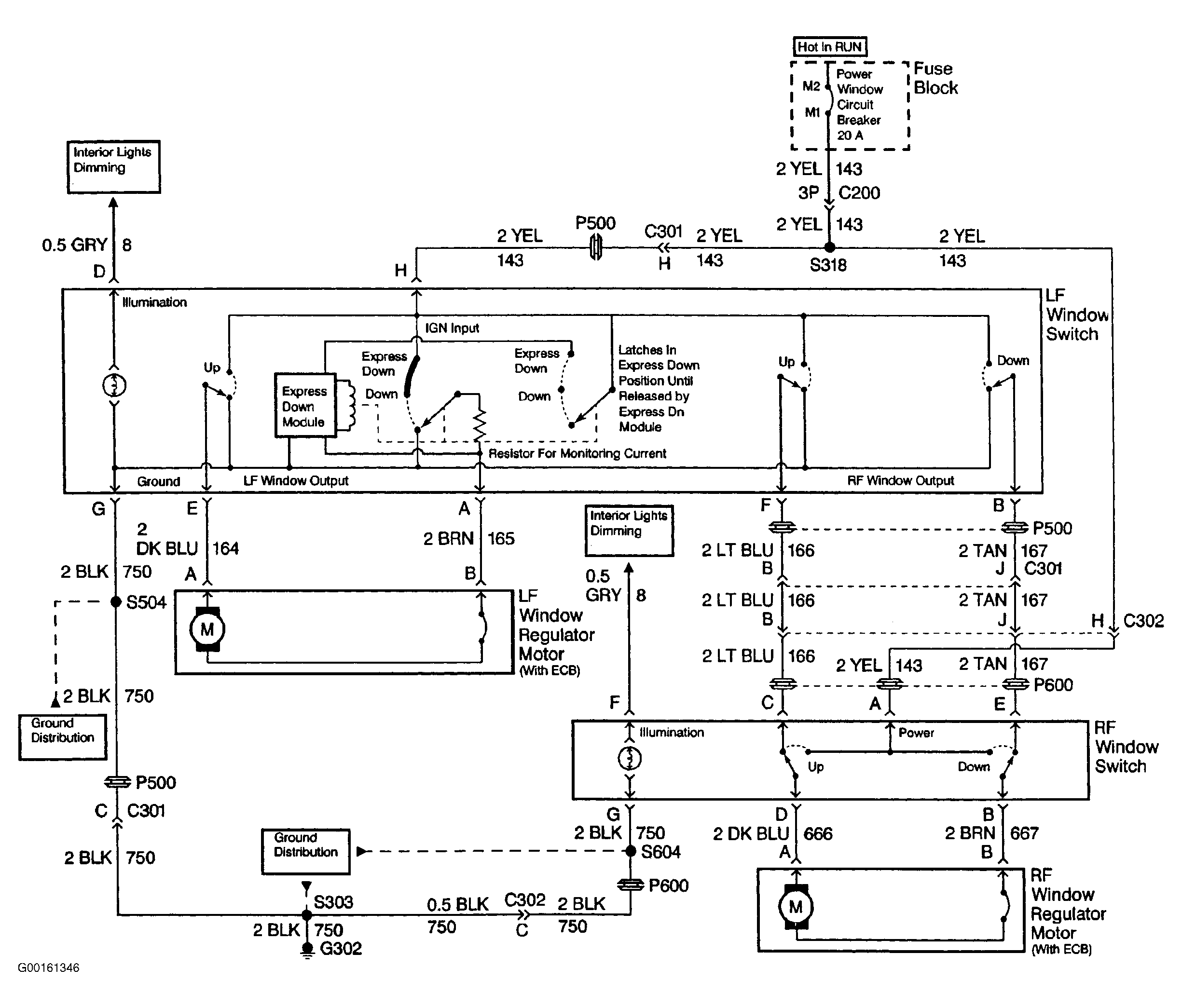

Fig 1: Power Windows Wiring Diagram (2-Door)
G00161346Courtesy of GENERAL MOTORS CORP.

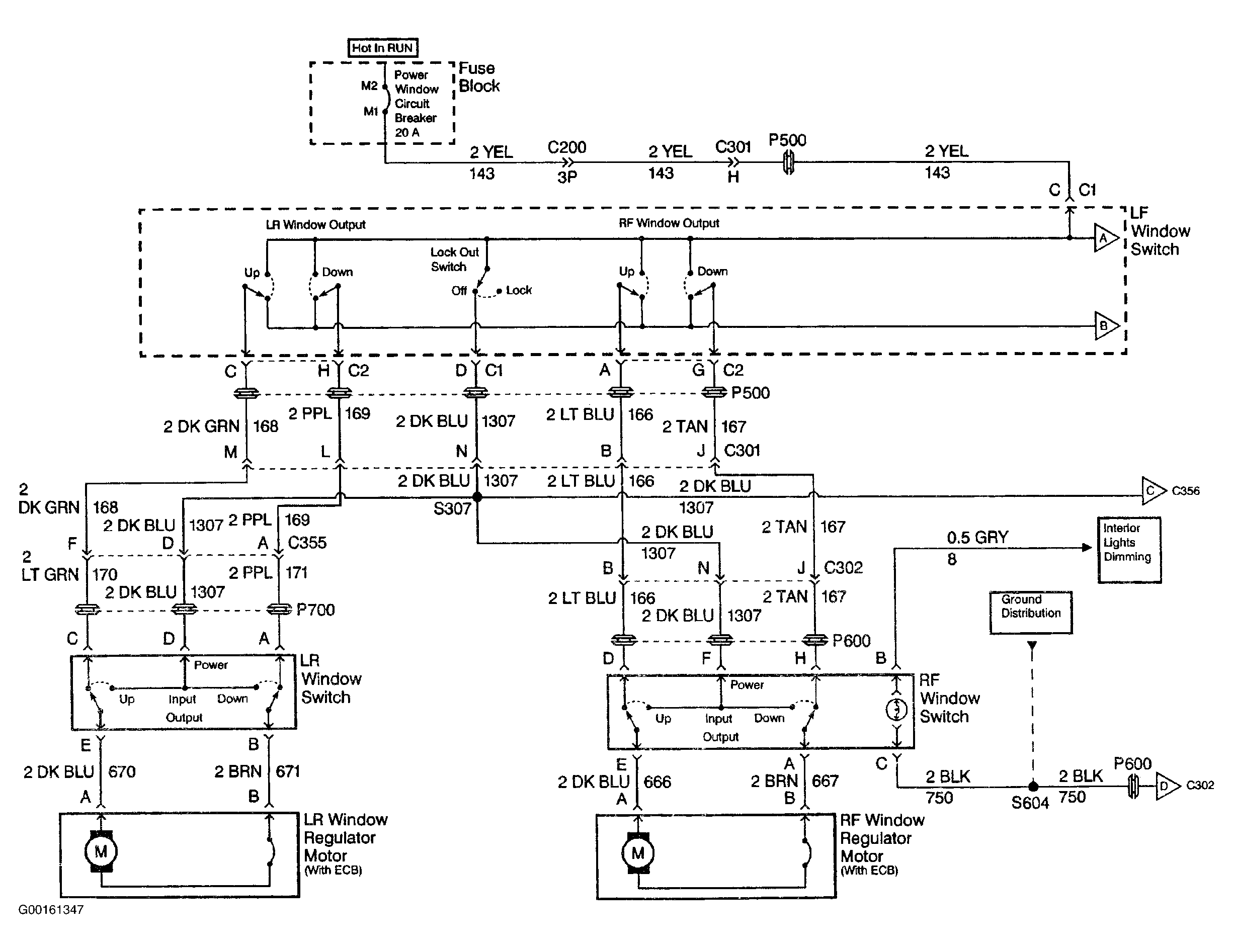

Fig 2: Power Window Wiring Diagram (4-Door - 1 Of 2)
G00161347Courtesy of GENERAL MOTORS CORP.

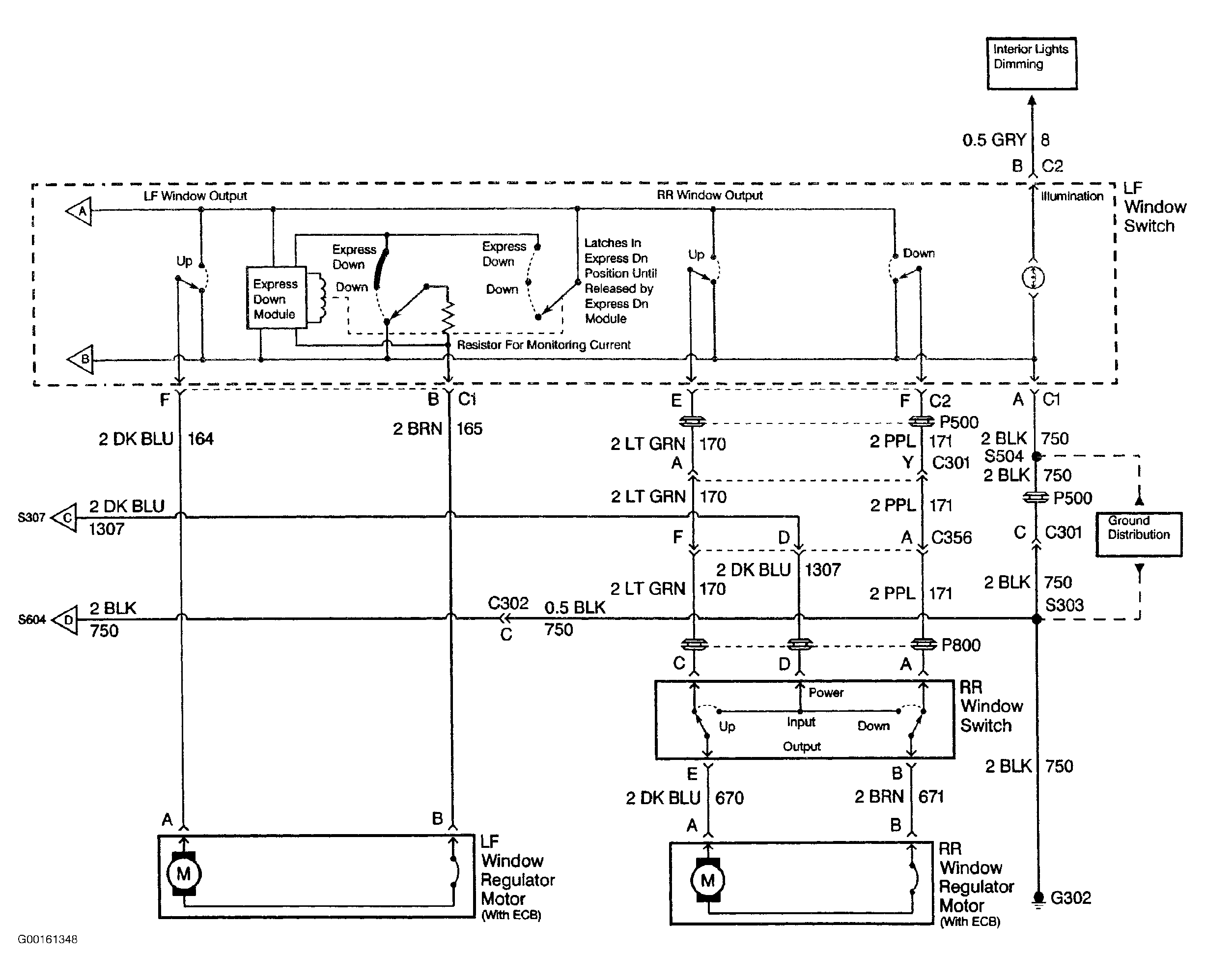

Fig 3: Power Window Wiring Diagram (4-Door - 2 Of 2)
G00161348Courtesy of GENERAL MOTORS CORP.
