DTC B2957 Security System Sensor Data Circuit Low: Notes

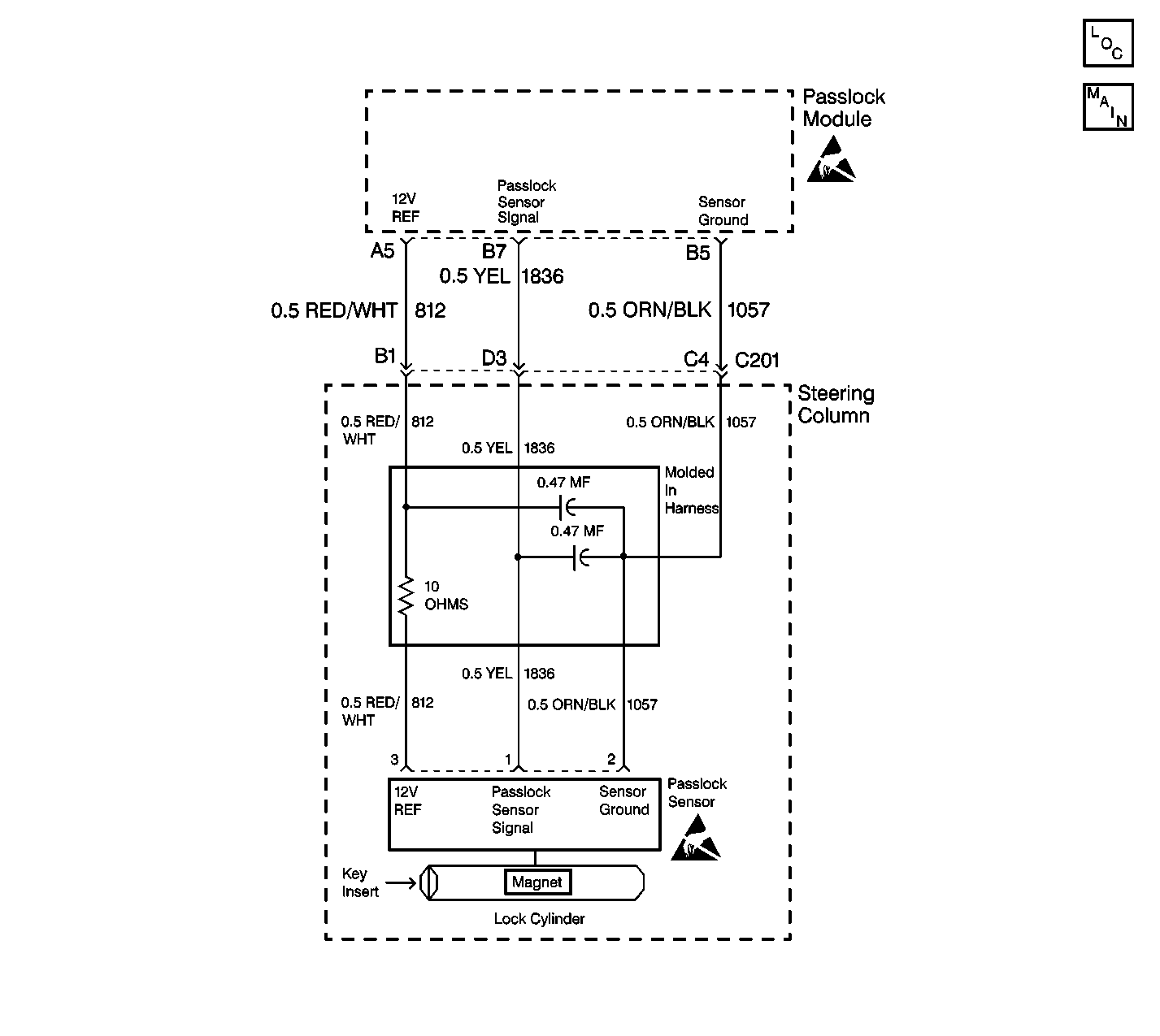

Fig 1: Column/Passlock Sensor Schematic

GM381483
