Daytime Running Lamps (DRL) Control Module C2

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

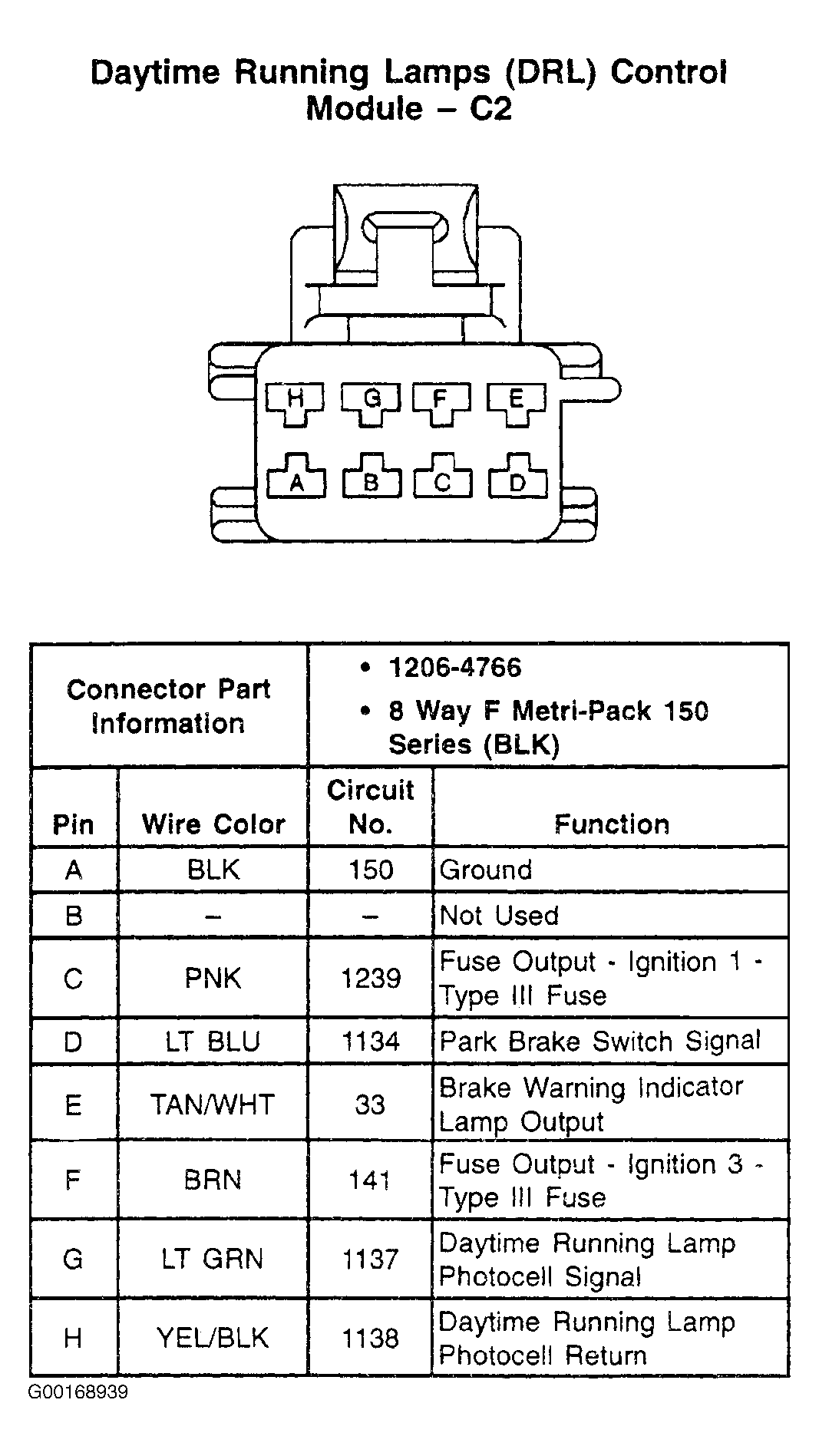

Fig 1: Daytime Running Lamps (DRL) Control Module C2 - 8-Pin Connector (Black)
G00168939Courtesy of GENERAL MOTORS CORP.
