Test C: Scan Tool Will Not Communicate With Anti-Theft Data Line

For testing procedure, refer to flowchart. See Fig 1 .

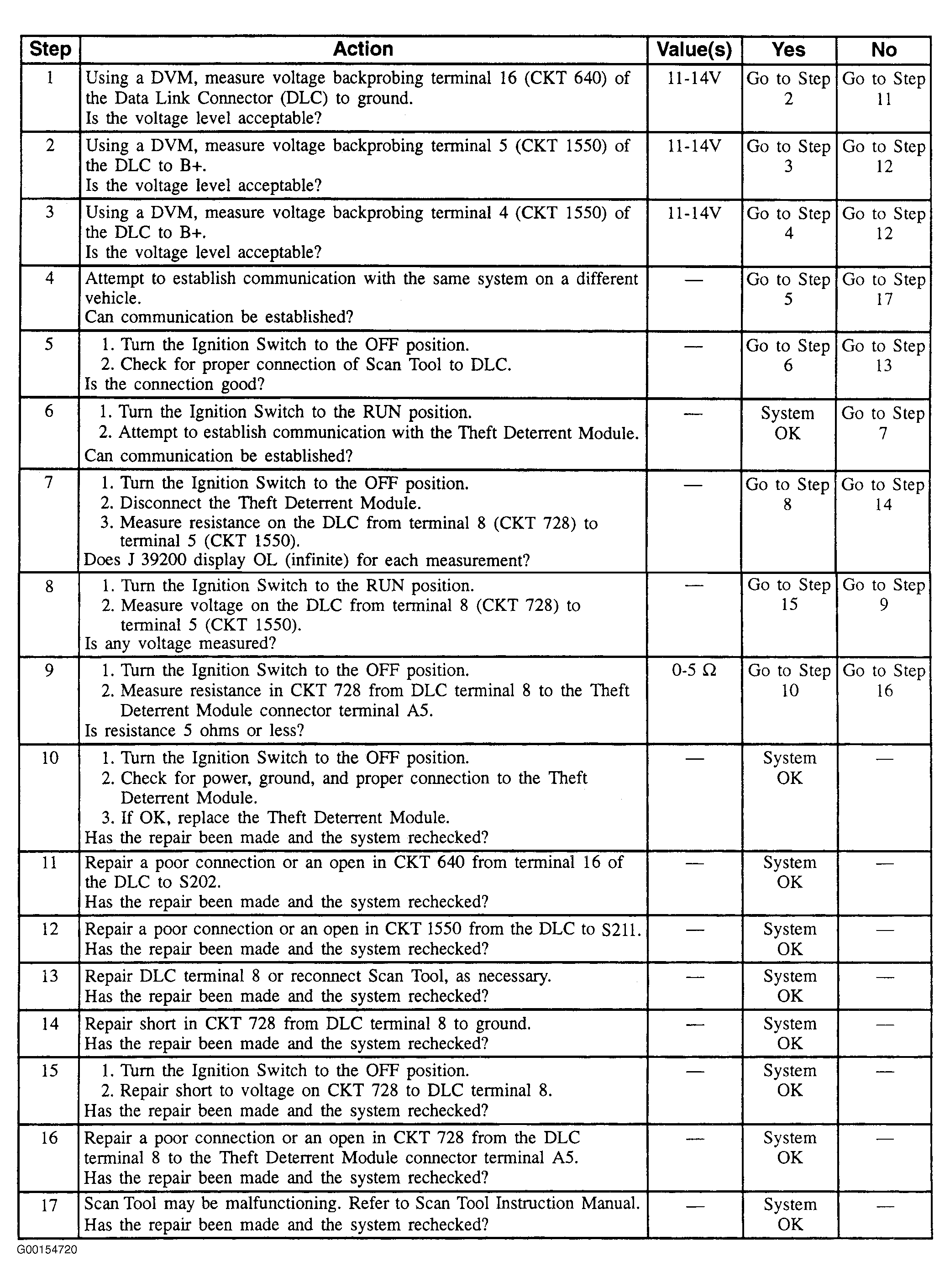

Fig 1: Scan Tool Will Not Communicate With Anti-Theft Data Line Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
